TUP900

Quick Setup Guide

Thank you for choosing Star Micronics as your provider for printing solutions.

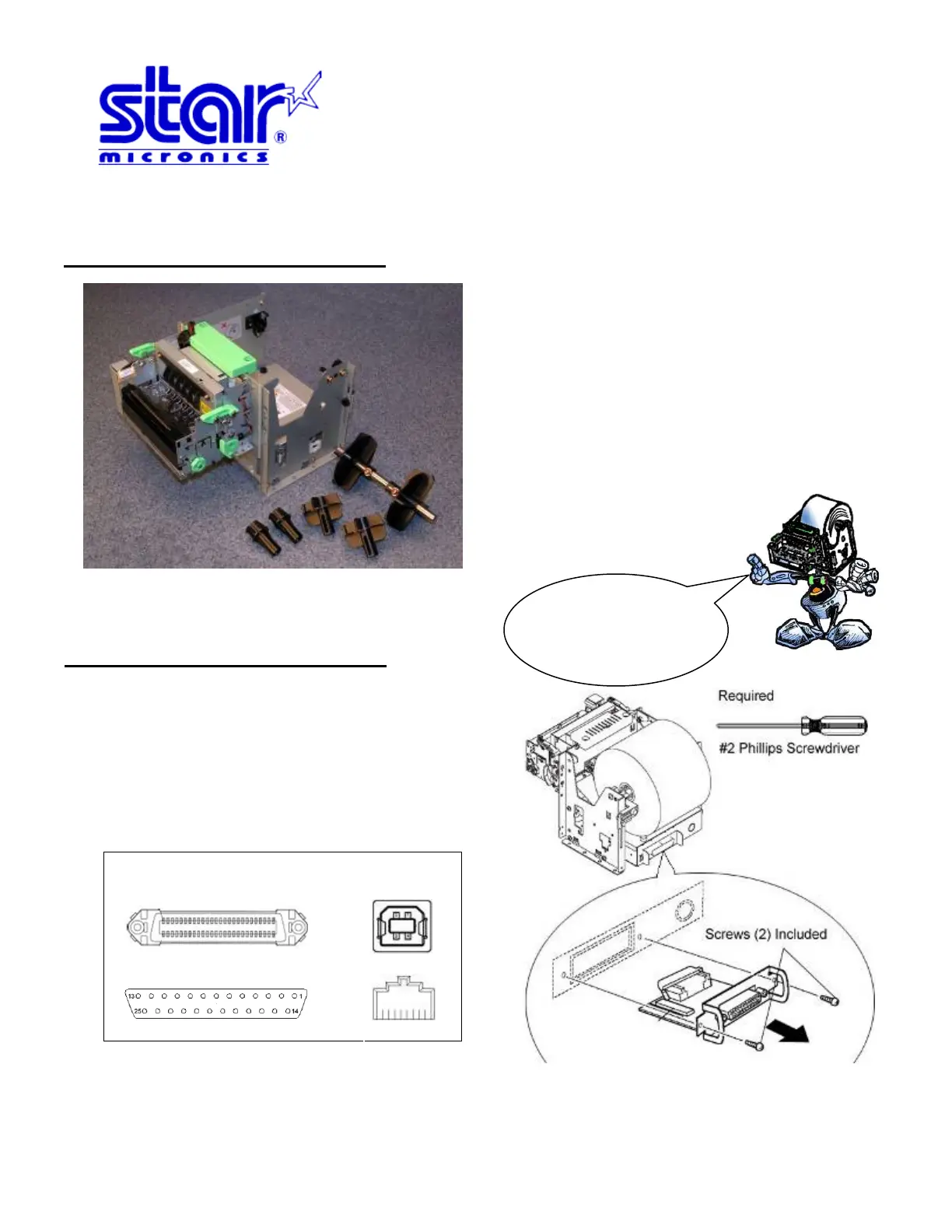

Unpacking the Unit

Contents

a. Printer

b. Paper Shaft

c. 1” Paper Core Adapter

d. 2” Paper Core Adapter

e. 3” Paper Core Adapter

f. Shaft Weight*

g. Interface Mounting Screws(2)*

h. Paper Core Adapter Screws(2)

*Not Pictured

Assembly – Installing the Interface

Place the interface sub-assembly into the

interface slot as shown. Take care to be sure the

interface cartridge is seated properly into its

connector.

Using a #2 Phillips screwdriver, install the

mounting screws included with the printer.

Interface Type…

Parallel

Serial

USB

Ethernet

Starski says, “Place

unused parts in a

safe place for later

use.”

Assembly – Paper Roll Setup

It is necessary to adjust the paper roll holder for the width of the paper you use. If the setting position is incorrect, the

paper roll will be supplied improperly to the mechanism which in turn causes paper transport problems. Thus, it is should

be properly adjusted.

The following table shows the paper roll

holder and paper core inner diameter range.

Paper roll Holder

Types

Paper Core

Diameter Ranges

Paper roll Holder (1) 25.4 mm ± 1

Paper roll Holder (2) 50.8 mm ± 1

Paper roll Holder (3) 76.2 mm ± 1

Note 1) The unit is assembled for 1 inch paper

cores when shipped from the factory. Also, it is set

for a paper width of 111.5 ±0.5 (take-up width of

112 +0.5/-1) when the printer is shipped from the

factory.

Roll Holder Size Paper Thickness

1” or 25.4 mm 65 to 100 µm

2” or 50.8 mm 100 to 150 µm

3” or 76.2 mm 100 to 150 µm

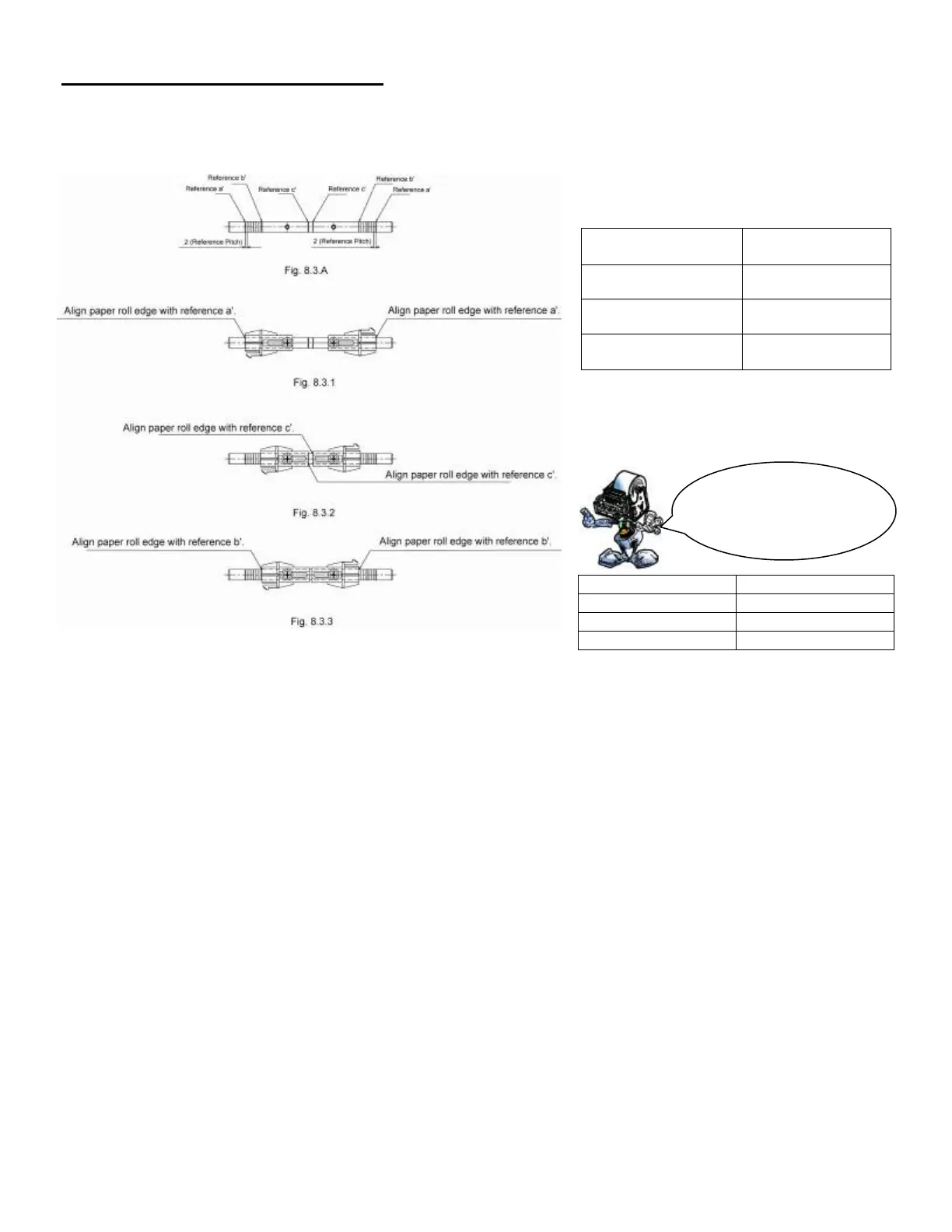

8.3 A

is a reference for the paper roll holder unit paper roll shaft position. Adjust or mount the paper roll holder unit for

the core diameter and width of the paper you intend to use.

8-3-1 Handling 111.5 mm Paper Width

See Fig. 8.3.1 for the paper roll holder setting position to handle paper widths of 111.5 ±0.5 mm.

Position the edge of the paper roll holder onto the central position of the references a and a'.

See the figure to assembly at the correct position.

Note 1) The paper roll holder is assembled to that position when shipped from the factory.

8-3-2 Handling 82 mm Paper Width

See Fig. 8.3.2 for the paper roll holder setting position to handle paper widths of 82 ±0.5 mm.

Position the edge of the paper roll holder onto the central position of the references c and c'.

See the figure to assembly at the correct position.

Note 1) In this case, be careful because the edge of the paper roll holder positioned on the reference is the opposite.

8-3-3 Handling 79.5 mm Paper Width

See Fig. 8.3.3 for the paper roll holder setting position to handle paper widths of 79.5 ±0.5 mm.

Position the edge of the paper roll holder onto the central position of the references b and b'.

See the figure to assembly at the correct position.

Starski says, “The size of

the core used is related

to the thickness of the

paper used.”
