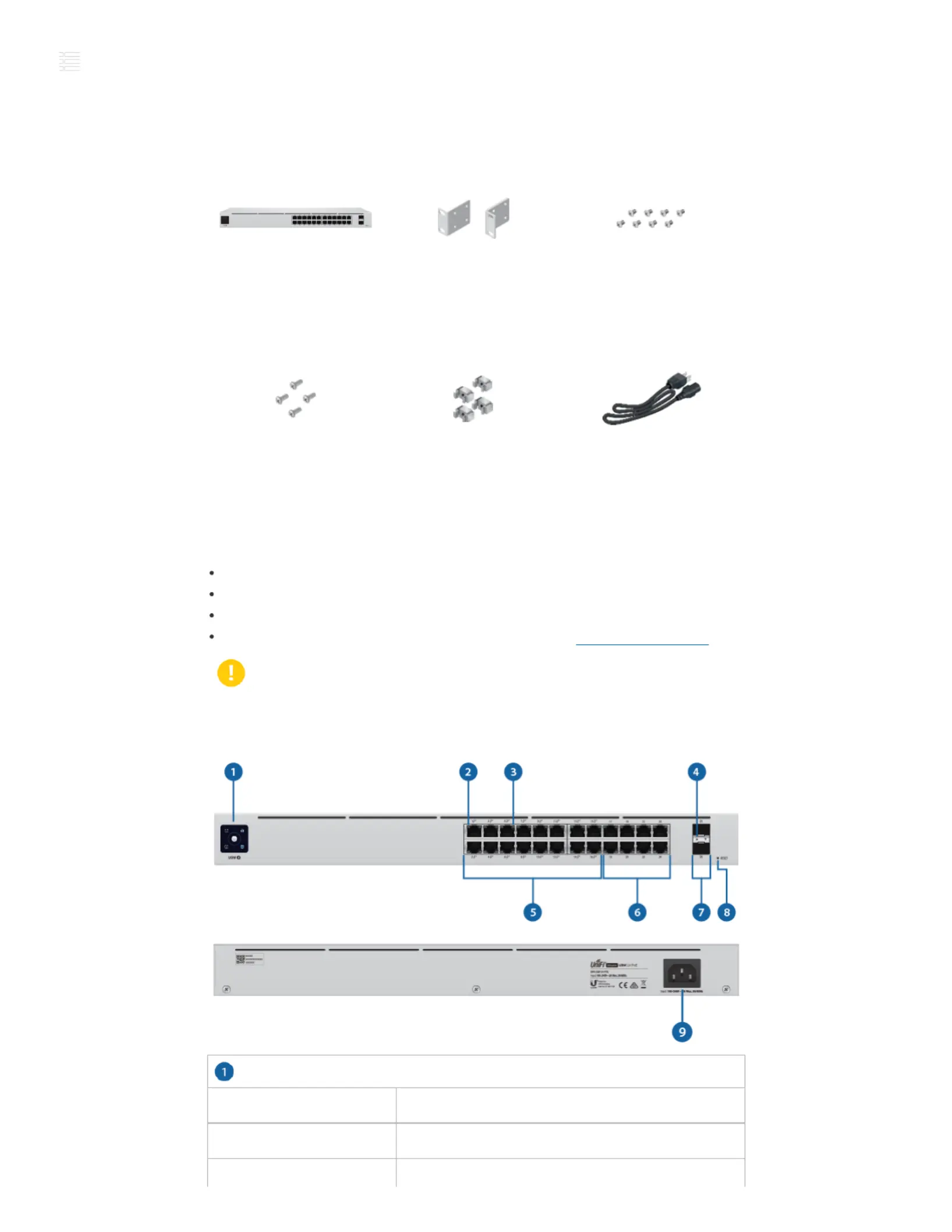

UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Touchscreen Display

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.11.x (or newer), available at: ui.com/download/unifi

IMPORTANT: We strongly recommend using UPS backup and power regulation

to prevent equipment damage due to stability issues with local AC power.

Hardware Overview

Bootup Animation Initializing.

Steady White Factory defaults, waiting for adoption.

USW-24-POE Quick Start Guide

RJ45 PoE LED (Ports 1 - 16)

RJ45 Speed/Link/Activity LED (Ports 1 - 24)

SFP Speed/Link/Activity LED (Ports 25 - 26)

RJ45 (Ports 1 - 16)

RJ45 (Ports 17 - 24)

SFP (Ports 25 - 26)

Reset Button

Power Port

Location Animation

This indicates that you clicked Locate in the UniFi

Controller software. The software will also display the

location of the device on the map.

Off No PoE

Amber 802.3af/at PoE

Off No Link

Amber

Link Established at 10/100 Mbps

Flashing Indicates Activity

Green

Link Established at 1000 Mbps

Flashing Indicates Activity

Off No Link

Green

Link Established at 1 Gbps

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at PoE output.

RJ45 ports support 10/100/1000 Ethernet connections.

Hot-swappable SFP ports support 1 Gbps connections.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds.

Connect the included Power Cord to the Power port.

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor

use.

For outdoor applications, shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded through the AC ground of the

power supply.

USW-24-POE Quick Start Guide

Produkt Specifikationer

Mærke:	Ubiquiti Networks
Kategori:	Skifte
Model:	USW-24-POE
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	442.4 mm
Dybde:	200 mm
Højde:	43.7 mm
Vægt:	3000 g
Produktfarve:	Sølv
Formfaktor:	1U
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Driftstemperatur (T-T):	-5 - 40 °C
Certificering:	CE, FCC, IC
Netværksstandarder:	IEEE 802.3af, IEEE 802.3at
LED-indikatorer:	Activity, Link, PoE, Speed, System
Harmoniseret systemkode (HS):	85176990
DC indgangsspænding:	44 - 57 V
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ja
Switch-type:	Administreret
Switch lag:	L2/L3
Total Power over Ethernet (PoE):	92 W
Power over Ethernet plus (PoE+) porte, antal:	16
Power over Ethernet (PoE) effekt pr. port:	32 W
Spanning tree protokol:	Ja
Auto MDI/MDI-X:	Ja
VLAN understøttelse:	Ja
Flowkontrol support:	Ja
Port-spejlning:	Ja
Basis omskiftning RJ-45 Ethernet porte, antal:	24
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
MAC adresselabel:	- entries
Switch kapacitet:	52 Gbit/sek.
Gennnemløb:	26000 Mpps
Jumbo Frames support:	Ja
Stativ-montering:	Ja
Antal SFP modulslots:	2
Strømforsyning inkluderet:	Ja
Hastighed for videresendelse:	38.69 Mpps
Statisk rute:	Ja
Godkendelsestype:	IEEE 802.1x, RADIUS
