1. Please make sure to turn o the power before starting the installation.

2. Installation must be performed by a qualiﬁed electrician.

3. The light source of this luminaire is not replaceable; when the light source

reaches its end of life the whole luminaire shall be replaced.

4. The external ﬂexible cable or cord of this luminaire cannot be replaced; if

the cord is damaged, the luminaire shall be destroyed.

5. Proper grounding should be ensured throughout the installation.

6. Terminal block not included.

7. To be connected with waterproof cable hose.

8. Replace any cracked protective shield.

9. Minimum distance from lighted objects 1m.

INSTRUCTION MANUAL

LED HIGHBAY

TECHNICAL DATA

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU

FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.

V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

INTRODUCTION & WARRANTY

WARNING

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully

before starting the installation and keep this manual handy for future reference. If you have any another query, please contact

our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect

installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect

removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24

Hours a day would void the warranty. This product is warranted for manufacturing defects only.

MULTI-LANGUAGE

MANUAL QR CODE

Please scan the QR code

to access the manual in

multiple languages.

MODEL VT-91100CCT VT-91150CCT

SKU 23622 23623

WATTS 100W 150W

LUMENS

@WIDE CONE

8300 LM 12300 LM

INPUT VOLTAGE AC: 220-240V, 50/60hz

BEAM ANGLE 90°

LIFE SPAN 20,000 Hours

ON/OFF CYCLE 15,000 Times

CRI ≥80

DF ≥0.9

SAFETY CLASS Class 1

MATERIAL Aluminium

WIRE LENGHT 250mm±10mm

OPERATING TEM-

PERATURE

-20°C to +40°C

N.W (KGS) 0.56KGS/PC KGS/PC0.79

MAX PROJECTED

AREA

30-20m

40-30m

MAX. MOUNTING

HEIGHT

6-4m 7-5m

DIMENSION Ø235x235x32mm Ø277x277x32mm

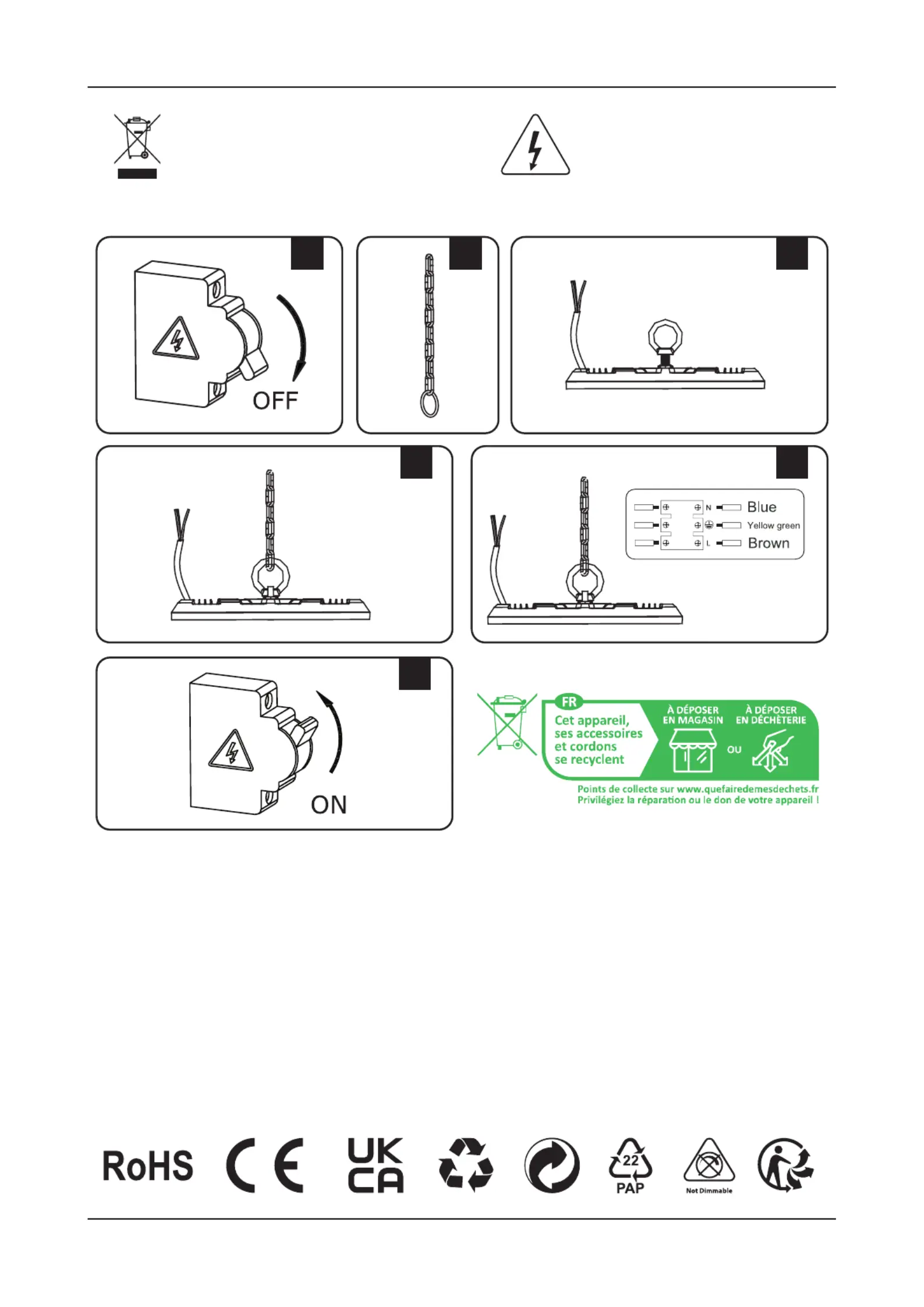

INSTALLATION DIAGRAM

INSTALLATION INSTRUCTION

1. Switch o the power.

2. Installed hanging parts (derrick or chain hoist), the hanging parts need to be strong enough.

Note: the hanging parts need to be purchased separately!

3. Installing the hook on the housing of the highbay light.

4. Hanging the highbay light to the hanging parts

5. Connecting the wires as per the diagram.

6. Turning on the power and test.

1 2 3

4 5

This marking indicates that this product

should not be disposed of with other

household wastes.

Strictly follow these instructions for installing, avoid the intensity of power cable during installing.

(Supply connection and other external wiring conductor shallbe at least 3*1.0 mm2)

Caution, risk of electric shock.
