1 9471007
Issue 1

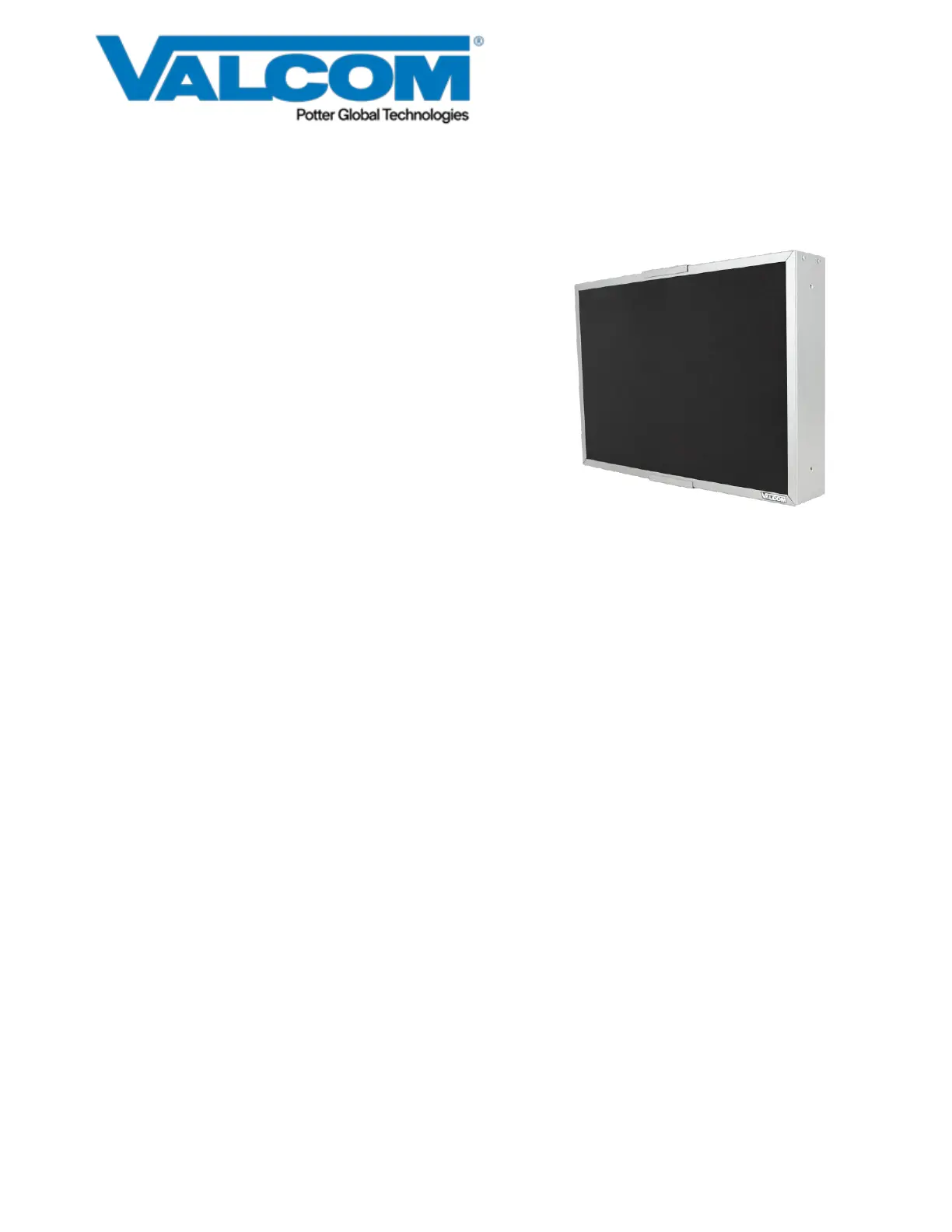

ezIP Sound360° IP Flat Panel Speaker
EZ-SP36
INTRODUCTION
The EZ-SP36 Sound360° ezIP Flat Panel
Speaker is suitable for large and/or noisy areas
such as warehouses and manufacturing
facilities.
The innovative flat panel design provides 360-
degree coverage in open spaces and produces
less reverberation than cone-type speakers.
The lightweight aluminum frame construction
eases installation effort.
SPECIFICATIONS
Access Methods
• SIP – enabled telephone system
• Valcom ezIP Page Controller
• Valcom ezIP Interactive Console
• Valcom ezIP Multicast Page Group
Features
• Software controlled volume setting
• Removable input wiring connector
• 360° audio output
Nominal Specifications
• Frequency Response: 200Hz - 8kHz
• Dispersion: 360°
• SPL @ 1W, 1 Meter: 90 dB
• Power over Ethernet (PoE) 802.3af or 802.3at
compliant
Dimensions / Weight
• 19.25" W x 13.25" H x 3.0" D (4.5” D w/Wall
Bracket)
(48.9 cm x 33.7 cm x 7.6 cm (11.4 cm w/Wall
Bracket)
• 4.4 lb. (2.0 kg)
Environment
• Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 0 to 85%, non-precipitating
• Indoor use only
Precautionary Designations
• WARNING-To Reduce The Risk Of Fire Or Electric
Shock. Do Not Expose This Apparatus To Rain Or
Moisture.
• AVERTISSEMENT - Afin de réduire les risques
d'incendie ou de décharge électrique, évitez
d'exposer le système à la pluie ou à l'humidité.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
• L’appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun Objet
Rempli de liquide, comme vase, ne doit être placé
sur l’appareil.
FCC Information
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area may cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
2 9471007
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
INSTALLATION
Mounting
Note: There are four screws that protrude from the metal
frame on the back of the speaker. The screws are
installed at the proper depth during manufacturing and
should not be adjusted or removed.
The EZ-SP36 speaker can be mounted to a wall or
attached to a structural beam. For wall or other surface
mounting, use the bracket shown in Figure 1. The
bracket is attached to the speaker for shipping; remove
the bracket from the speaker before mounting. Pre-drilled
holes in the bracket allow mounting to standard electrical
boxes. Mount the bracket to the wall or electrical box first.
After making the audio wiring connections, attach the
speaker to the bracket using two screws at the top and
two screws at the bottom of the frame. See Figure 1.
For mounting to a structural beam, two “C” clamps are
provided with the speaker. Attach the C clamps to the
speaker frame using the pre-threaded holes located near
the corners of the frame. Then attach the clamp to a
structural beam. The speaker can be mounted from the
top, bottom or either side. See Figure 2.
For additional safety, unused mounting holes can be fitted
with a ¼”-20 x 1” eyebolt and a cable attached to the
building structure.
Input Connections
A metal cover with captive thumbscrew on the back of the
speaker protects the input connections. Loosen the
thumbscrew and remove the plate to access the wiring
connections. See Figure 3

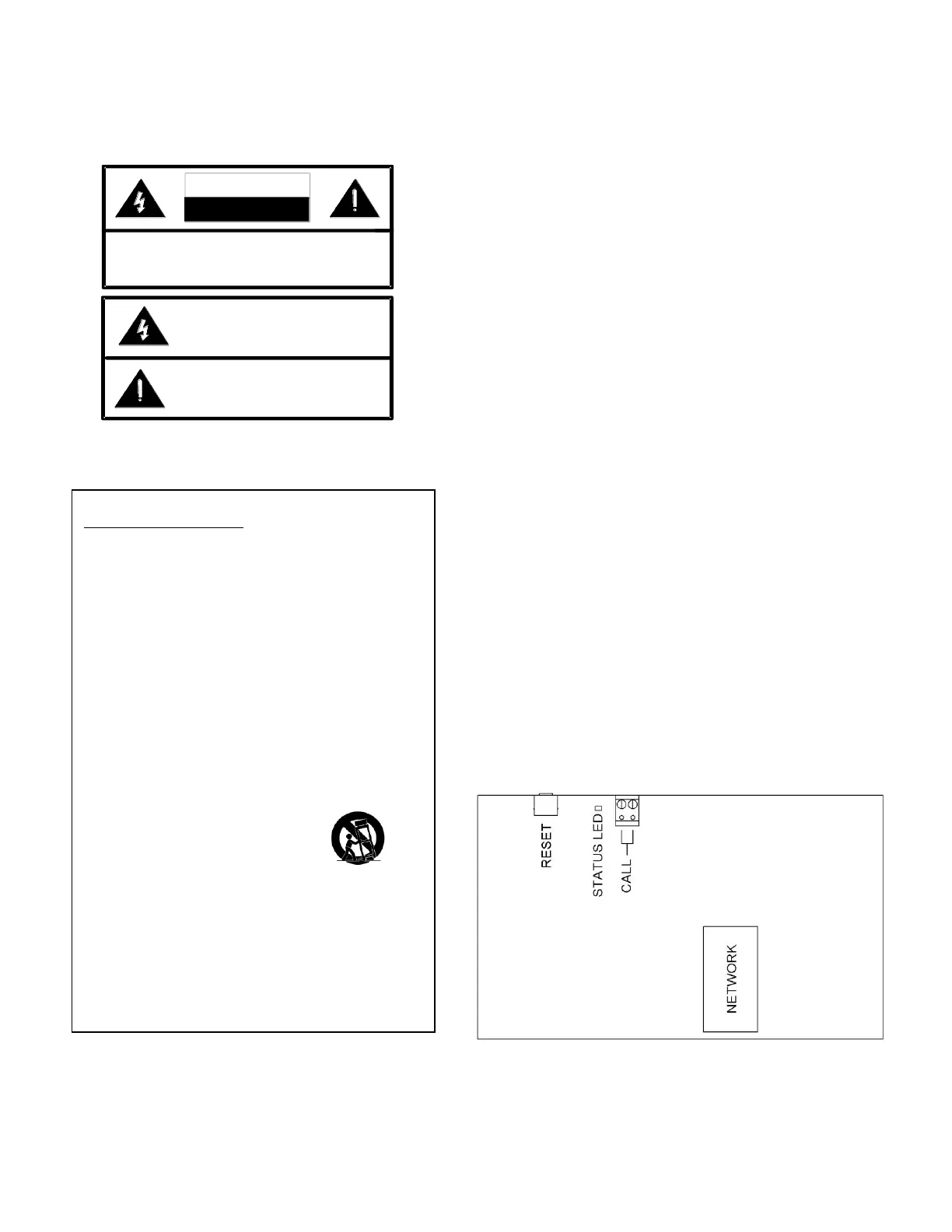

Figure 3: Connection
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
