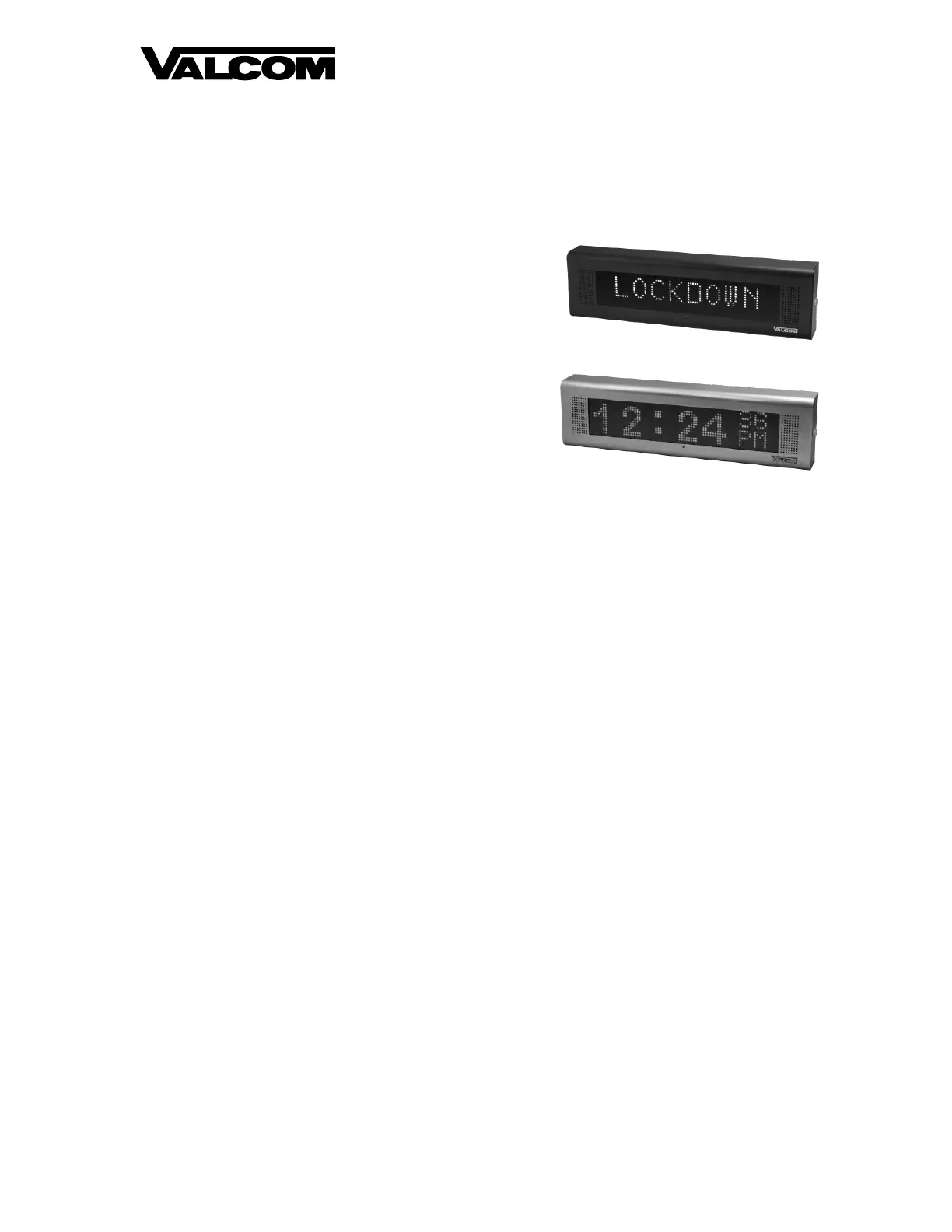

VL520BK-F-IC / VL520M-F-IC
InformaCast
®
Compliant
IP TEXT SIGN WITH SPEAKER AND FLASHERS
INTRODUCTION
The VL520-IC InformaCast Compliant IP Text
Sign with Speaker and Flashers provides highly
visible message output and audio paging over
an Ethernet network. Audio and Text messages
are created and delivered from an InformaCast
server.
For InformaCast servers that support SIP
(Session Initiation Protocol) endpoint
registrations, the VL520-IC can get its SIP
information directly from the InformaCast server.
Talkback/intercom communications can then be
performed through the InformaCast server.
SPECIFICATIONS
Features
• SIP registration to InformaCast Server
• Easy to read, high visibility
• Font and color options
• Power over Ethernet:
(PoE) 802.3af or
(PoE+) 802.3at compatible
• Speaker output and LED display can be
activated together or separately
• Display can operate as a clock or provide
other message during idle periods
• Contact Closure connection for optional
Call switch
• Relay connection for optional equipment
• Bright LED flashers that can be activated
based on priority page
Dimensions / Weight
• 20.38” W x 5.5” H x 2.5” D
(51.8cm W x 14.0cm H x 6.4cm D)
• Weight:
VL520BK-F-IC 4.65 lb (2.1kg)
VL520M-F-IC (Metallic) 5.95 lb (2.7kg)
Nominal Power Requirements
• 802.3af (PoE) Class 3
or
• 802.3at (PoE+) Class 4
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Black (BK)
Metallic (M)
These products are intended for use with a UL
Listed power source marked “Class 2” or “LPS”
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designations
• WARNING: To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
• AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système
à la pluie ou à l'humidité.
• Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall
be placed on the apparatus.
• L’appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l’appareil.
