1 947995

ISSUE 6

VIP-801

ENHANCED NETWORK AUDIO PORT

INTRODUCTION

The VIP-801 Enhanced Network Audio Port

enables voice access to a single zone of one-way

paging over an IP network, allowing page zones

to be extended anywhere network connectivity is

available. The VIP-801 can be programmed as a

SIP (Session Initiation Protocol) device for

connectivity to virtually any Voice over IP (VoIP)

telephone system.

SPECIFICATIONS

Features

 1 Audio Output or Input

 2 Form C Relays

 1 Contact Closure Input

 1 SIP identity for registering to a VoIP telephone

system

 RJ-45 jack for network connection

 Front panel activity LED

 Provides audio for up to 40 Valcom one-way

amplified speaker assemblies

 AUX audio input via RCA jack

 Contact closure or VOX operation of audio input

 Removable screw terminal connectors provided

for audio and relay interface

 AUX input music mutes during page

 Output control contact closure provided during

paging output

 Compatible with 25 or 70 Volt amplifiers

 2.5mm jack for optional DC power

 Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

 1.38 H x 6.13" W x 5.25" D

(3.50cm H x 15.6cm W x 13.33cm D)

 Weight: 1.25 lbs. (0.57 kg)

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Voice Switch Sensitivity: -21dBm

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 Amp @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VIP-801

1 VSP Document

2 Mounting Brackets W/ Hardware

4 Rubber Pads

2 947995

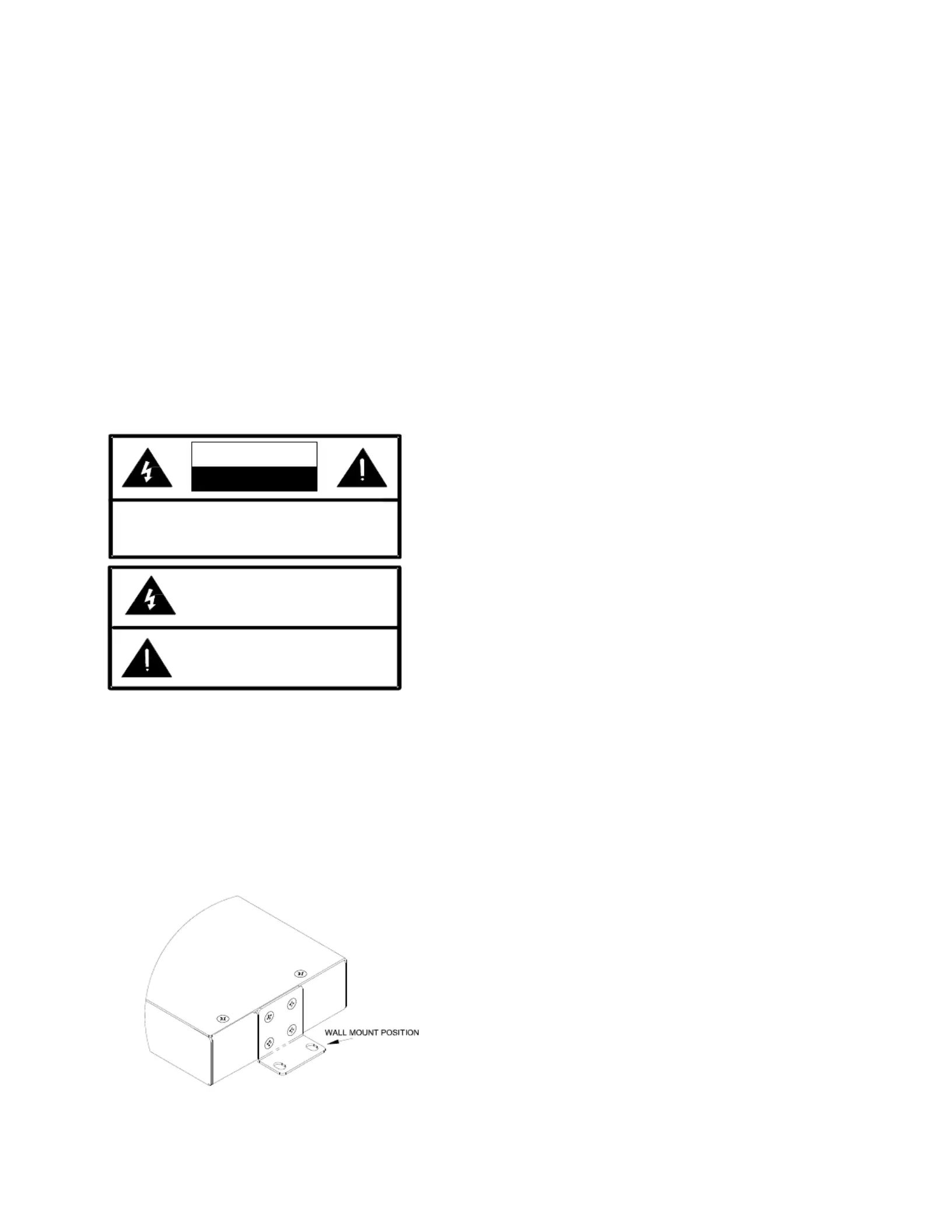

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service pe rsonnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present with in this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

Precautionary Designations

Mounting

The VIP-801 is designed for wall or table mounting.

Table: Provided with the VIP-801 are four rubber

pads. Peel the pads from their carrier backing

and place at the four corners of the bottom of the

unit.

Wall: Using the brackets and screws provided,

secure the VIP-801 to the wall.

Power Connections

The preferred method of powering a VIP-801 is via

a power over Ethernet switch meeting the 802.3af

specification.

If the rear panel barrel connector is used for power,

the preferred power supply is a Valcom VIP-324D.

Make all required signal connections before

applying power to the unit. If powering via 802.3af,

make sure all signal connections via the back panel

are made then connect the VIP-801 to the Ethernet

switch.

If power is supplied via the barrel connector, make

sure all signal connections are secure. Attach the

unit to the network via the front panel RJ-45

Ethernet connector. Apply power by plugging the

power supply into the VIP-801 via the barrel

connector on the rear of the VIP-801.

Network Connection

The VIP-801 has one RJ-45 network connector on

the front panel. Use a standard Ethernet patch

cable to connect the VIP-801 to an Ethernet switch.

Signal Connections

The VIP-801 has 4 signal connectors on the rear

panel:

 RCA jack for AUX audio input

 2 Pin screw terminal for audio output

 6 Pin screw terminal for relay connections

 4 Pin screw terminal for audio input and contact

closure input

AUX Input: Local audio may be input via the

rear panel RCA jack. Nominal input impedance

is 600 Ohms. Connect any compatible audio

source using an RCA patch cable. Audio

supplied through the rear panel RCA jack is

transformer coupled to Audio Out when Audio Out

is idle. This is typically used for background music.

Audio Out: Typically connects to Self Amplified

Speakers or into an amplifier. AUX Input audio

mutes when Audio Out is receiving page audio.

Audio Input/Contact Closure: The audio input

and contact closure share a four pin terminal

connection. Neither input is polarity sensitive.

The contact closure is on the right two terminals

labeled "CC". The audio input is on the left two

terminals labeled "AUDIO".
