Side 1/6

Issue 3

1 947199

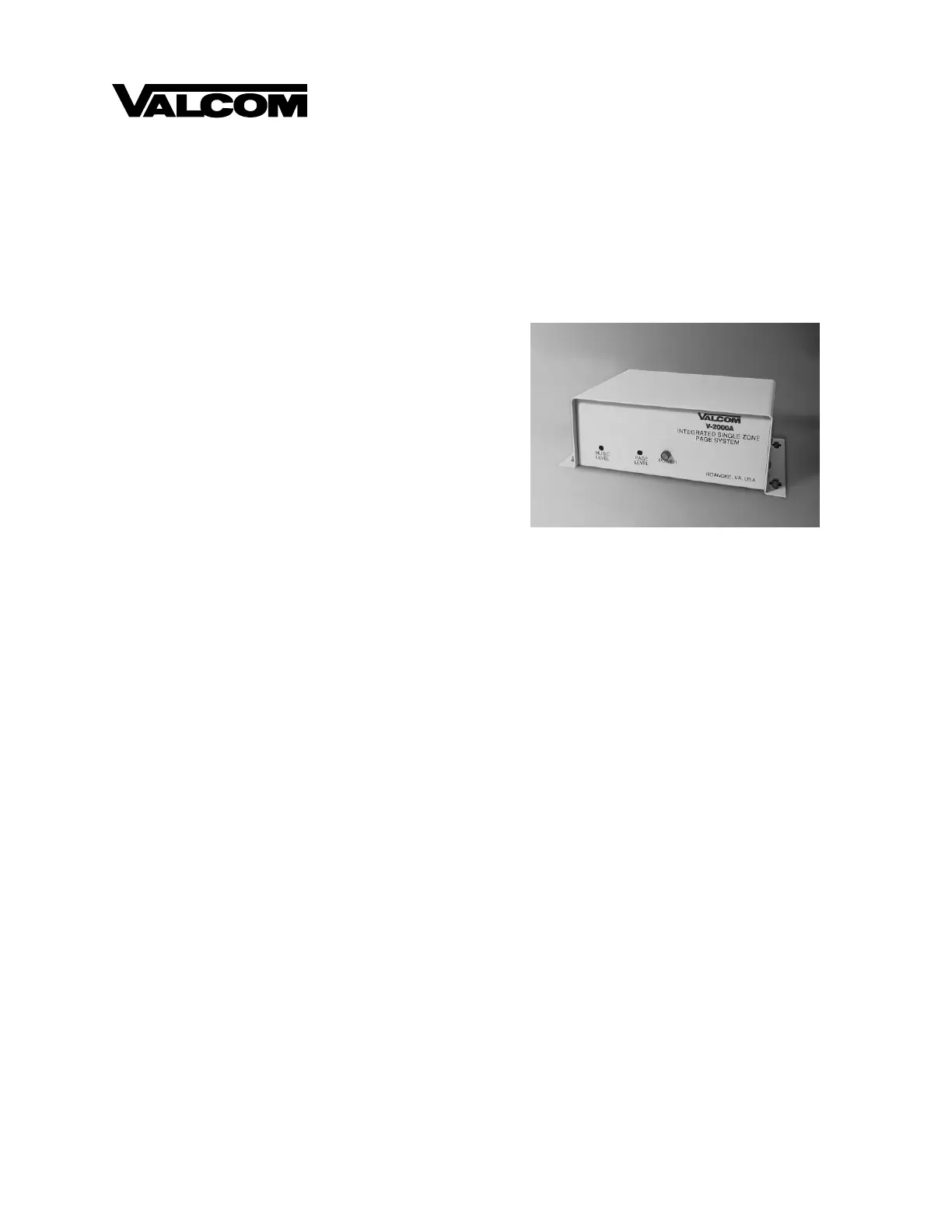

V-2000A

INTEGRATED SINGLE ZONE PAGE CONTROL UNIT

INTRODUCTION

The V-2000A is an Integrated Single Zone Page

Control Unit for use with any electronic key or

PABX. The control unit provides external power (12

Valcom power units) for powering Valcom One-way

Amplified Speakers.

These instructions contain the specifications and

information necessary to install, operate and maintain

the Integrated Single Zone Paging Control Unit.

"WARNING: To reduce the risk of fire or

electric shock, do not expose this appliance

to rain or moisture."

"WARNING: Shock Hazard - Do Not Open."

"AVIS: Risque de Choc Electrique ne pas

Ouvrir."

"PELIGRO: Corriente Elecrica - No Abra."

SPECIFICATIONS

Purpose

 Provides telephone system access to a single

zone of one-way paging

Applications

 Electronic Key Systems

 PABXs

 1A2 Key Systems (400 type line card required)

 Stand Alone Systems

Refer to Figure 1 for a block diagram of a typical

installation.

Features

 Electronic key system line key access

 PABX loop start trunk port access

 Page port access

 Switchable battery feed for loop start operation

 RJ11 for Tip and Ring connections

 Power on LED

 Drives up to 150 Valcom one-way amplified

speaker assemblies (Audio)

 Background music input

 Voice operated switch to mute music during page

 Screw terminals provided for all connections

 UL Listed

 Supplies 12 Valcom power units for powering

Valcom one-way amplified speakers

 May be used with 25 or 70 Volt amplifiers

 AC powered

 AC input fused at 0.5 Amp

Capacity

 The V-2000A is a one-zone single talkpath unit.

 Each V-2000A will drive up to 150 Valcom

one-way amplified speaker assemblies (Audio)

and provides 12 Valcom power units for

powering the speaker amplifier assemblies. The

V-2000A can also be used to access 25 or 75

Volt conventional amplifiers.

Dimensions/Weight

 2.50" H x 7.70 " W x 5.30" D

(6.35cm H x 19.56cm W x 13.46cm D)

 2.6 lbs. (1.2 kg)

Nominal Power Requirements

 Voltage: 115VAC

 Current: 0.35 Amp

Environment

 Temperature: 0 to +40° C (+32 to +104° F)

 Humidity: 0 to 85% non-precipitating

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Music Source Input Impedance: 8 to 600 Ohms

Voice Switch Sensitivity: -21dBm

Music Input Level: -10dBm nominal

Output Impedance: 8 Ohms

Output Level: -10dBm nominal

DC Output: -24VDC at 600mA

SYSTEM DESIGN

General

The Valcom V-2000A Integrated Single Zone Page

Control Unit provides access to paging from a

standard PABX loop start trunk port, an Electronic

Key System C. O. line button or a 1A2 Key System

C. O. line button (A 400 type line card is required).

In most cases, access is also possible from a PABX or

Electronic Key System page port.

NOTE: Do not connect to Central Office Line or

PBX Station Port.

Electronic Key or PABX Access

When using the V-2000A with an electronic key

system or PABX, the following equipment will be

needed:

1) 1 - V-2000A Integrated Single Zone Page Control

Unit

2) 1 - C. O. Line Circuit (Electronic Key System) or

1 Loop Start Trunk Circuit (PABX)

3) Valcom One-way Amplified Speaker Assemblies

(Quantity and style determined by specific

installation)

Operation: Press the appropriate line key (Electronic

key system) or dial the appropriate trunk access code

(PABX). You will immediately be connected to the

paging speakers. Make announcement. The

V-2000A will automatically disconnect when you

hang up.

Page Port Access

When accessing the V-2000A from a page port the

following equipment will be required:

 One V-2000A Integrated Single Zone Page

Control Unit

 Telephone System Page Card (If required for

external page outputs)

 Valcom One-way Amplified Speaker Assemblies

(Quantity and style determined by specific

installation)

Operation: Follow the telephone manufacturers’

directions on how to access external paging. You

will immediately be connected to the paging speakers.

Make announcement. The V-2000A will

automatically disconnect when you hang up.

Background Music

Background music may be connected to the V-2000A

when using any of the above configurations. The

background music will cut off automatically when the

party making the page is speaking.

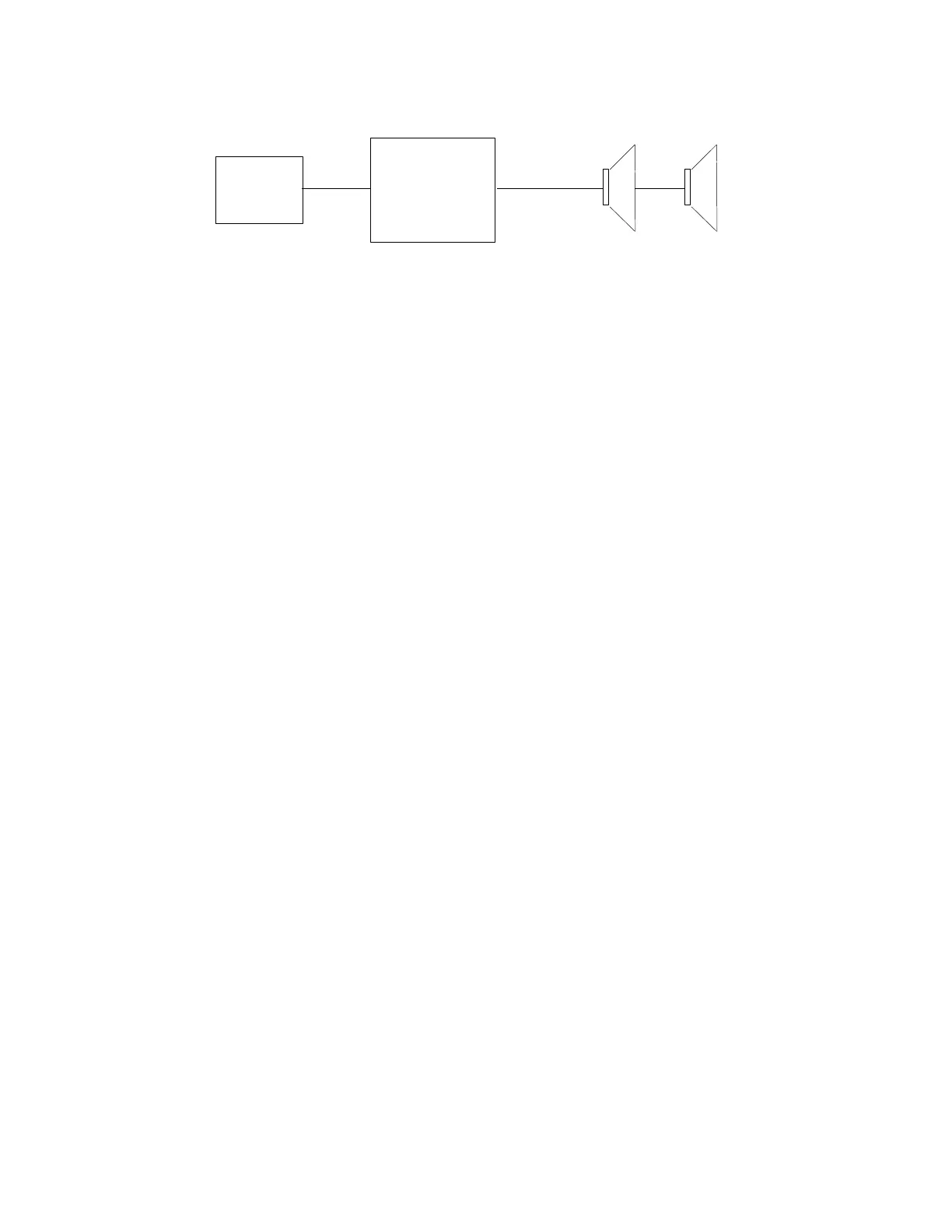

E-KEY

OR PABX

V-2000A

INTEGRATED

SINGLE ZONE

PAGE SYSTEM

VALCOM ONE-WAY

AMPLIFIED SPEAKERS

NOTE; Additional power supplies required for large numbers of speakers.

FIGURE 1 - TYPICAL INSTALLATION
