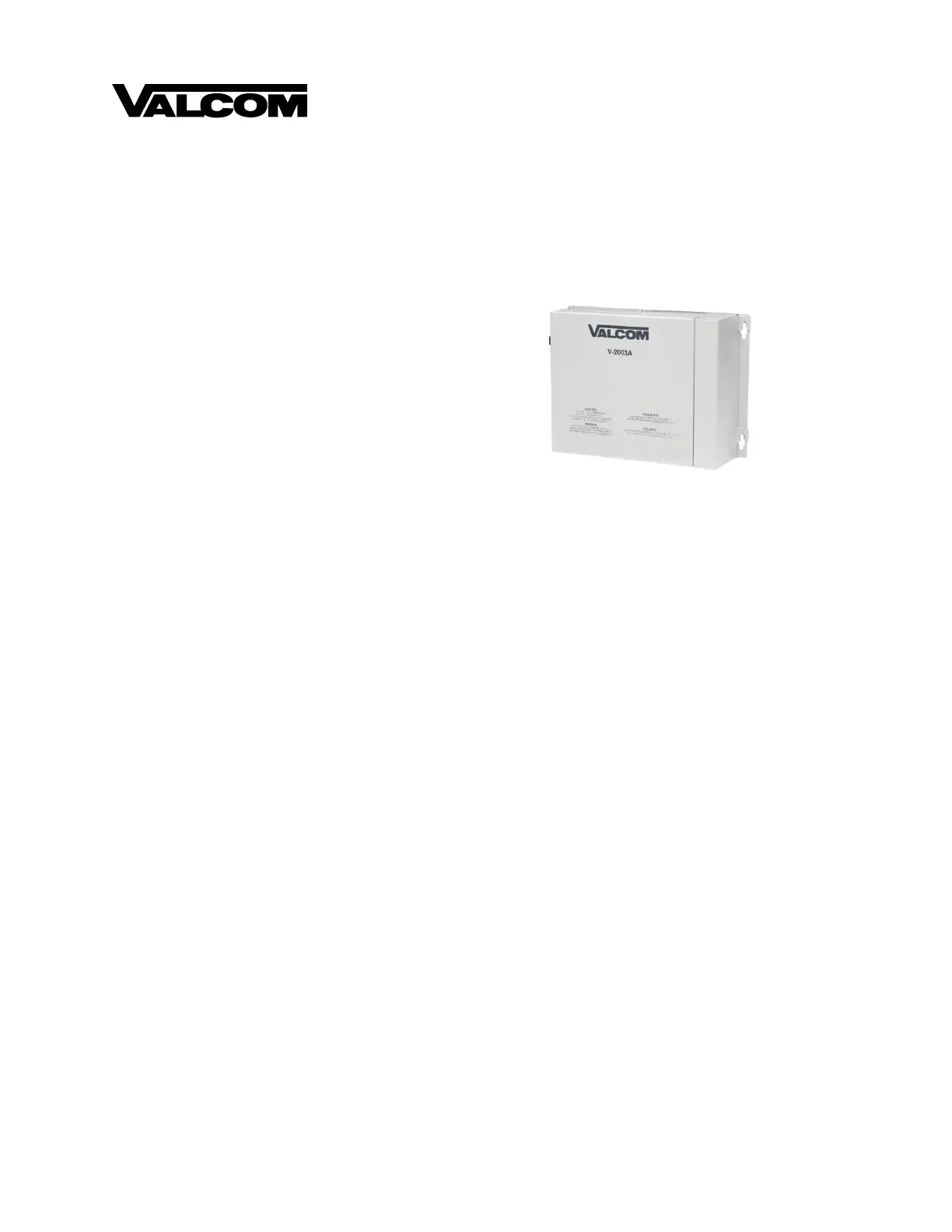

V-2003A - THREE ZONE PAGE CONTROL UNIT

V-2003AHF - THREE ZONE HANDSFREE

TALKBACK PAGE CONTROL UNIT

INTRODUCTION

The V-2003A provides telephone system access

to multiple zones (Up to 3) of one way paging

plus all call.

The V-2003AHF provides telephone system

access to multiple zones (Up to 3) of handsfree

talkback and/or one-way paging with a one-way

all call.

“WARNING: To reduce the risk of fire or

electric shock, do not expose this equipment

to rain or moisture.”

“WARNING: Shock Hazard - Do Not Open.”

“AVIS: Risque de Choc Electrique ne pas

Ouvrir.”

“PELIGRO: Corriente Electrica - No Abra.”

“CAUTION: To reduce the risk of fire replace

only with same type 1A, 125V fuse. 1A, 125V

may be replaced by a 0.5A, 250V provided

voltage selector is set for 230V.”

“DANGER: Afin de réduire le risque de feu,

remplacez le fusible par le même type de

fusible à 1A, 125V. On peut utiliser un fusible

à 0.5A, 250V pourvu que le sélecteur

ďalimentation soit fixé sur 230V. Ne pas

ouvrir.”

“VORSICHT: Zur verringerung von

feuergefahr die sicherung nur mit derselben

type 1A, 125V ersetzen. Statt 1A, 125V Kann

0.5A, 250V Benutzt werden, vorausgesetzt,

die spannung ist auf 230V eingestellt. Nicht

öffnen.”

“PELIGRO: Para reducir el peligro de

incendio remplazarlo unicamente con un

fusible del mismo tipo 1A, 125V. El fusible

de 1A, 125V podra ser remplazado por uno

de 0.5A, 250V si el selector de voltaje esta

puesto en 230V. No abres.”

SPECIFICATIONS

Access Method

 Electronic Key System (C. O. Line Position)

 PABX (Loop or Ground Start Trunk)

 1A2 Key systems (400 Type Line Card

required)

 600 Ohm Page Port equipped with contact

closure and DTMF dialing capability; Page

Port must be bi-directional if using V-

2003AHF.

 Dedicated single line telephone(s)

Features of the V-2003A

 3 zones of one-way paging

 One-way all call

 Integrated power supply

 Supplies 20 Valcom power units (-24 VDC,

1 A) for powering speaker amplifier

assemblies

 Volume controls supplied for:

 Background music

 Tones

Night ring/warble tone

(Closure or 90 VAC ring activated)

Time clock/single tone (Closure

activated)

 Options are dip switch programmable per

zone (Music and tones)

 Dial tone (Optional)

 (#) Button returns dial tone

 Provides audio for up to 150 Valcom

one-way speaker amplifier assemblies per

zone

 115 VAC @ 60 Hz or 230 VAC @ 50 Hz

operation (with appropriate cord set)

 AC input fused at 1 A @ 115 VAC or

0.5 A @ 230 VAC

 Override page on separate tip/ring

temporarily disconnects page in progress

and issues an override busy tone to

overridden party

 Normal paging is restored after override

 Inhibit circuitry (Speaker cancel)

 UL Listed

Additional Features Supplied by the

V-2003AHF

 3 zones of handsfree talkback, one-way or

mixed paging

 Dip switch programmable per zone (Music,

tones and one-way or talkback)

 Pre-announce tone (Optional)

 Repeated alert tone (Optional)

 Two volume controls for handsfree paging

- Page (Phone to speaker)

- Receive (Speaker to phone)

 Supplies 10 Valcom power units (-24VDC,

0.5 Amp) for powering one-way amplified

speakers (A reduction of 10 power units

from the V-2003A)

Priority Sequence

The V-2003A and V-2003AHF Units are

designed with the following priority (1 = highest;

5 = lowest):

___1. Time clock signal

___2. Override page

___3. System page

___4. Night right

___5. Music

Physical Description

The V-2003A and V-2003AHF are contained in

single, gray steel cases, which can be wall or

shelf-mounted.

V-2003A

Dimensions: 7.10"H x 10.00"W x 3.00"D

(18.03cm x 25.40cm x 7.62cm)

Weight: 4.1 lbs. (1.86 kg)

V-2003AHF

Dimensions: 7.10"H x 10.00"W x 3.00"D

(18.03cm x 25.40cm x 7.62cm)

Weight: 5.6 lbs. (2.54 kg)

Nominal Specifications

Input Impedance: 600 ohms

Input Level: -10 dBm

Music Source Impedance: 8 to 600 ohms

Music Input Level: -10 to -18 dBm

Output Impedance: 8 ohms (1 way)

45 ohms (Talkback)

Output level: -10 dBm (1 way)

1 W (Talkback)

DC Output: -24 VDC at 1 A (V-2003A)

-24 VDC at 0.5 A (V-2003AHF)

Nominal Power Requirements

Voltage: Current:

115 VAC 1 A

230 VAC 0.5 A

Environment

Temperature: 0 to +40 degrees C

Humidity: 0 to 85% non-condensing

Battery Backup

The V-2003A/V-2003AHF is equipped with a

standard 3-prong MOLEX connector to allow

connection of a fused output battery backup

supply (3 Amp, Valcom VPB-260 or equivalent)

in case of AC power failure. Backup time will be

a function of system usage.

NOTE: The AC line cord of the VPB-260

and the AC line cord or the V-2003A

(or V-2003AHF) should be plugged into the

same AC circuit.

OPERATION

General

Press the line key (Electronic Key System), dial

the trunk access code (PABX) or dial the page

port access code to access the

V-2003A/V-2003AHF; with dedicated single line

sets - simple go off hook. The

V-2003A/V-2003AHF will return dial tone (If so

optioned). Dial desired zone code: 1, 2, 3, or 5,

6, 7 for individual zones (1 through 3

respectively). Dial 4 or 8 for the all call of all

zones. Ringback tone (If so optioned) will be

heard in the telephone receiver. Make

announcement and hang up. The unit will

automatically disconnect from page. Ringback

tone and repeated alert tones, when optioned,

provide an alert tone to the talkback zones on a

V-2003AHF. The repeated alert tones will

broadcast every 15 seconds when the zone is

active in the handsfree mode.
