Issue 11

1 947207

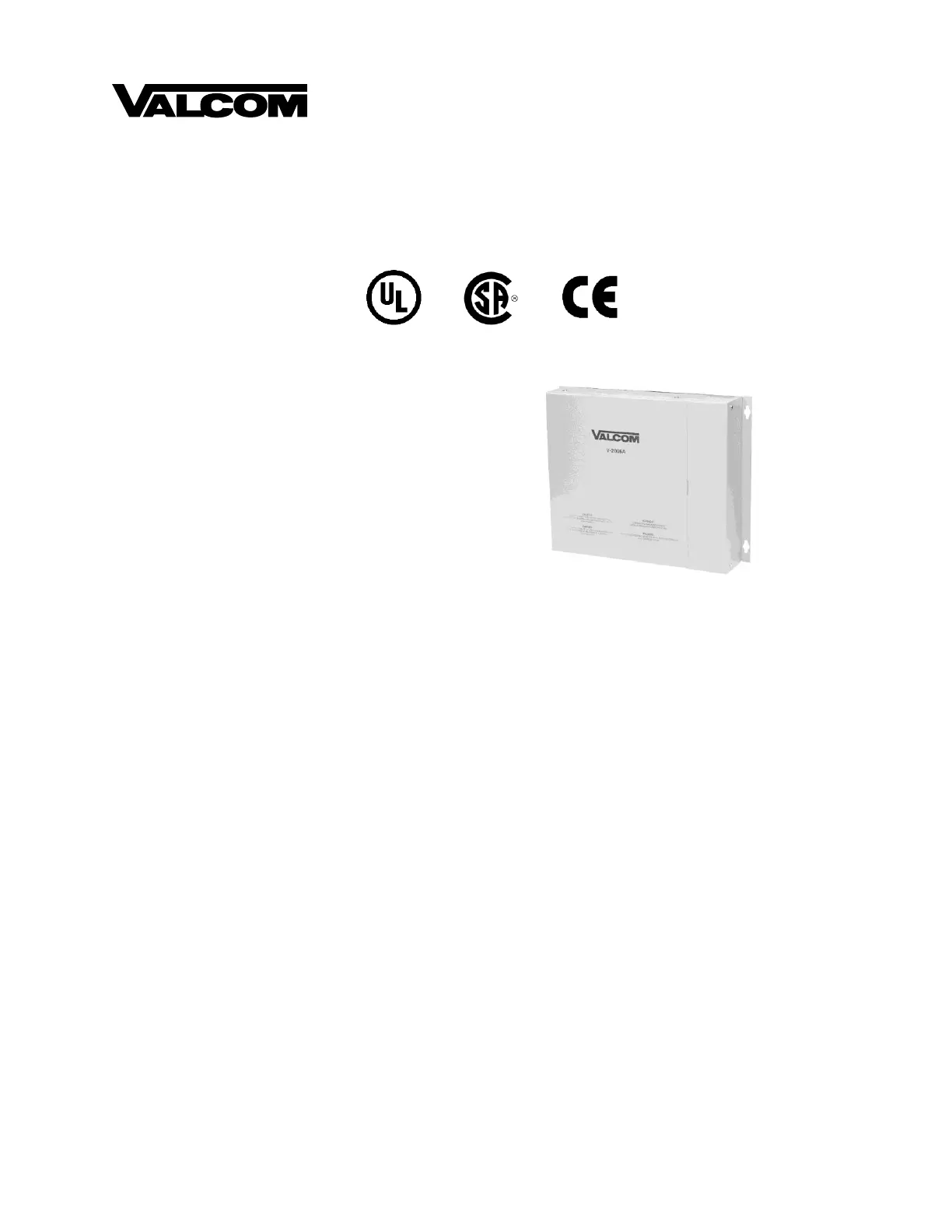

V-2006A - INTEGRATED SIX ZONE PAGING CONTROL UNIT

V-2006AHF - INTEGRATED SIX ZONE HANDSFREE

TALKBACK PAGING CONTROL UNIT

"WARNING: To reduce the risk of fire or

electric shock, do not expose this equipment

to rain or moisture."

"WARNING: Shock Hazard - Do Not Open."

"AVIS: Risque de Choc Electrique ne pas

Ouvrir."

"PELIGRO: Corriente Electrica - No Abra."

“CAUTION: To reduce the risk of fire replace

only with same type 2A, 125V fuse. 2A, 125V

may be replaced by a 1A, 250V provided

voltage selector is set for 230V.”

“DANGER: Afin de réduire le risque de feu,

remplacez le fusible par le même type de

fusible à 2A, 125V. On peut utiliser un fusible

à 1A, 250V pourvu que le sélecteur

ďalimentation soit fixé sur 230V. Ne pas

ouvrir.”

“VORSICHT: Zur verringerung von

feuergefahr die sicherung nur mit derselben

type 2A, 125V ersetzen. Statt 2A, 125V Kann

1A, 250V Benutzt werden, vorausgesetzt, die

spannung ist auf 230V eingestellt. Nicht

öffnen.”

“PELIGRO: Para reducir el peligro de

incendio remplazarlo unicamente con un

fusible del mismo tipo 2A, 125V. El fusible

de 2A, 125V podra ser remplazado por uno

de 1A, 250V si el selector de voltaje esta

puesto en 230V. No abres.”

SPECIFICATIONS

Purpose

The V-2006A is an Integrated Six Zone Paging Control

Unit. It provides six individual zones of one-way

paging, plus three programmable zone groups and all

call. The built-in -24VDC power supply provides 1.5

Amps.

The V-2006AHF is an Integrated Six Zone Handsfree

Talkback Paging Control Unit. It provides six

individual zones of talkback and/or one-way paging,

plus three programmable zone groups and all call.

Nominal Specifications

 Zone Audio Outputs:

One-Way: Will supply audio for up to 150 Valcom

one-way self-amplified speakers per Zone

 Handsfree:

Will supply audio for up to 2 Talkback Speakers plus

40 one-way speakers per zone

 Input Impedance:

600 Ohms

 Input Level:

-10dBm minimum

 Music Source Impedance:

8 to 600 Ohms

 Music Source Level:

-10 to -18dBm

 Speaker Output Impedance:

8 Ohm (1 way)

 Output Level:

-10dBm (1 way)

1 Watt (talkback)

 DC Power Output:

-24VDC at 1.5 Amps

 Power Requirements:

115VAC 2 Amps or

230VAC @ 1 Amp

(slo-blo)



Tone Activation:



Clock Tone – Dry Contact



Night Ring Tone – Dry Contact

or Ring Voltage

-90VAC (20 to 30Hz)

 K5 and K6 Relay Contacts:

Rated 1 Amp @

125VAC

2 Amps @ 30VDC

Access Methods

 Electronic Key System (C. O. Line Position)

 PABX (Loop or Ground Start Trunk)

 1A2 Key Systems (400 Type Line Card required)

 600 Ohms Page port equipped with contact

closure and DTMF dialing capability

 Dedicated single line telephone

Additional Equipment Required

 Backboard/mounting surface

 25 pair cable with female connector on one end

 One 66 split block

 Speakers

 Cat 3 or Cat 5 twisted 2-pair cable

(for speaker connections)

Physical Description

The V-2006A and V-2006AHF are contained in single,

gray steel cases, which can be wall or shelf-mounted.

V-2006A:

10.90"H x 13.00"W x 2.70"D

(27.69cm H x 33.02cm W x 6.86cm D)

6.2 lbs. (2.81 kg)

V-2006AHF

10.90"H x 13.00"W x 2.70"D

(27.69cm H x 33.02cm W x 6.86cm D)

7.5 lbs. (3.40 kg)

Environment

Temperature: +32 to +104° F

0 to +40° C

Humidity: 0 to 85% non-precipitating

Features of the V-2006A

 Time Clock & Night Ring Tones (single/warble)

 Override Input (Trunk Port Access)

 Two Auxiliary Contact Closures

 Programmable per Zone

- Background Music

- Clock (single tone)

- Night Ring (warble tone)

- Group Calls

- All Call

- One-way/Talkback (V-2006AHF for Talkback)

 Three group calls and one all call group

 Volume Controls for:

- Background Music (music mutes during page)

- Clock and Night Ring Tones

- All Call

 Switch selectable

- Dial Tone

- Ringback Tone

- Loop or Ground Start

 Battery Backup Input (for VPB-260 only)

 Inhibit Option for “Meet Me” answer

 Common all call link for up to (10) V-2006A/

V-2006AHF units

Features of the V-2006AHF

 6 zones of handsfree talkback (one-way or

mixed) paging (one handsfree output per zone)

 Two volume controls for handsfree paging

Page (Phone to Speaker)

Receive (Speaker to Phone)

 Tone options

(dip-switch selectable on a system basis):

1 - dial tone

2 - alert tone (ringback tone)

3 - repeated alert tone

SYSTEM OPERATION

DO NOT OPERATE UNIT WITH COVER

REMOVED!

 To Access Paging/Override: Press CO line key,

dial trunk access code or access page port if

applicable

 System Dial Tone: If so optioned (dip switch #1),

the V-2006A/V-2006AHF returns dial tone

 Dialing Zones: Dial 1 to 6 for individual zones

 Dialing All Call: Dial 0 for All Call

 Dialing Groups: For Groups 1, 2 or 3 – dial 7, 8

or 9 respectively

 Activating Make or Break Contact Closures;

K5: After dialing any individual zone, press the

asterisk (*) once for 2.2 seconds of relay closure

K6: This closure activates as long as zone 6 is

active

 Dialing Another Zone: Press pound (#) key to

return dial tone

 Priority Sequence

1) Time Clock Tone

2) Override Page

3) All Call Link

4) Page

5) Warble Tone

6) Background Music

Background Music

Background music may be connected to control unit.

Background music will mute in zone paged if the zone

is programmed for background music.

Page Override

Requires use of a second vacant C. O. line position or

vacant loop or ground start trunk port for access.

OPERATION: Press line key (electronic key system)

or dial trunk access code (PABX) for override access

(override busy tone will be heard). Dial zone and make

announcement. The unit will disconnect when you

hang up, re-establishing the overridden page.
