Issue 2

947973

V-6120

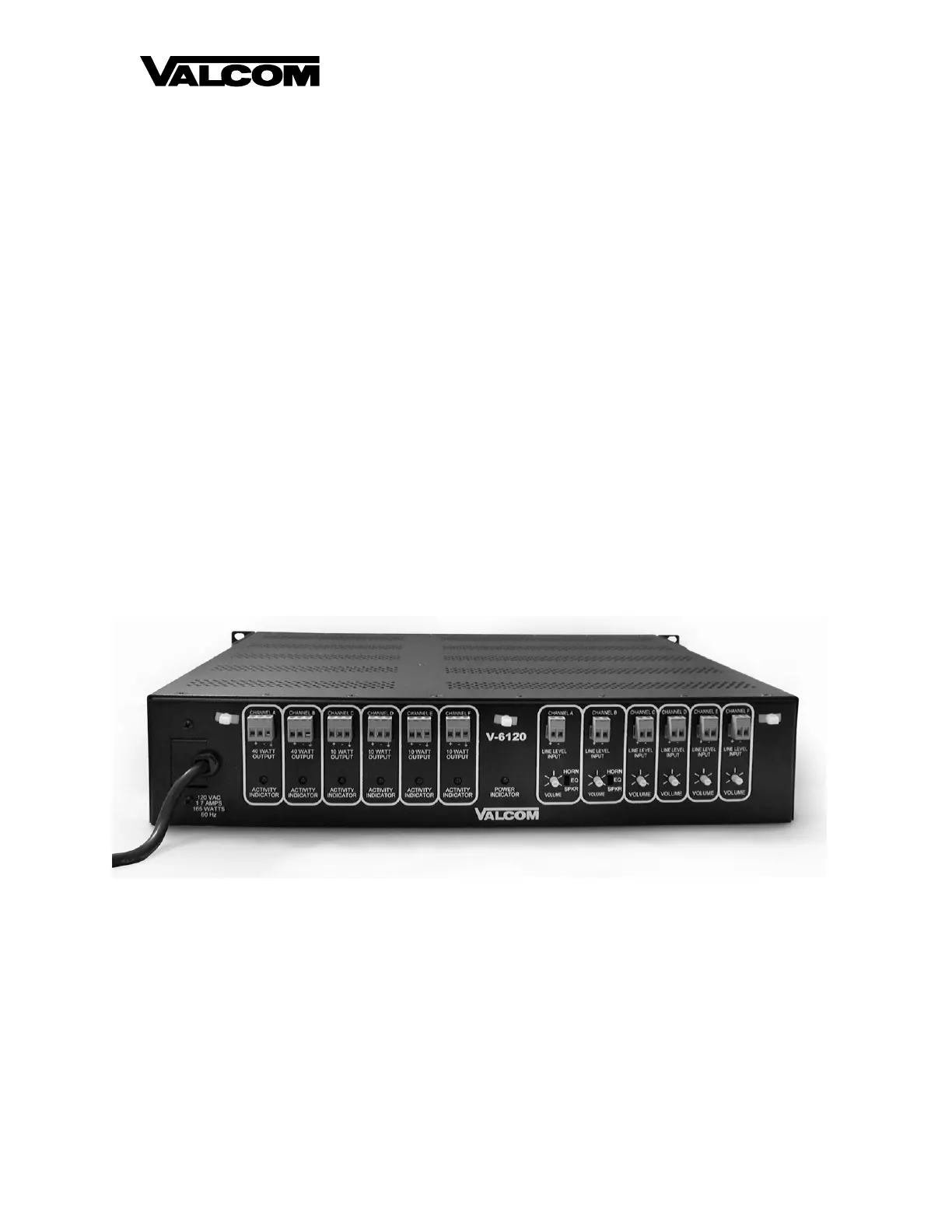

6-Channel Amplifier

INTRODUCTION

The V-6120 6-Channel Amplifier is designed

as a replacement amplifier for existing

25-Volt Speaker Lines. When used with

Valcom’s 25-Volt retrofit intercom systems,

the V-6120 eliminates the need to install

separate amplifiers for each one-way zone.

Most of Valcom’s 25-Volt compatible station

cards feature a line level output suitable for

connection to the line level inputs of the

V-6120. This allows users to provide audio

to up to 6 zones of common area paging per

V-6120.

Features:

 2u 19” Rack Mounting

 6 Independent Amplifier Channels

 3 Convenient Strain Relief Points

 LED Activity Indicator per channel

Power Requirements:

120 VAC/1.7A; 165W

Weight:

21.0 lbs (9.53 kg)

Dimensions:

3.5" H x 17.0" W x 15.0" D

(8.89 cm x 43.18 cm x 38.1 cm)

INSTALLATION

All connections to the V-6120 are made on the rear of the amplifier. There are 6 line level

(-10dBm) inputs, each featuring an independent volume control, and 6 corresponding speaker

outputs. Channels A and B are designed to drive up to a 40 watt load of 25-Volt speakers each or

horn loudspeakers. These 2 channels also feature a switch selectable EQ to enhance the

amplifier’s output for horn or speaker loads. Channels C, D, E and F are designed to drive up to a

10 watt load of 25-Volt speakers each. The inputs may be bridged together; providing multiple

outputs from a single input signal. The V-6120 Amplifiers outputs may not be bridged

together.

947973

CHANNEL F

CHANNEL E

CHANNEL D

CHANNEL C

CHANNEL B

CHANNEL A

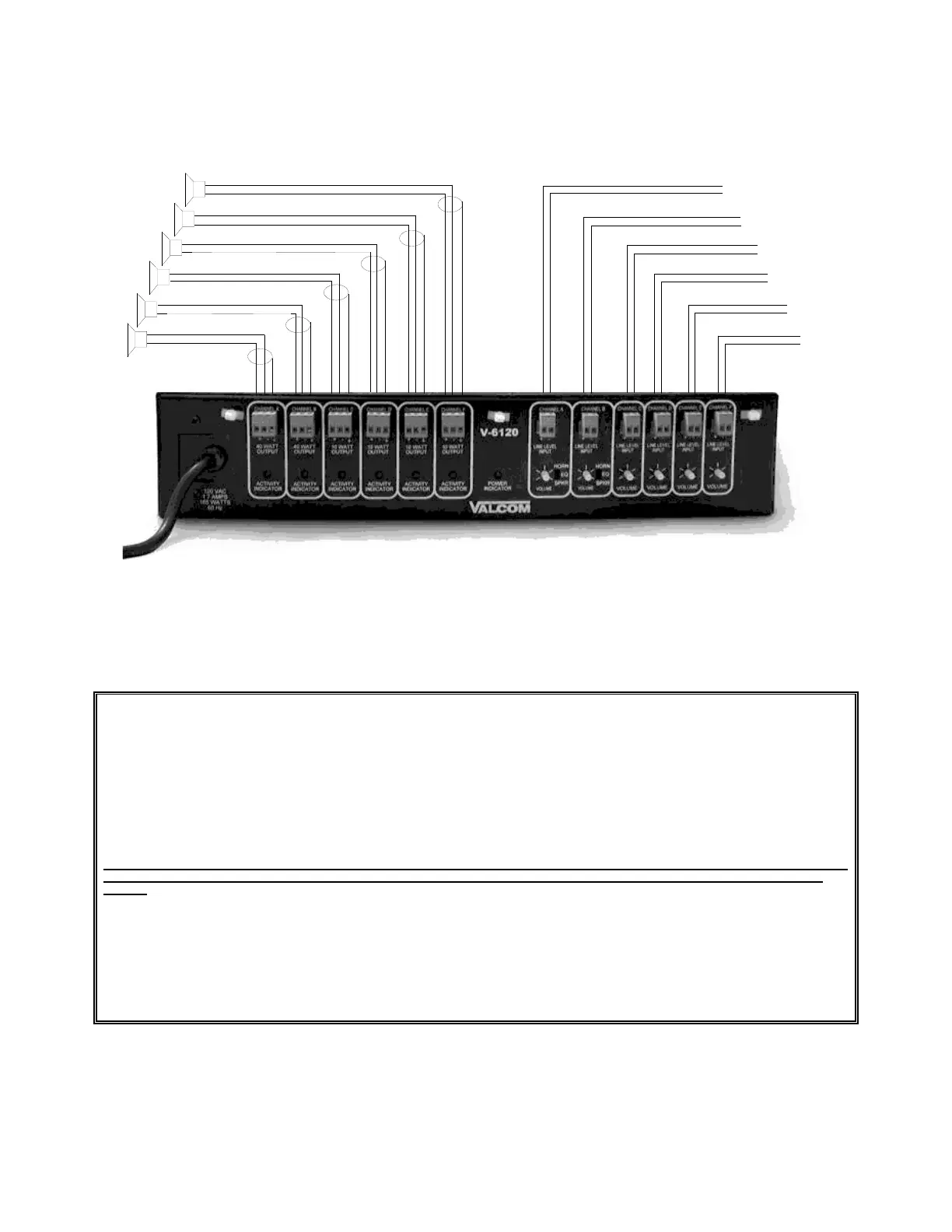

REAR VIEW

25V SPEAKER OUTPUT

SHIELD

10 W

MAX

10 W

MAX

10 W

MAX

10 W

MAX

40 W

MAX

40 W

MAX

CHANNEL F

CHANNEL E

CHANNEL D

CHANNEL C

CHANNEL B

CHANNEL A

LINE LEVEL (-10dBm) INPUTS
