Side 1/4
1 9471023
Issue 1

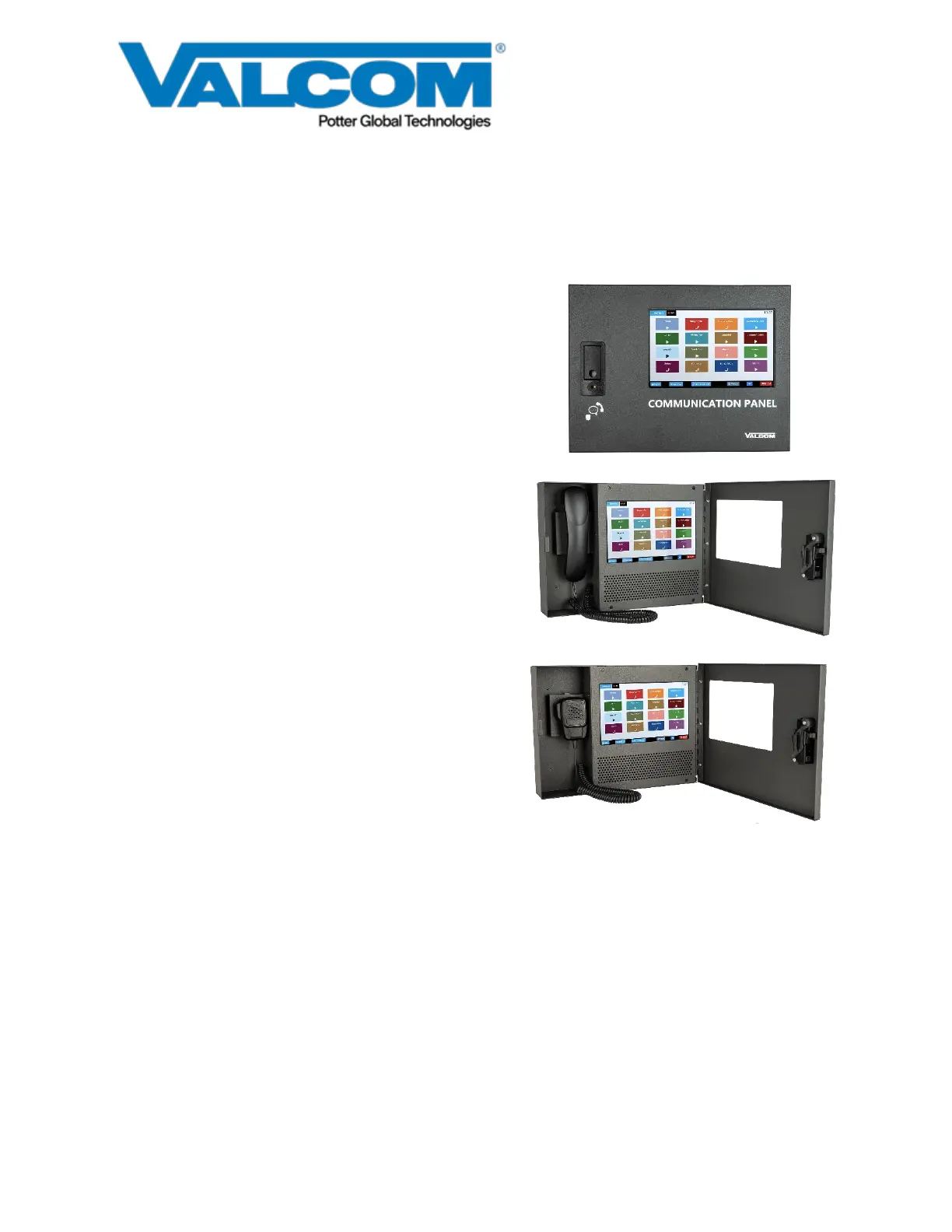

IP Communication Panels
VIP-TCHH & VIP-TCHC
INTRODUCTION
The VIP-TCH Communication Panels are
innovative touchscreen appliances that send live
voice, pre-recorded audio, and uploaded audio file
announcements to Valcom IP Multicast Page
Groups, IP speakers or horns, and VIP Page
Controllers. The VIP-TCH can also initiate and
receive intercom calls to or from Valcom IP
talkback-enabled endpoints or SIP telephones. The
Communication Panel can receive and play paging
announcements via its built-in speaker from other
Valcom IP gateways. The VIP-TCHH model is
equipped with a handset; the VIP-TCHC is
equipped with a handheld microphone with push-
to-talk button.
Applications
• Emergency Alert Terminal
• Public Address / Paging Console
• Intercom Answering Station
SPECIFICATIONS
Access Methods
• Touchscreen activation of announcements
• SIP protocol phone calls
• Valcom Page Controller
• Valcom Multicast Page Group
Features
• Wall-mounted interactive IP device with 10.1”
color touch screen display, loudspeaker, and
handheld microphone (VIP-TCHC) or handset
(VIP-TCHH)
• Lockable front cover
• Send pre-recorded audio files at the push of a
button
• Sends voice pages, either “Live” or Record &
Send for feedback elimination
• Makes/receives bidirectional voice calls to Valcom
IP and SIP endpoints
• Receives audio pages
• Simple configuration via web browser interface
• Power over Ethernet Plus (PoE+), or external 12
Vdc power adapter (not included)
VIP-TCHH
VIP-TCHC
Dimensions/Weight
Product:
• 15.4" W x 11.4" H x 2.8” D
(39.1cm W x 29.0cm H x 7.1cm D)
• 6.2 lbs. (2.8 kg)
Nominal Power Requirements
Power over Ethernet Plus (PoE+):
IEEE 802.3at compliant switch or injector
External via barrel connector:
Voltage: 12 Vdc
Current: 2A
(External Power Supply not included)
2 9471023
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
These products are intended for use with a UL Listed
power source marked “Class 2” or “LPS” rated 12 Vdc,
or 48 Vdc (PoE).
PoE and all interconnected ITE are intended for intra-
building.
Precautionary Designations
• WARNING: To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
• AVERTISSEMENT: Afin de réduire les risques
d'incendie ou de décharge électrique, évitez
d'exposer le système à la pluie ou à
l'humidité.
• Apparatus shall not be exposed to dripping or
splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
• L’appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme vase,
ne doit être placé sur l’appareil.
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in a
residential area may cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
INSTALLATION
Mounting
The VIP-TCH is designed for wall mounting to a solid
surface. Open the front cover and remove four screws
holding the Front Cover touch screen assembly to the
Base mounting box as shown in Figure 1. Mount the
Base to the wall using appropriate hardware.
Dimensions of mounting holes are shown in Figure 3.
Knockouts for conduit are available on the top side
and the back of the Base. Route the network ethernet
wiring into the Base using the appropriate knockout
and connect to the touch screen assembly. Network
connection is shown in Figure 2.
After mounting the Base and making the network
connection, reassemble the Front Cover to the Base
using the screws removed earlier.
Power and Network Connection
The VIP-TCH Communication Panel requires Power
over Ethernet Plus (PoE+) compliant with the IEEE
802.3at standard. Power will be supplied through the
network connection.
The VIP-TCH has one RJ-45 network connector on
the bottom of the touch screen panel. Connect the
ethernet network cable to the RJ-45 socket as shown
in Figure 2.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer. plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or
fonctionne pas normalement ou s'il est tombé.
