ASSEMBLY INSTRUCTIONS

Accessory Pack Contents (part number) (qty)

 SOCCER LEG ASSEMBLY 4

 BLACK PLASTIC PLAYER w/WEIGHT 20515222 13

 YELLOW PLASTIC PLAYER w/WEIGHT 20515232 13

 TWO MAN ROD (48 20606811 2 ⅜” long)

 THREE MAN ROD (43 20606821 2 ⅜” long)

 GOALIE ROD ( ) 20606831 2 41½” long

 FIVE MAN ROD (38 20606841 2 ⅞” long)

 BEARING WRENCH (Elite only) 20515191 1

 MAPLE HANDLE 21706700 8

 ROD SUPPORT BLOCK (2 ¾ X 2 ¾) 1

 SOCCER BALLS 20515170 3

 SCORE POST 20515181 4

 #10 x 2½SCORE POST MOUNTING SCREWS 20102490 4

 BLONDE SCORE DISK 21706640 5

 BLACK SCORE DISK 21706650 5

 SCORE POST ROD 20607500 2

 ROLL PIN PUNCH 21706670 1

 ROLL PIN 21706690 26

 BUMPER 20701060 16

 RULE BOOKLET 21706621 1

 SILICONE IN 2 oz. BOTTLE 988000125 1

Tools Required:

 SMALL HAMMER

 PHILLIPS SCREWDRIVER

 9/16” BOX-END OR SOCKET WRENCH

 ALL-PURPOSE CLEANER

(Fantastik, Formula 409, Windex or equivalent)

 CLEAN CLOTH

Contact your Distributor if any parts are missing or incorrect

1. Remove all parts and accessories from parts box and check against the enclosed list.

2. Turn the table upside down, taking care not to scratch or damage the top laminates or

Corner Caps (best to assemble on carpet).

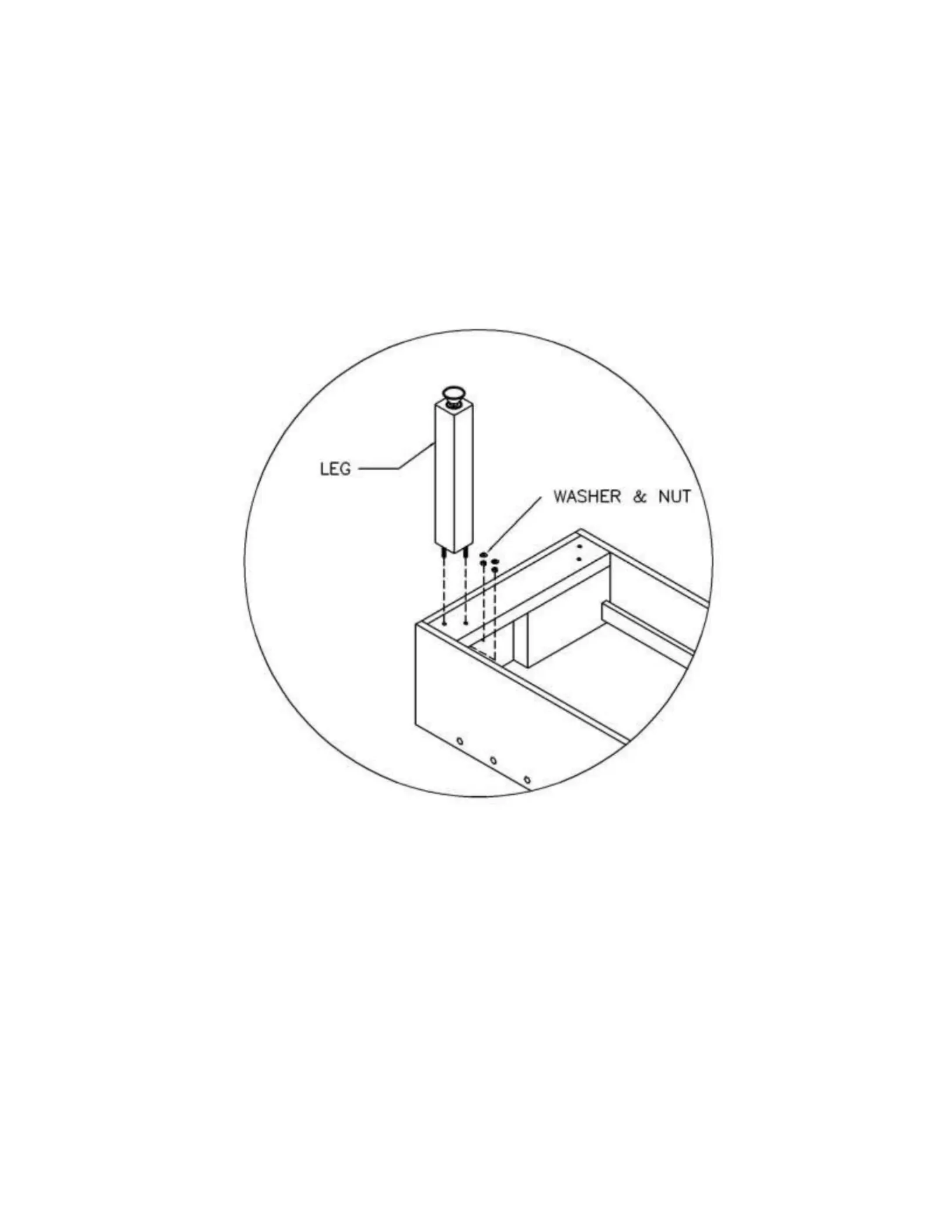

3. Remove the nuts and washers from each leg and insert the leg into the two diagonal

holes in the bottom of the game.

4. Assemble the nuts and washers to the leg bolts and finger tighten. Make sure each leg

is pulled squarely into the comer of the cabinet on all four sides before tightening

with a wrench. Be careful not to over-tighten the nuts. Make sure the Leg Levelers are

screwed in all the way.

5. it Have at least two people set the table upright. Wipe off with a damp cloth.

6. Thread the appropriate rods through the corresponding bearing hole (there are two

rods with holes for three players the SHORTER of these is the goalie rod. The –

LONGER is the actual “Three man rod”). Thread the rod through one side of the

cabinet and wipe a thin coating of silicone on the rod using a cloth or paper towel.

Thread one black rubber bumper onto the rod (make sure that the side of the bumper

with the holes always faces the cabinet wall).

7. Thread the appropriate number of men onto each rod (smiling face of black men

facing yellow goal and smiling face of yellow men facing black goal), followed by

another rubber bumper on the far end. Slide the end of the rod into the bearing hole

in the opposite cabinet wall.
