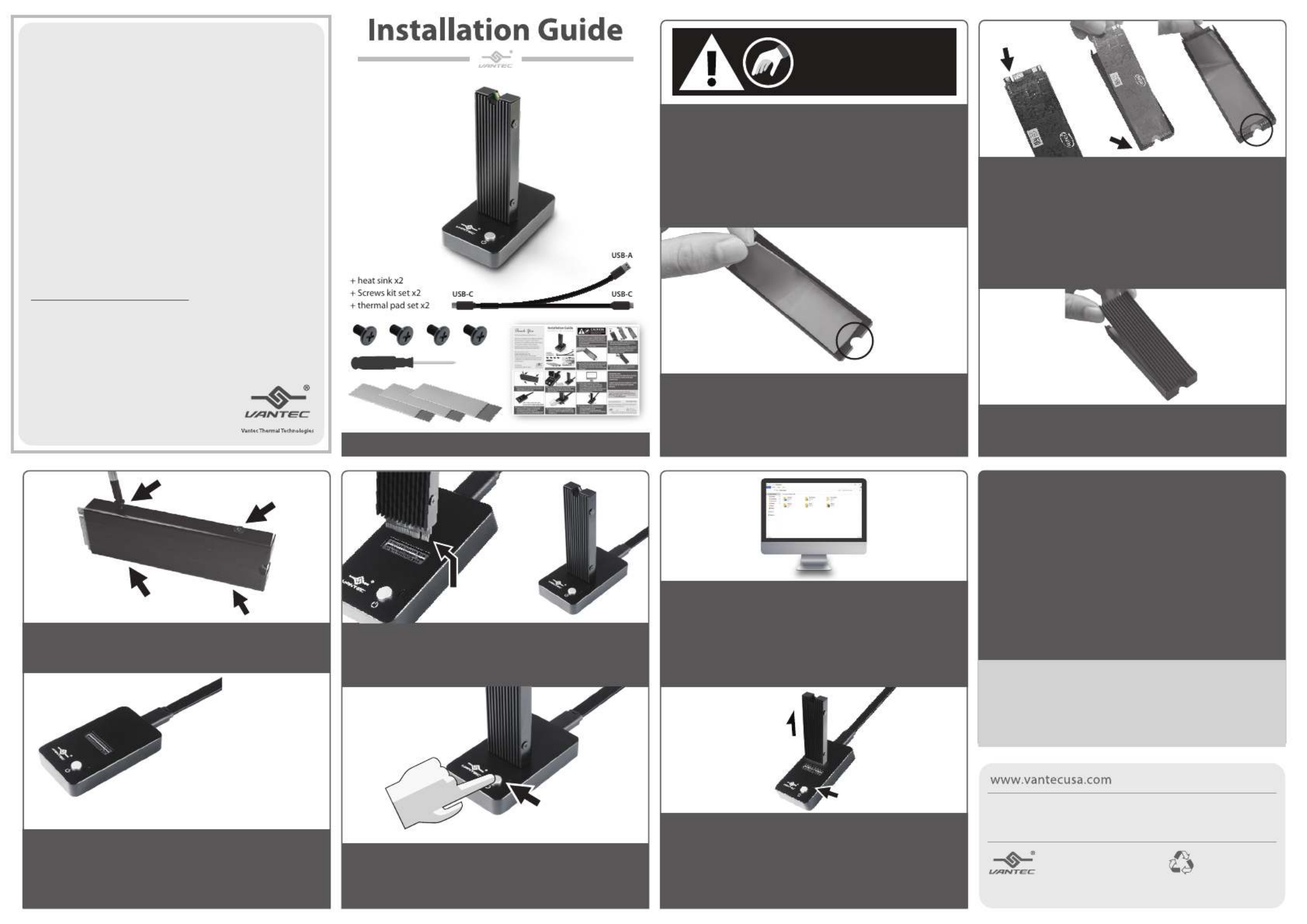

NST-D208C3-BK

Thank You

For Choosing VantecUSA Product.

We are committed to providing you with the

best service and support. If you have a

problem with installing, getting the product

to function or other product related

question, please feel free to write to us.

We will help you answer your question.

You can write to us at :

support@vantecusa.com

For the latest Drivers, Manual and

Frequently Asked Questions (FAQ), they are

available at our website at vantecusa.com

or write to us.

Thank you,

VantecUSA Support Team.

All Registered Trademarks Belong to Their Respective Compaines.

P d orinte n

R d P r.ec leyc ape

Info on e e t chan hout e.rmati in this docum nt is subj ct o ge wit notic

R on t i man r at w h t eproducti of hese mater s ial n y an ne wh soever it ou

w tt i i ictly rbi .ri en perm ss n io s str fo dden

v1.01

4. Align and set your NVMe module notch to the

same side as the notch on the metal casing with

the chip side facing the Thermal pad.

6. Place the heatsink with the notch on the same

side as the metal casing, press the heatsink to

ensure it is attached and secure.

8. Connect the USB cable to the DOCK and your

computer. If your computer is powered ON,

you should see a red LED on the DOCK

(the RED LED indicates the DOCK is getting power

from the USB Bus, BUT the DOCK POWER is OFF).

5. Use the THIN Thermal pad, peel o the protective

lm from one side and place it on the back of the

NVMe module without covering the notch as

shown. Once it is in place remove the other

protective lm o the pad.

7. Align the heatsink side hole to the metal casing

and fasten the four screws (two on each side) to

hold the NVMe module in place.

10. Press the power button to turn ON the DOCK

and the LED should turn white (the WHITE LED

indicates the DOCK is POWERED ON) the NVMe

is ready for use.

11. At this point, your system OS should

acknowledge a USB storage is connected.

If your NVMe is not new and contains data,

you can use the OS File Explorer to check.

If your NVMe is NEW, you need to prep (initialize,

partition and format) the NVMe using your

Operating System tools.

9. Insert your mounted NVMe into the NVMe slot on

the DOCK and make sure it is fully inserted.

NOTE the M key and align the interface correctly

before inserting it.

3. Use the THICK Thermal pad, peel o the protective

lm from one side and place it on the base metal

casing without covering the notch as shown.

Once it is in place remove the other protective lm

o the pad.

For detail, instruction refers to the FAQ

"How to preparing a New storage, Hard Drive, or

SSD for use with a system" on our website support

section at www.vantecusa.com

IMPORTANT NOTE:

DO NOT UNPLUG THE NVMe MODULE WHEN

THE LED IS WHITE, IT MAY CAUSE DATA

CORRUPTION.

ALWAYS TURN THE DOCK POWER OFF (SHOW

RED LED) BEFORE REMOVING THE NVMe

MODULE.

1. Verify the package contents.

2. STOP and CHECK This DOCK Supports M.2 NVMe

Module, it will not supports M.2 SSD (with M+B

Key) Before you unpack your NVMe module from

the manufacturer's packaging, please be aware

that this is a sensitive device and can be damaged

by Static Electricity.

Please ground yourself before handling them and

hold by the edge of the module.

Static Sensitive Devices

Handle with Care

CAUTION

12. To safely remove the NVMe, please press the

power button to turn OFF the DOCK before

removing the NVMe module.

The DOCK is OFF if you see the RED LED.

If you did not see the RED LED, DO NOT REMOVE

the NVMe module.

NOTE: On the provided Cable, ONLY

Connect either the USB Type C OR USB Type

A to your System. DO NOT CONNECT BOTH.

M-Key cut align

with Dock M-Key

M-Key

LED

Produkt Specifikationer

Mærke:	Vantec
Kategori:	Vugge & Dockingstation
Model:	NexStar NST-D208C3-BK
Tænd-/slukkontakt:	Ja
Bredde:	40 mm
Dybde:	68 mm
Højde:	12 mm
Vægt:	45 g
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 85 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 90 %
Driftstemperatur (T-T):	0 - 45 °C
Hurtig installationsvejledning:	Ja
Kabler inkluderet:	USB
Pakketype:	Kasse
Materiale:	ABS, Aluminium
LED-indikatorer:	Ja
Mac kompabilitet:	Ja
Understøttede Windows-operativsystemer:	Windows 10, Windows 7, Windows 8
Understøttede Linux-operativsystemer:	Ja
Værtsgrænseflade:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Maksimal dataoverførselshastighed:	10 Gbit/sek.
Oprindelsesland:	Taiwan
Opbevaringsmedietype:	SSD
Grænseflade til lagerdisk:	M.2
Understøttede lagerdisk størrelser:	M.2 "
