V-AVD99
MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 5” TFT
DISPLAY AND TV TUNER
Instruction manual
DVD/CD/MP3- 5”
TFT .
V-AVD99
3
Important safeguards
Using the device at temperature below -10º may cause the breakage of the device. Before using please
heat up the passenger compartment to the recommended temperature!
Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher
amperage rating may cause serious damage to the unit.
Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
Do not use the unit in places where it can be exposed to water, moisture and dust.
Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or
create safety hazards such as electrical shock or laser beam exposure.
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car
becomes normal before operating the unit.
Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
Make sure you disconnect the power supply and aerial if you will not be using the system for a long period
or during a thunderstorm.
Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an
unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a
qualified technician check the system.
The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please
confirm it before installation.
Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may
overload or burn out the power amplifier.
V-AVD99
7
Electrical connection
Notes:
The user can connect the 4 RCA to the external amplifier; please connect “backstage (rear) out” to the
“rear input” of the external amplifier. When you use the Dual zone play function for
Radio/DVD/SD/MMC/USB, the Front out should be connected with the front speaker (L/R) for the
V-AVD99
18

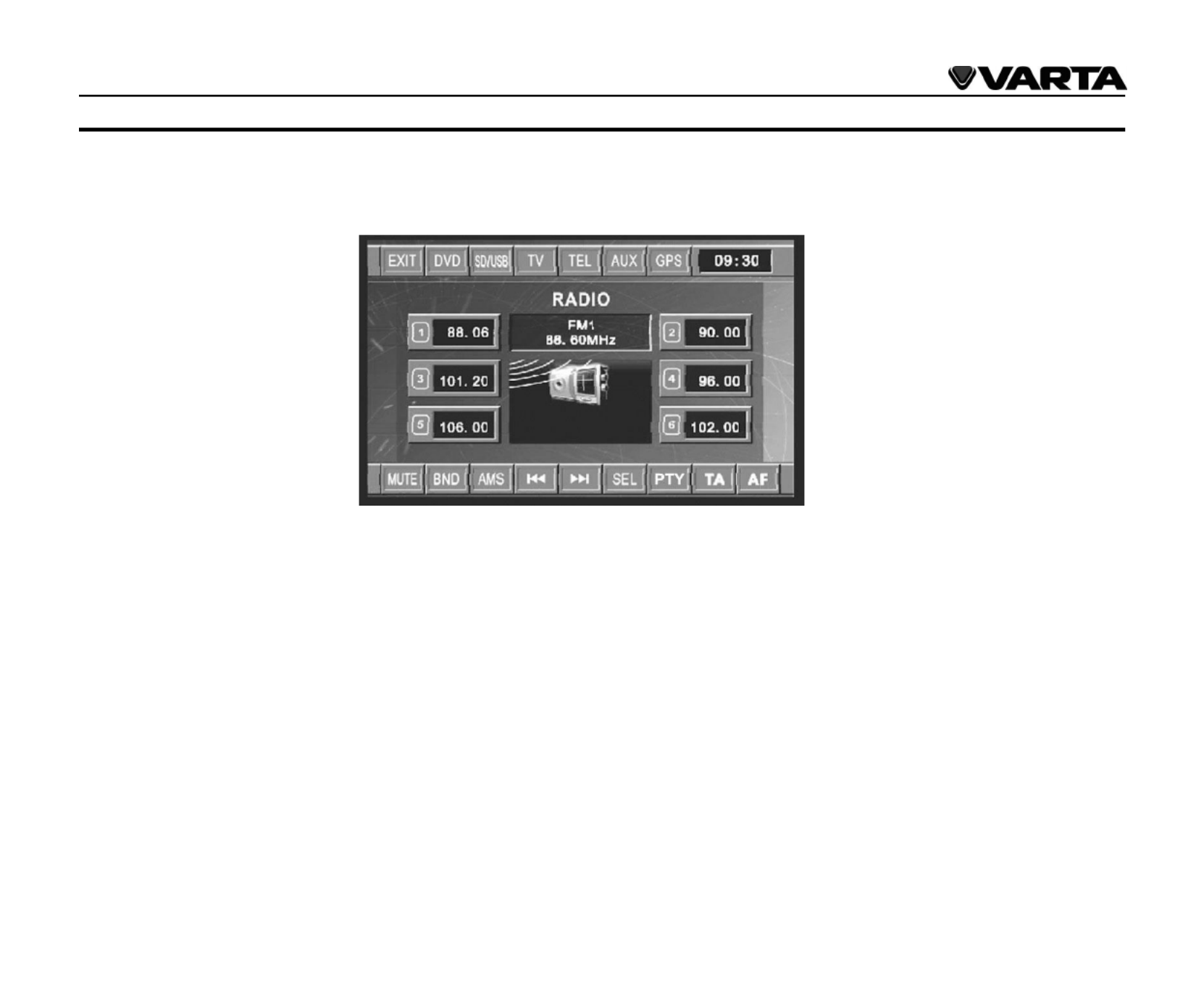

Radio operation
This unit is equipped with a touch screen. To perform various operations you can use buttons on the RC, on the
front panel as well as screen touchable buttons.
Band selection
Press BAND button repeatedly to select FM1, FM2, FM3, AM1, AM2. Display will show the wave band,
frequency and preset station number if already stored. To select a band you can also press BND button on the
touchable screen.
Note: Please don't switch the band quickly, otherwise, you will see there is a mixing FM and AM frequency.
Manual/Automatic tuning
Manual tuning: Press CH+/- buttons on the RC or correspondent buttons on the screen to select a station
upward or downward step by step.
Automatic tuning: Press and hold for 3 seconds CH+/- buttons on the RC or correspondent buttons on the
screen, the automatic search will start. It will play when finds the station.
V-AVD99
23
Loading a disc
Press EJECT button on the panel to flip it down. Insert the disc with the printed side facing upward into the
slot. Close the panel. The disc will be loaded and played automatically. If the unit is in another mode, press
MODE button on the RC or SRC button on the unit to select DISC mode.
Press EJECT button on the panel to eject the disc.
Inserting a SD/MMC card/USB device
Insert the MMC/SD card into the corresponding slot on the top of the panel and insert USB device into the USB
jack on the panel. The unit will automatically switch to the needed mode.
If a USB driver is connected to the unit, the unit cannot switch to SD/MMC reading mode automatically when
you insert a SD/MMC card, except after taking out the USB. If the unit is reading the files in the SD/MMC
card, the unit cannot switch to USB reading mode automatically when you connect a USB driver, except after
taking out the SD/MMC card.
Note: Some USB driver models cannot be supported by this unit.
Playing/pausing
When the disc/card/USB has been loaded, the playback of the first track starts automatically. To ensure good
system performance, wait until the unit finishes reading the disc information before proceeding. Or press the
PLAY/PAUSE/AMS button on the RC or PLAY/PAUSE button on the panel to start playback. Press it again to
pause the playback. Press again to resume the playback.
Stop playback
During playback, press STOP button on the RC. Playback will be stopped.
For DVD discs: If PLAY/PAUSE/AMS button on the RC is pressed or PLAY/PAUSE button on the panel,
playback will start from the position at which it was stopped. If the disc is removed, the resume function is
cancelled. Press STOP button on the RC again to finally stop the playback.
