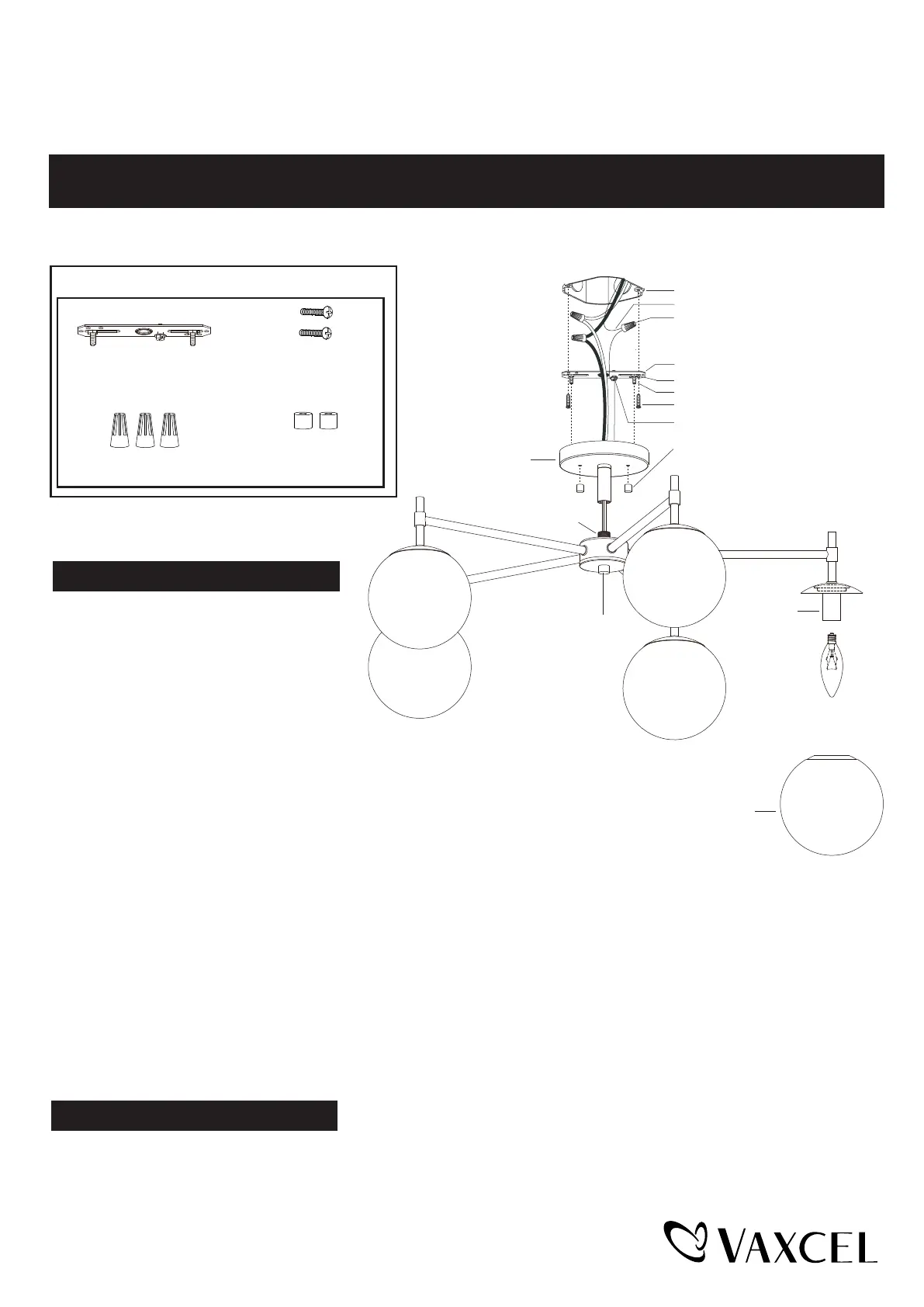

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Bolt Nut (D)

Canopy

Socket

Max. 40W

Glass Shade

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

C0297

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Outlet Box

House Ground Wire

Wire Connector (C)

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

Candelabra Bulb

(not included)

Page 1 / 2

230616

Coupling

Turn on the power at fuse or circuit box

1. Thread the fixture wire through the canopy,

then secure the fixture to the canopy with

coupling.

. Attach the mounting strap unit (A) to the

outlet box by using two mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using

wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire

from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white

wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with

green ground screw, then depending on local code, connect it to the house

ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the canopy to the mounting

strap

unit (A) by inserting the fixture mounting screws, then secure it with

two bolt nuts (D).

5. Install 5 x 40W Max. candelabra base bulbs (not included). See relamping label at socket area or packaging for

maximum wattage allowed.

6. Attach the glass shades onto the sockets and tighten them.

Turn off the power at fuse or circuit box

Installation Steps

Hardware Package (included):

Wire Connector (C)

Mounting Screw (B)

Mounting Strap Unit (A)

Bolt Nut (D)

Fixture
