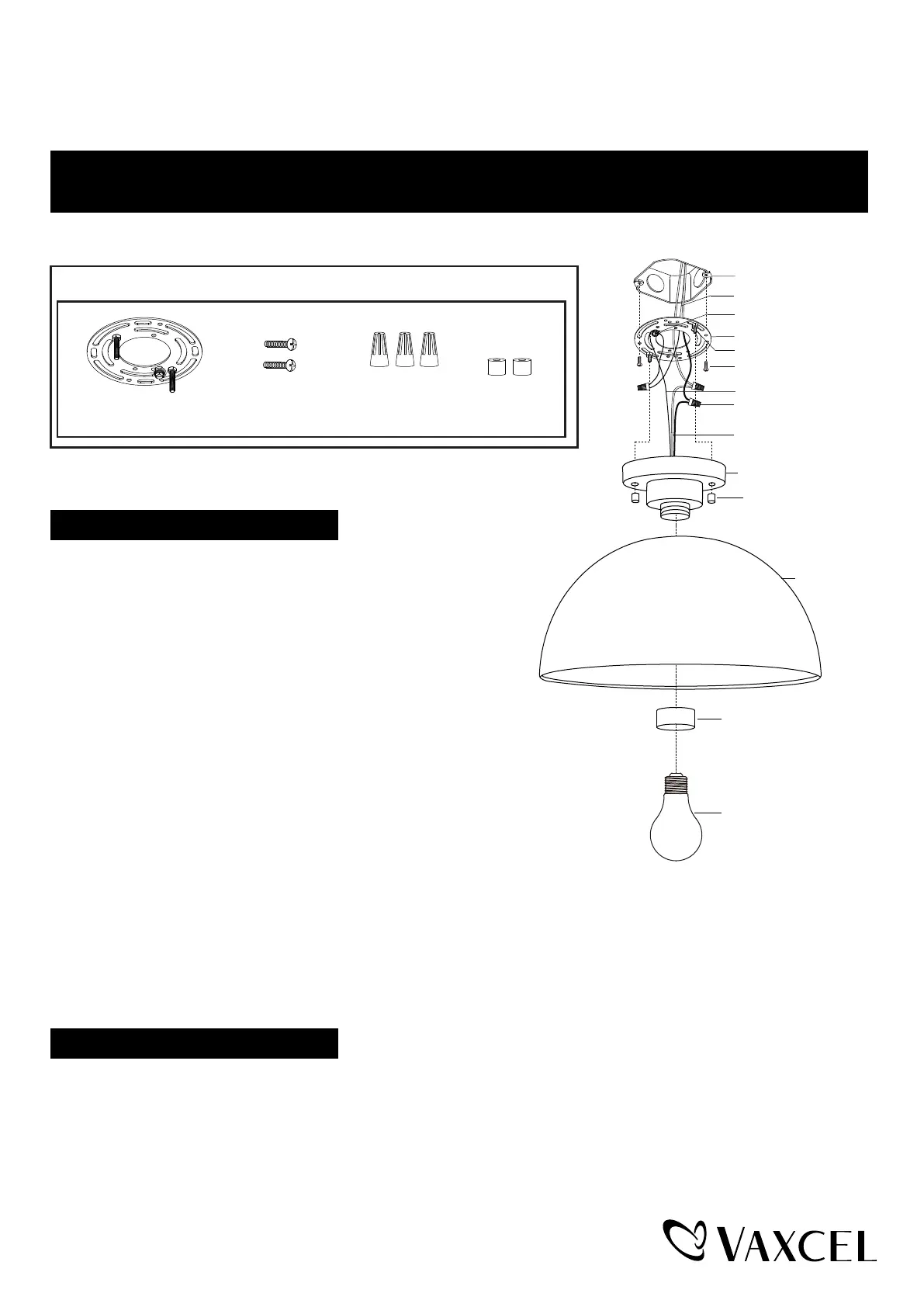

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

C0305 / C0306

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

Installation Steps

. Attach the mounting plate unit (A) to the outlet box by

using two mounting screws (B).

2. Pull out the source wires from the outlet box. Make wire

connections using wire connectors (C) as follows:

---Connect the hot wire (black insulation) from the fixture

to the black wire from the power source.

---Connect the neutral wire (white insulation) from the

fixture to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the

mounting plate unit (A) with the green ground screw,

then connect it to the house ground wire with the

wire connector (C) .

Carefully put the wires back into the outlet box.

3. Attach the fixture to the mounting strap unit (A) by inserting the

fixture mounting screws, then secure it with two bolt nuts (D).

4. Attach the shade to the fixture and secure it with socket ring.

5. Install 1 x 60W Max. medium base bulb (not included).

See relamping label at socket area or packaging for maximum

wattage allowed.

231120

Wire Connector (C)Mounting Screw (B)

Mounting plate Unit (A)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Wire

Fixture

Outlet Box

Shade

Socket Ring

Fixture Mounting Screw

Mounting Plate Unit (A)

Bolt Nut (D)

Page 1 / 2

Max. 60W Type A Bulb

(not included)
