Fixture

Fixture Wire

Chain

Loop

Fixture Grounding Wire

1. Attach the nipple to the mounting strap, then secure

it with a washer and hex nut.

2. Attach the mounting strap to the ceiling box by using

two mounting screws.

3. Choose the length of the chain you need, then weave

the fixture wire and the fixture grounding wire through

the chain links. Spread one end of chain link to clamp

securely to the loop.

4. Secure the top loop to the nipple.

5. Thread the fixture wire and fixture grounding wire

through the collar, canopy, top loop, nipple and

mounting strap.

6. Clamp the other end of chain link to the top loop.

7. Pull out the outlet wires and housing wire from the outlet

box. Make wire connections using the wire nuts:

---The smooth wire (marked) from the fixture to the

black wire from the power source.

---The ridged wire (unmarked) from the fixture to the

white wire from the power source.

--- Attach the fixture grounding wire to the cross bar

with the green grounding screw. Then connect it

to the house grounding wire with a wire nut.

Carefully tuck the wires back into the ceiling box.

8. Attach the canopy to the mounting strap by inserting

the top loop, then secure it with the collar.

9. Install a bulb (not included). See relamping label at

socket area or packaging for maximum allowed

wattage.

10. Turn on the power at the main fuse or circuit breaker box.

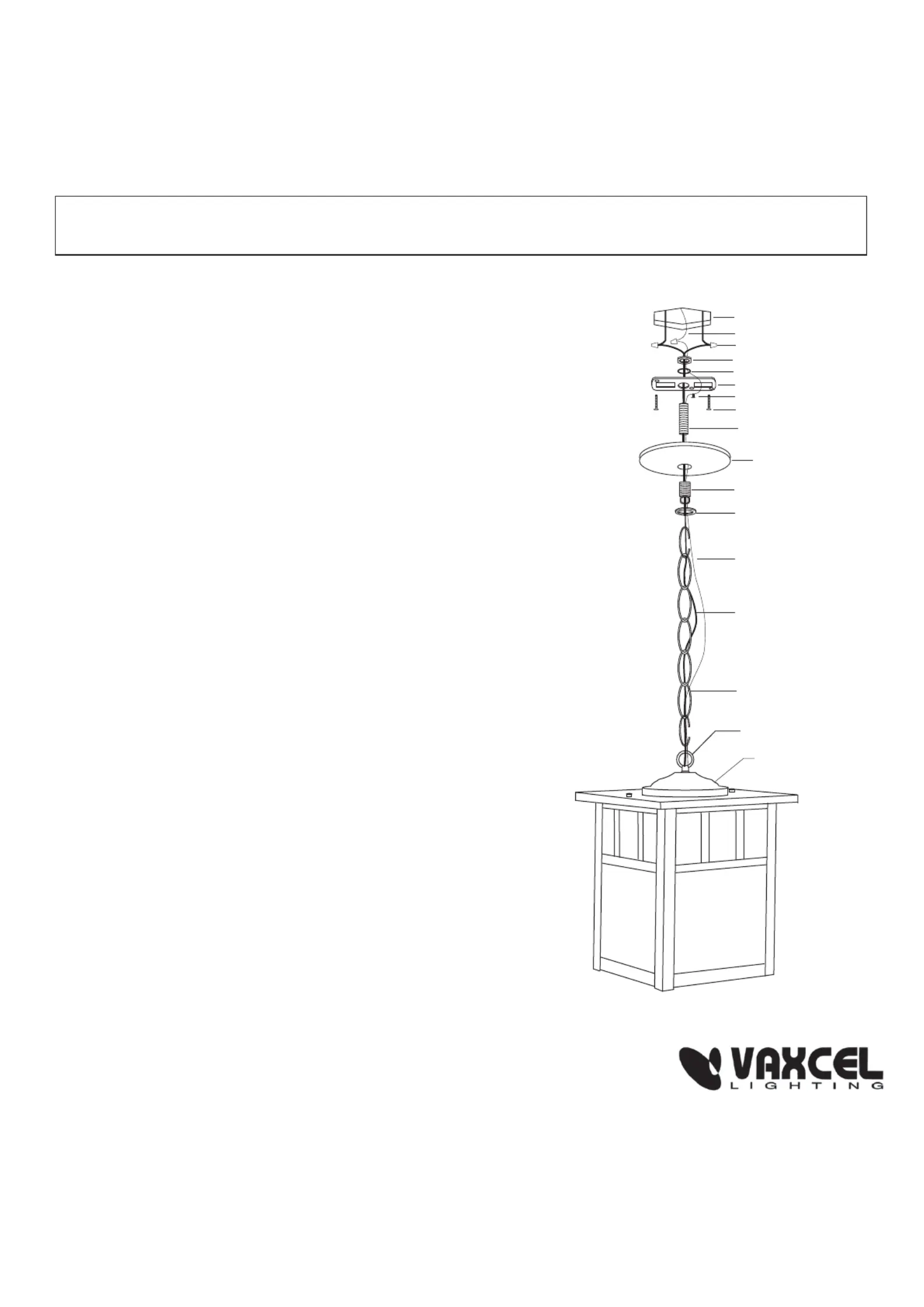

Mounting Screw

Nipple

Collar

Top Loop

Canopy

Mounting Strap

Green Grounding Screw

Hex Nut

Wire Nut

Washer

Ceiling Box

House Grounding Wire

060116

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.

OD37276/OD37296/OD14676/OD14696
