ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
CF38815OL
WARNING:
TO AVOID RISK OF ELECTRICA L SHOCK, BE SURE TO SHUT OFF
POWER WHILE INST ALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.

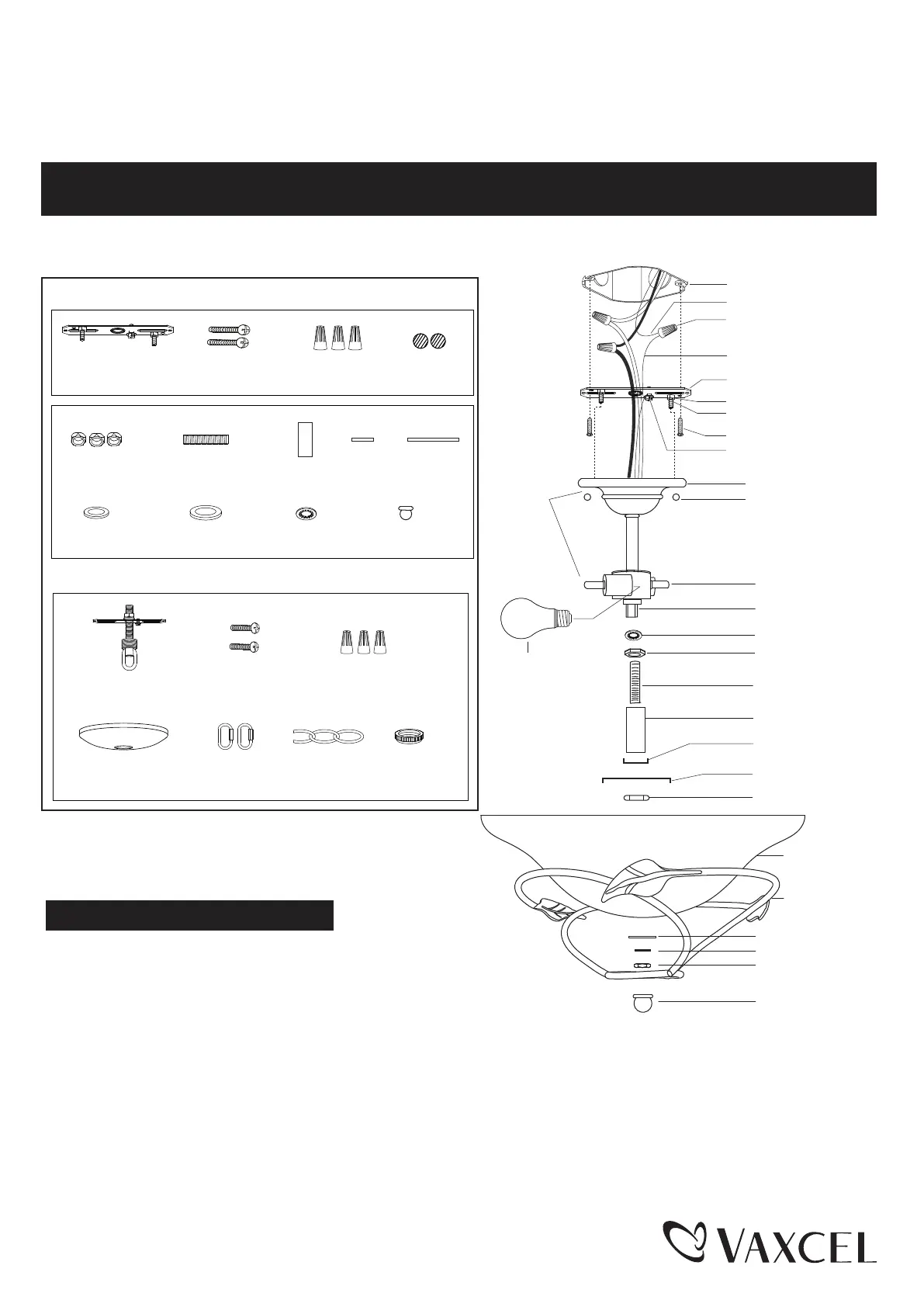

Installation Steps
Outlet Box
House Ground Wire
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Fixture Ground Wire
Wire Connector (C)
1. Attach the mounting strap unit (A) to the outlet box by
using two mounting screws (B).
2. Screw the threaded pipe (F) into the coupling
on the socket base, then secure with a hex
nut (E) and washer (L).
3. Attach the tube (G) and cap-1 (H) to the coupling by
inserting the threaded pipe (F), then attach cap-2 (I)
to the hex nut (E).
Canopy-1
Bolt Nut (D)
Fixture
Socket Base
Coupling
Hex Nut (E)
Washer (L)
Threaded Pipe (F)
Tube (G)
Cap-1 (H)
Hex Nut (E)
Cap-2 (I)
Max. 100W Medium
Base Bulb (not included)
For Ceiling Light:
Page 1 / 4
Hardware Package for Semi-Flush (included):
Hardware Package for Pendant (included):
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Mounting Strap Unit (A)
Stem (G) Cap-1 (H) Cap-2 (I)
Washer
(L)
Finial
(M)
Threaded Pipe (F)
Hex Nut (E)
Rubber Pad (J) Metal Pad (K)
Mounting Strap Unit (N) Wire Connector (P)Mounting Screw (O)
Canopy (Q)
Quick Link (R)
Chain (S)
Collar (T)
Glass Shade
Decoration Ring
Rubber Pad (J)
Metal Pad (K)
Hex Nut
Finial
240306
