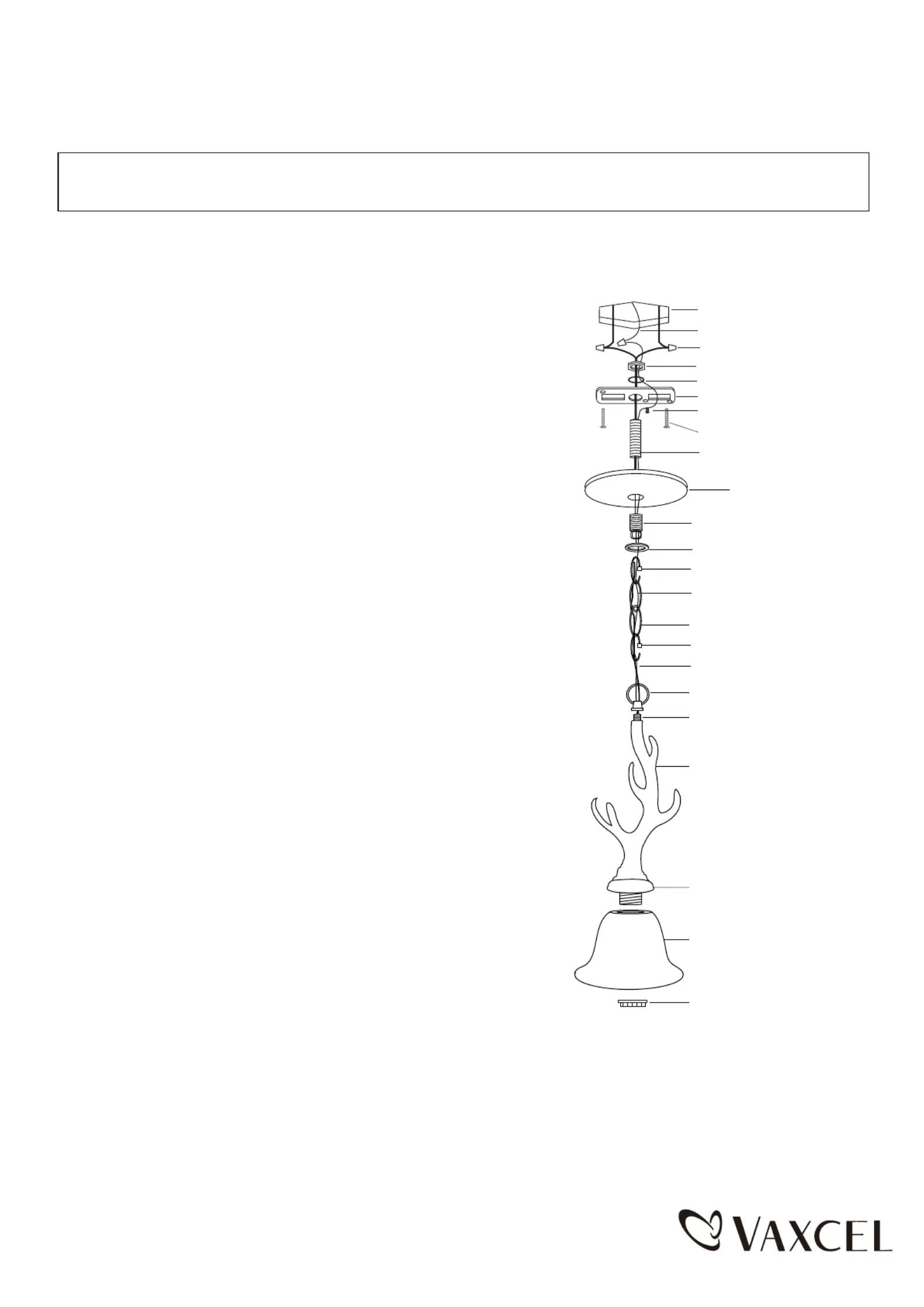

Fixture Wire

Chain

Grounding Wire

Collar

Top Loop

Canopy

Loop Lock

Loop

Fixture

Glass Holder

Glass Shade

Socket Ring

1. Attach nipple(-a) to the mounting strap, then secure it with

a washer and hex nut.

2. Attach the mounting strap to the outlet box by using two

mounting screws.

3. Secure the top loop to nipple(-a).

4. Thread the fixture wire and fixture grounding wire through

the loop, and then secure the loop onto nipple(-b).

5. Choose the length of the chain you need, then weave the

fixture wire and the fixture grounding wire through the

chain, collar and canopy.

6. Connect one end of the chain with the loop by using a

loop lock.

7. Connect the other end of the chain with the top loop by

using another loop lock.

8. Thread the fixture wire and fixture grounding wire through

the top loop, nipple(-a) and mounting strap.

9. Pull out the outlet wires and house grounding wire from the

outlet box. Make wire connections using the wire connectors:

---The smooth wire (marked) from the fixture to the black

wire from the power source.

---The ridged wire (unmarked) from the fixture to the

white wire from the power source.

---Attach the fixture grounding wire to the mounting

strap with the green grounding screw. Then connect

it to the house grounding wire with a wire .

Carefully put the wires back into the outlet box.

10. Attach the canopy to the mounting strap by inserting

the top loop, then secure it with the collar.

11. Attach the glass shade to the glass holder, and then

secure it with socket ring.

12. Install a bulb (not included). See relamping label at

socket area or packaging for maximum allowed wattage.

13. Turn on the power at the main fuse or circuit breaker box.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

PD33057

Mounting Screw

Nipple(-a)

Nipple(-b)

Mounting Strap

Green Grounding Screw

Hex Nut

Wire Connector

Washer

Outlet Box

House Grounding Wire

070611
