220726
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
H0272
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.

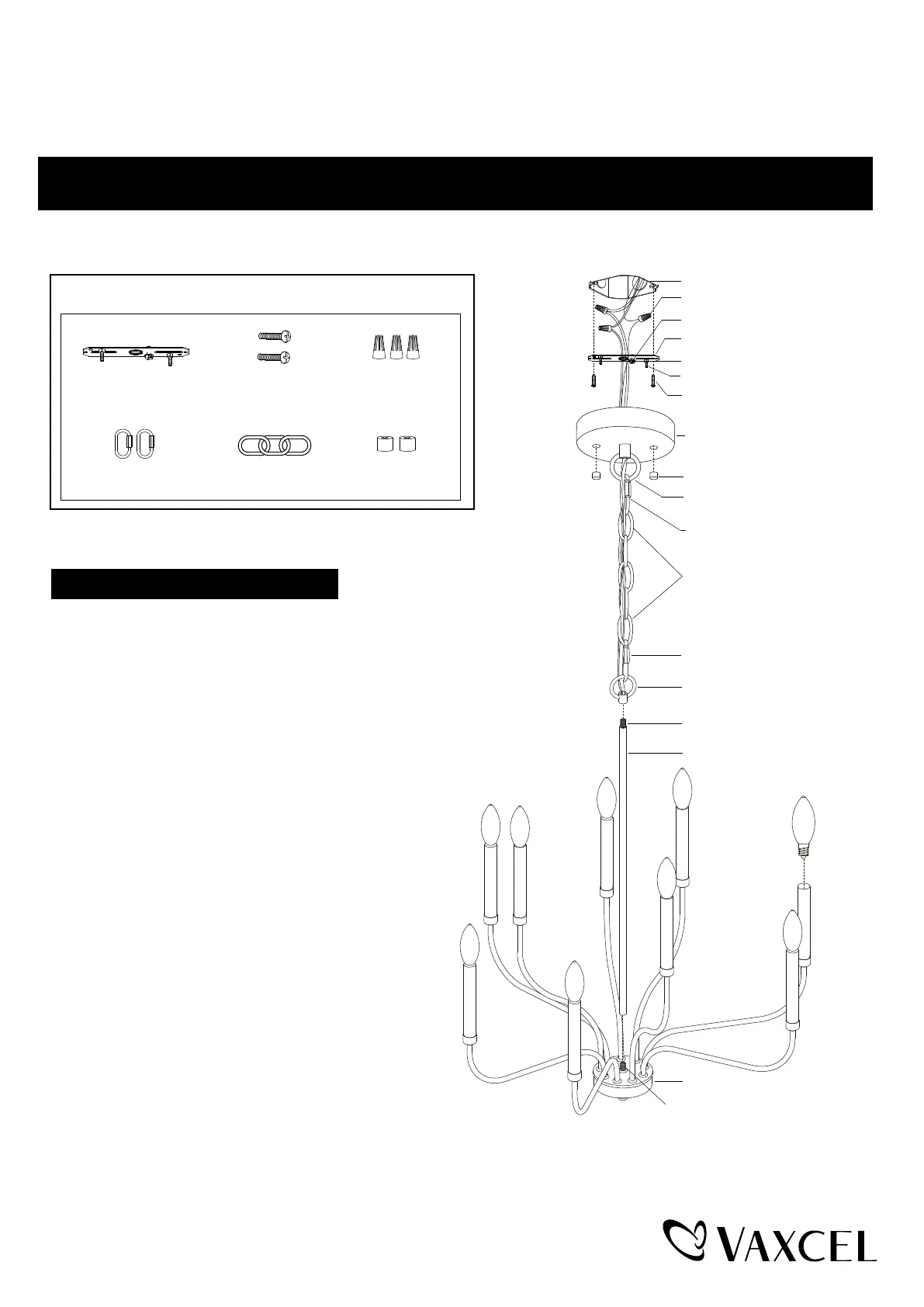

Installation Steps
Hardware Package(included):
Mounting Strap Unit (A) Wire Connector (C)Mounting Screw (B)
Quick Link (D)
Chain (E) Bolt Nut (F)
1. Attach the mounting strap unit (A) to the outlet box by
using two mounting screws (B).
2. Adjust the arm of the fixture according to the picture on the package.
3. Secure the rod onto fixture using the threaded pipe and secure the
fixture loop onto the rod.
4. Choose the length of the chain (E) you need,
use pliers (not included) to open and remove
excess chain section, then weave the fixture
wire and the fixture ground wire through the
chain (E) and canopy.
5. Connect one end of the chain (E) with the
loop by using a quick link (D). Connect the
other end of the chain (E) with the fixture
loop by using another quick link (D).
6. Thread the fixture wire and fixture ground wire
through mounting strap unit (A).
7. Pull out the outlet wires and house ground wire
from the outlet box. Make wire connections using
the wire connectors (C):
---The smooth wire (marked) from the fixture to the
black wire from the power source.
---The ribbed wire (unmarked) from the fixture to
the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the
mounting strap unit (A) with the green ground
screw, then connect it to the house ground wire
with a wire connector (C).
Carefully put all the wires back into the outlet box.
Canopy
Bolt Nut (F)
Quick Link (D)
Fixture Loop
Quick Link (D)
Loop
Rod
Fixture
Threaded Pipe
Threaded Pipe
Max.60W
Candelabra base bulb
(not included)
Chain (E)
Mounting Strap Unit (A)
Lock Nut
Mounting Screw (B)
Wire Connector (C)
Fixture Mounting Screw
Green Ground Screw
Outlet Box
Page 1 of 2
