L SHOCK, BE SURE TO SHUT OFF

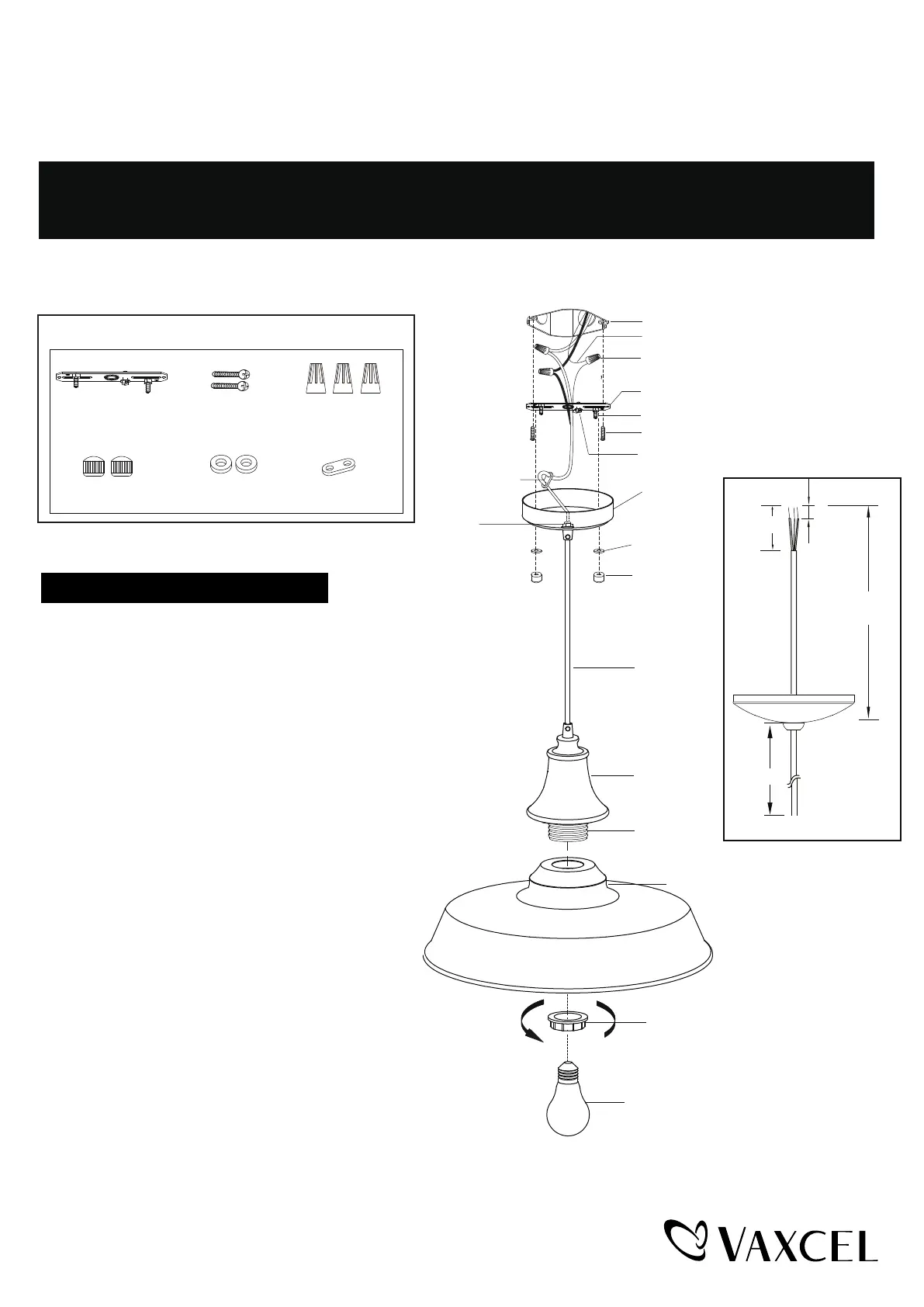

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

1. Measure the desired length of the cord (a) from the canopy

to the shade and leave additional 9" cord (b) above the

canopy (include the canopy). Then cut off the unnecessary

cord. (See Fig.1)

2. Adjust strain relief (F) at 9" position from the top of the cord.

3. Mark the 3" cord (c) from the top of the cord (b).

Use a knife to peel off the insulation of the cord

(See Fig.1)

Caution : Cutting too deep may cut off three

inside wires and destroy the insulation surface

of the three inside wires.

4. Peel off the 3 wires from the top about 3/8" long (d)

to expose the copper for wiring.

Attach the mounting strap unit

(A)

to outlet box by

using two mounting screws (B).

Bolt Nut (D)

Mounting Strap Unit (A)

Mounting Screw (B)

Wire Connector (C)

Rubber Pad (E)

Strain Relief (F)

Outlet Box

House Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Fixture Mounting Screw

Green Ground Screw

Mounting Screw (B)

Canopy

Bolt Nut (D)

Cord

Holder

Socket

Shade

Socket Ring

Max. 60W Type A Bulb

(not included)

Strain Relief (F)

Hex Nut

c (3")

d (3/8")

b (9")

Fig.1

Rubber Pad (E)

Page 1 / 2

T0373 / T0374 / T0485 / T0489

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

230321
