ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0447 / W0448
Turn on the power at fuse or circuit box.
W
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.

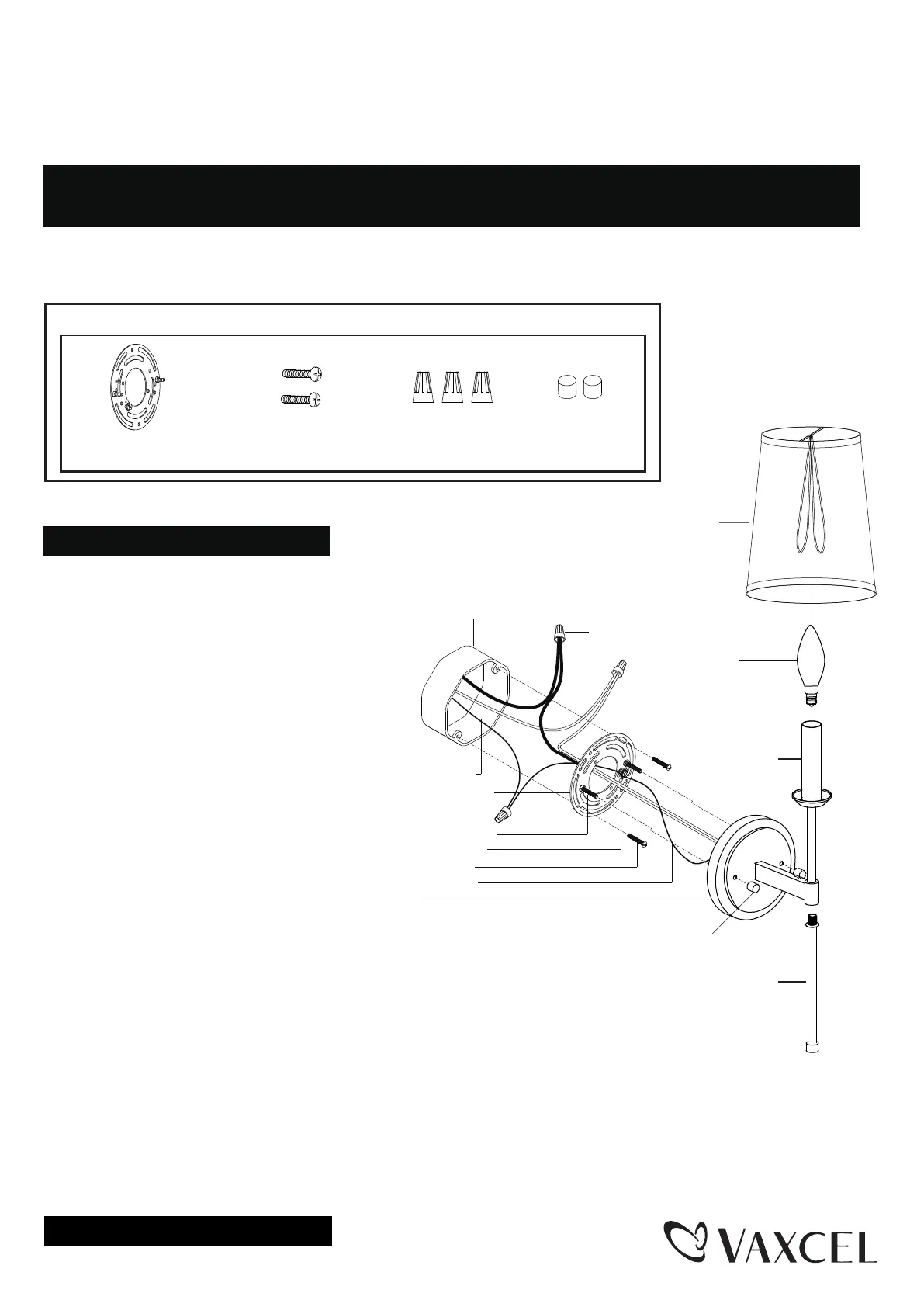

Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)Mounting Plate Unit (A)
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two bolt nuts (D), remove
the mounting plate unit (A) from the backplate.
2. Attach mounting plate unit (A) to the
outlet box using two mounting screws (B).
Adjust the length of the preinstalled fixture
mounting screws if necessary.
Note: Make sure that the fixture
mounting screws are lined up
horizontally to make the fixture level.
3. Pull out the wires and ground wire from
the outlet box. Make wire connections
using the wire connectors (C) as follows:
---Connect the hot wire (black insulation)
from the fixture to the black wire from
the power source.
---Connect the neutral wire
(white insulation) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green
ground screw, then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
4. Attach the backplate to the mounting plate unit (A) by aligning and inserting the two fixture
mounting screws from the mounting plate unit (A) into the open holes on the backplate,
then screw it with the two bolt nuts (D).
5. Secure the tube to the fixture.
6. Install 1 x 60W Max. candelabra base bulb (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
7. Rotate the shade onto the fixture.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Page 1 / 2
Backplate
Bolt Nut (D)
Tube
Fixture Ground Wire
Outlet Box
Wire Connector (C)
House Ground Wire
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Mounting Screw
Max. 60W
Candelabra Bulb
(not included)
Shade
Fixture
