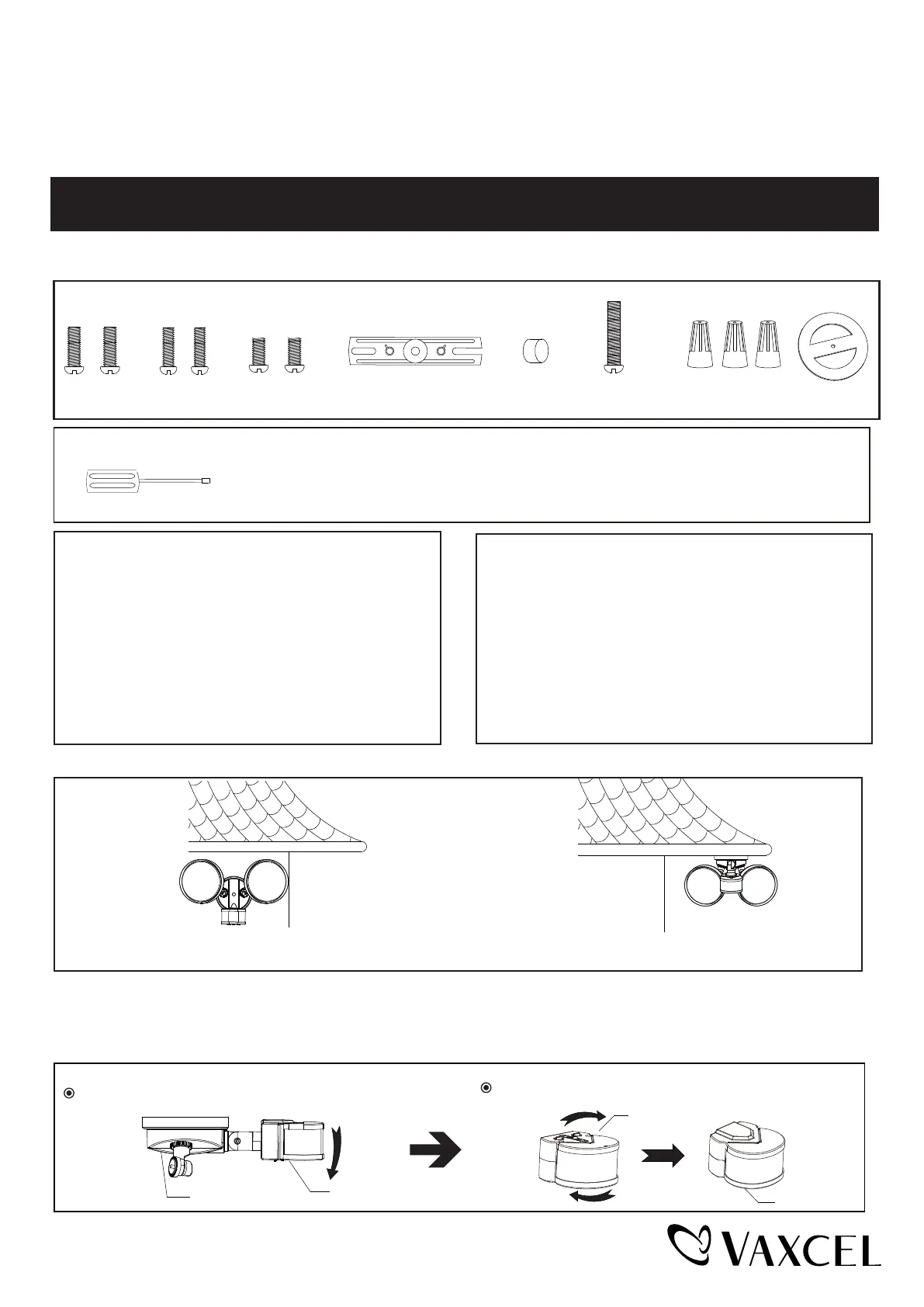

Important to Know:

1. If you are not familiar with state and local electrical

codes, it is recommended that you consult with a

qualified electrician.

2. This fixture requires a 120 VAC, 60 Hz power

source.

3. For general safety and to avoid any possible

damage to the sensor, be sure the power is

switched "off" before adjustment.

Maximum Wattage: 2-150 W (bulb not included)

Working Temperature Range: - 13°F ~ 113°F

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0696 / T0697

Features:

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Note: Fixture can be wall mounted or eave mounted.

Wall Mounted

Eave Mounted

Read notes section on page 4 for additional information about mounting location of fixture.

Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)

Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for

proper operation and to avoid the risk of electrical shock.

1. Motion sensor: turns light ON automatically when

motion is detected and turns light OFF or remains

in low-level brightness when motion stops.

2. Photocell keeps the light OFF during daylight hours.

Hardware Package (included):

Decorative cover

Fixture Mounting Screw

Mounting Strap

Wire Connector

Gasket

Mounting Screw X2

#8/32X1/2 in

Mounting Screw X2

#6/32 X1/2 in

Mounting Screw X2

#10/24 X1/4 in

For eave mounted only:

Rotate the sensor head towards the back plate.

Rotate the sensor head clockwise 180˚ so the controls face down.

Controls

Backplate

Controls

(1) Phillips-head Screwdriver

1. Phillips-head screwdriver for attaching mounting screws to

mounting strap, mounting bracket and fixture to mounting bracket.

Tools Needed:

221031
