PROMIX100 STEREO MIXER 4 CHANNELS + 2 MICROPHONE CHANNELS
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PROMIX100! You have chosen an excellent multifunctional stereo mixer which meets the
most stringent requirements with reference to both home and professional applications. It is equipped with one
control function per level allowing all connected components to be tuned individually. The output display will facilitate
your choice of level. Please read the manual thoroughly before bringing this device into service. If the device was
damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions
This unit uses potentially lethal voltage doses. Refrain from opening the cabinet in order to avoid electroshocks.
Do not expose to the sun or other heat sources for any period of time.
Handle the controls with care: avoid rough movements and do not drop or smash the set.
The connections between the mixer and the rest of the equipment should be checked carefully. Faulty
connections or defective shielding may cause buzzing sounds.
3. Front Panel and its Controls
(fig. 1)
13
14
12
1115
10 7
6
5
4
3
2
1
9
8
PROMIX100 VELLEMAN
2
1. POWER switch
2. OUTPUT DISPLAY
3. MONITOR switch
4. Monitor LEVEL control
5. Headphone jack
6. Volume control for LINE 4
7 Volume control for LINE 3
8. Input selector for PHONO 2 or LINE 2
9. Input selector for PHONO 1 or LINE1
10. Volume control for PHONO 2 or LINE 2
11. Volume control for PHONO 1or LINE 1
12. Volume control for MIKE 2 and MIKE 4
13. Volume control for MIKE 1 and MIKE 3
14. 6.3mm jack for MIKE 1
15. 6.3mm jack for MIKE 2
4. Rear Panel and its Controls

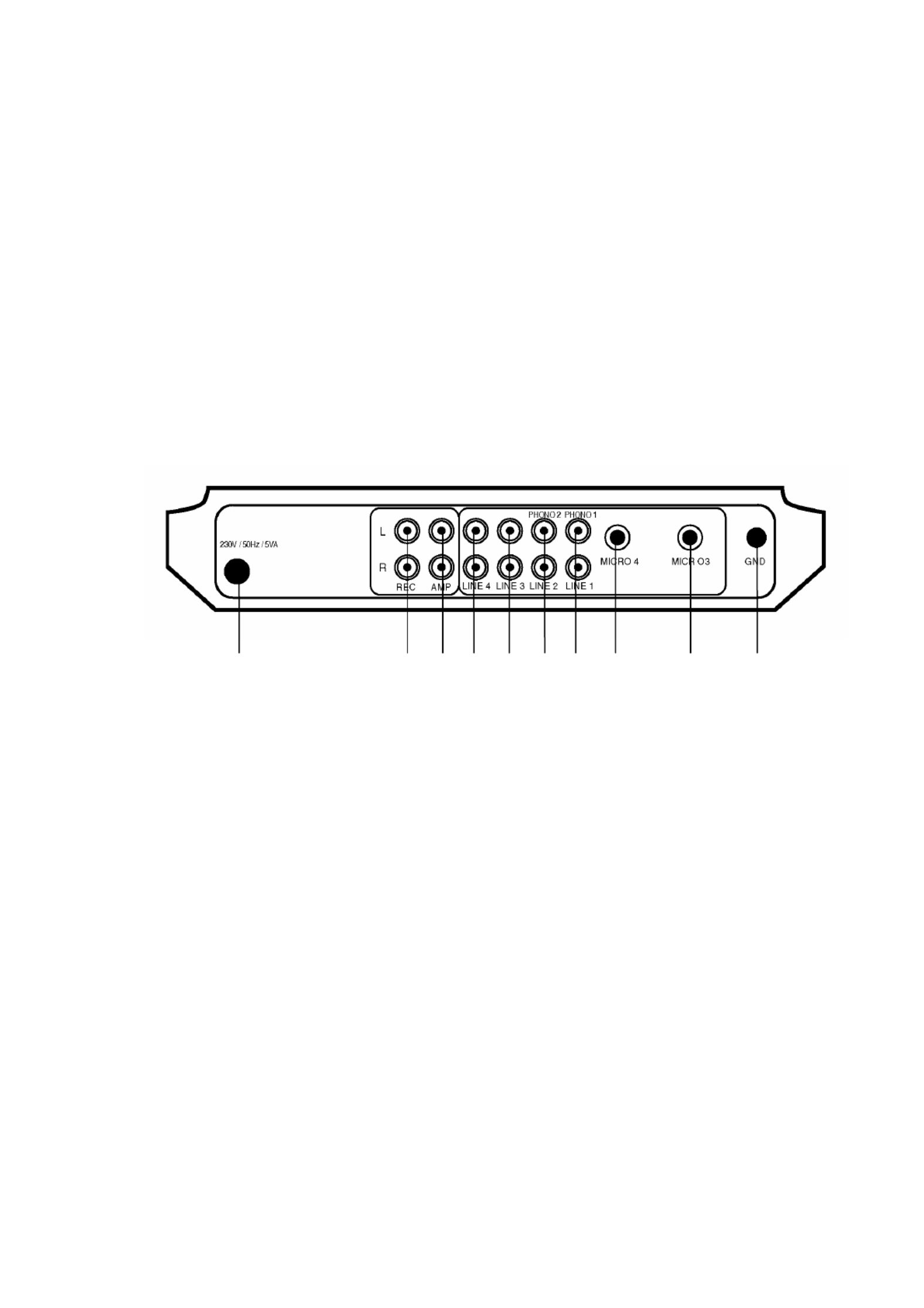

(fig. 2)
16. Power supply cable
17. Record output jacks L/R REC
18. Main output jacks L/R AMP
19. Input jacks L/R LINE 4
20. Input jacks L/R LINE 3
21. Input jacks L/R PHONO 2 or LINE 2
22. Input jacks L/R PHONO 1 or LINE 1
23. 6.3mm jack for MIKE 4
24. 6.3mm jack for MIKE 3
25. Earth terminal screw: counters humming sounds.
5. Connections
All connections have to be made correctly in order for the device to work properly.
1. If you wish to turn the apparatus off, simply put the "POWER" switch (1) in the "off" position. All connections must
be established when the apparatus is off. In other words, make sure that all linear controls (4, 6, 7, 10-13) are at
zero.
2. Insert the supply cable plug (20) into the current socket.
3. All necessary inputs are connected to cinch plugs through shielded cables. The output jacks are connected to a
stereo unit, also through shielded cables.
4. Microphones: up to 4 microphones can be connected to this mixer through the 6.35mm plugs (14, 15, 26, 28).
Please use a suitable adapter if your microphones are equipped with a different type of plug.
5. Compact disc players, cassette recorders, video recorders, tape recorders and other high level audio signal
sources as well as amplifiers should be connected to the cinch sockets (23, 24).
6. A record player with a magnetic pick-up can be connected to the cinch sockets (25, 26).
16
17
18
19
20
21
22
23
24
25


Produkt Specifikationer

Mærke: Velleman
Kategori: Blander
Model: PROMIX100
Vægt: 985 g
Berøringsskærm: Ingen
Skærm: Ingen
Dimensioner (BxDxH): 270 x 180 x 45 mm
Frekvensområde: 20 - 20000 Hz
Mikrofonindgangsimpedans: 10000 ohm (Ω)
klirfaktor (THD): 0.1 %
Antal kanaler: 10 kanaler
Stativ-montering: Ingen
Indgangsimpedans: 22000 ohm (Ω)
MIDI udgang: Ingen
Linie indgående (RCA): 6
Digital lydbehandling: 0 Bit
Mikrofon, signal-til-støjforhold: 50 dB
Phono-indgange (RCA): 2
Master (L, R) udgang: 2
Udgående optagelse: 2
