G-N17-2
TTERY GRIP
Designed for the Nikon
D500 DSLR Camera
USER’S MANUAL
Thank you for
choosing Vello.
The Vello BG-N17-2 is compatible with the Nikon D500
DSLR camera. The BG-N17-2 accepts one Nikon EN-
EL15 rechargeable battery, in addition to the camera’s
internal battery. Eight AA batteries (alkaline, Ni-MH, or
lithium) can be used instead for added convenience. The
BG-N17-2 is equipped with alternate shutter release,
control lock, function, and AF-ON buttons, as well as
a multi selector and main and sub-command dials, for
shooting in a vertical position.
Please read through this entire manual before
using the BG-N17-2 battery grip.
2
Precautions
1.
The BG-N17-2 should be used only with the
compatible devices specified in this manual.
2.
Use only w it h bat teries and bat tery holder s
recommended in this manual. The BG-N17-2 cannot
be used with other batteries or battery holders.
3. When the BG-N17-2 is not attached to the camera,
cover the power/signal contacts with the contact
cap. This prevents electrical shorts caused by metal
coming into contact with the power/signal contacts.
4.
When the battery holder is removed from the
grip, remove the batteries or place the holder in
a container to prevent electrical shorts caused by
contact with other metal objects.
5.
The memory card access lamp may glow temporarily
when the BG-N17-2 is mounted or removed from
the camera. This is part of the normal operation.
6.
The battery level may not display properly if batteries
are inserted before mounting the grip.
7. Remove batteries from the grip when not in use.
8. If you notice smoke, noise, or an unusual smell from
the battery pack, discontinue use im mediately.
Remove the batteries and contact Vello Customer
Service.
9.
The BG-N17-2 does not have a power switch.
Instead, use the camera power switch to turn the
power on or off.
10.
In cold temperatures, batteries can discharge
at a faster rate. Warming up a cold battery can
recover some of its lost charge and help improve
its performance.
11.
Keep this device away from water or ex treme
humidity, and store it in a dry and cool place.
12. Keep out of reach of children.
13. All images are for illustrative purposes only.
3
OVERVIE W INTRODUCTIONASSEMBLYOPER ATION

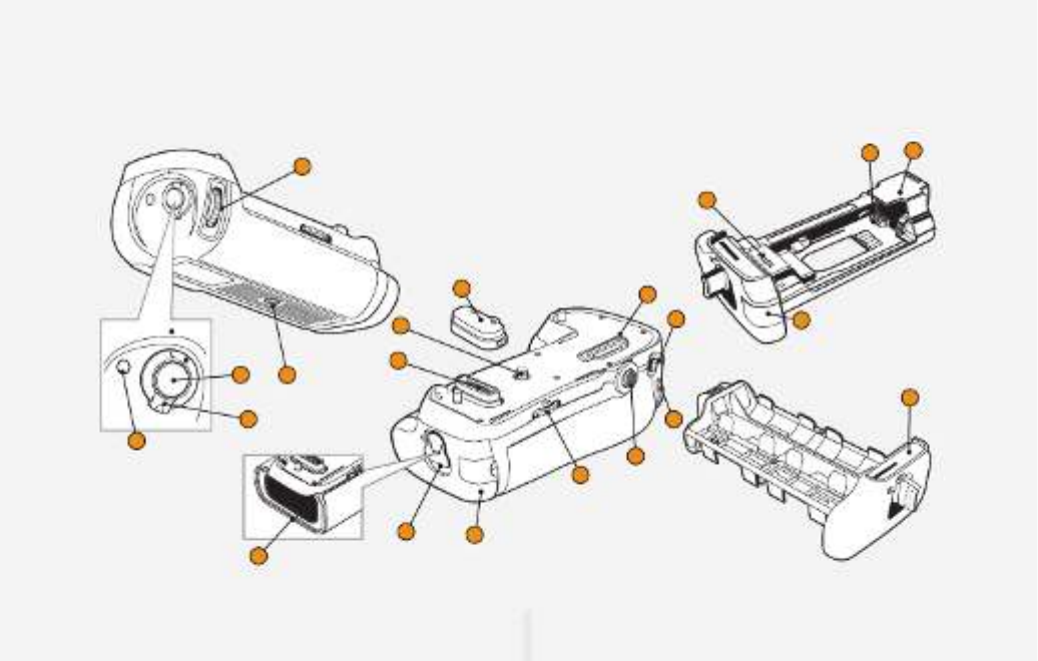

Over view
1
3 2
5
4
6
10
7
9
11
13
14
15
16
12
8
17
20
19
18
21
4
1 Sub-command Dial *
2 Tripod Socket
3 Shutter-Release Button *
4 Control Lock Switch
To prevent accidental triggering, the
control lock switch locks the shutter-
release button, function button,
AF-ON but ton, multi selector, and
main and sub-command dials on
the BG-N17-2. Unlock prior to use
by switching to the position. The
control lock is not a power switch.
5 Function Button
Can be programmed in Custom
Settings menu on your camera.
6 Contact Cap
7 Power/Signal Contacts
8 Mounting Screw
9 Camera Contact Cover Holder
10 AF-ON Button *
11 Main Command Dial *
12 Multi Selector *
13 Locking Wheel
14 Battery Holder
15 Battery Holder Latch
16 Battery Chamber
17 EN-EL15 Battery Holder
Holder for Nikon EN-EL15 battery.
18 Power Terminals
(EN-EL15 Battery Holder)
19 Push Button
Ejects the battery in the EN-EL15 Battery
Holder.
20 AC Power Supply Socket
Nikon EP-5B Power Supply Connector
port (connector not included).
21 AA Battery Holder
Holds eight AA batteries.
* These controls perform the same
functions as their on-camera equivalents
and are affected by changes to the
Custom Settings menu. See camera
manual for details.
5
OVERVIEW INTRODUCT IONASSEMBLYOP ER ATION

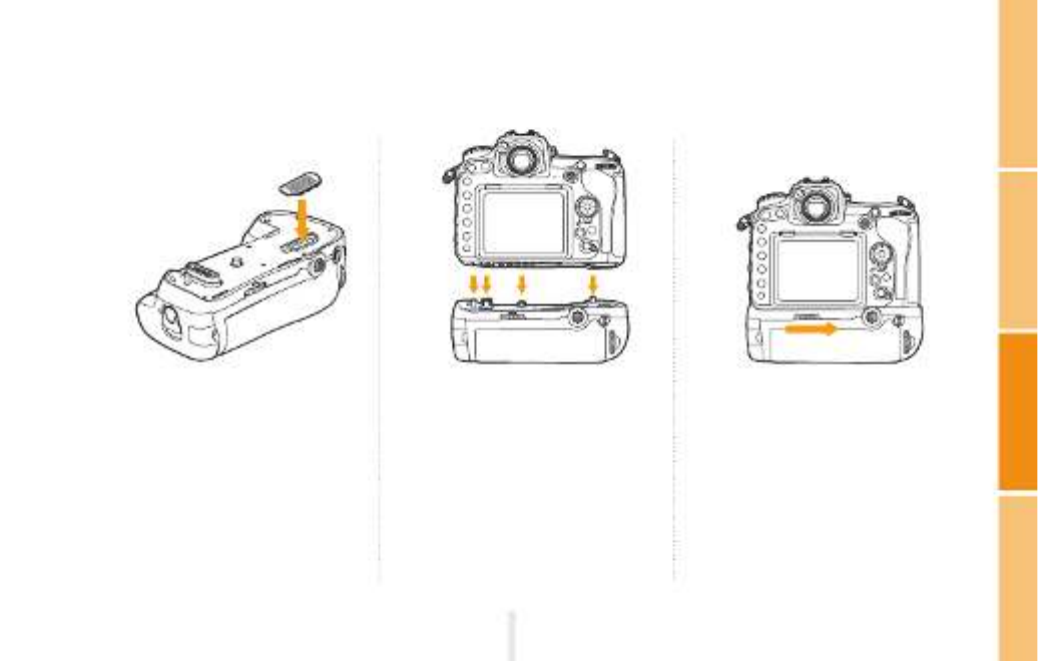

Attaching the Grip
1.
Ensure that the power is
turned off on the camera
and that the Control Lock
on the BG-N17-2 is in the
L position before at taching
the grip.
2.
Remove the contact cap
from the BG-N17-2 battery
grip. When the BG-N17-2 is
not attached to the camera,
replace the contact cap to
protect the contacts.
3.
Th e cont ac ts for t he
BG - N17-2 ar e on the
botto m of the came ra ,
where they are protected
by a rubber contact cover.
Remove the contact cover
from t he camera before
mounting the grip.
6
4.
To prevent loss, place the
camera contact cover into
the contact cover holder on
the BG-N17-2.
5.
Connect the BG -N17-2
g r i p t o t h e c a m e r a
while aligning the grip’s
mounting screw with the
camera’s tripod socket.
6.
Rotate the at t achment
wheel in t he d irection
shown by the arrow until
the grip is secure.
7
O VE RVIE W IN T RO DUC T IO NA SSEMB LYOP ER ATI ON
Inserting Batteries
1.
Ensure that the power is
turned off on the camera
and the Control Lock on
the BG-N17-2 is in the L
position.

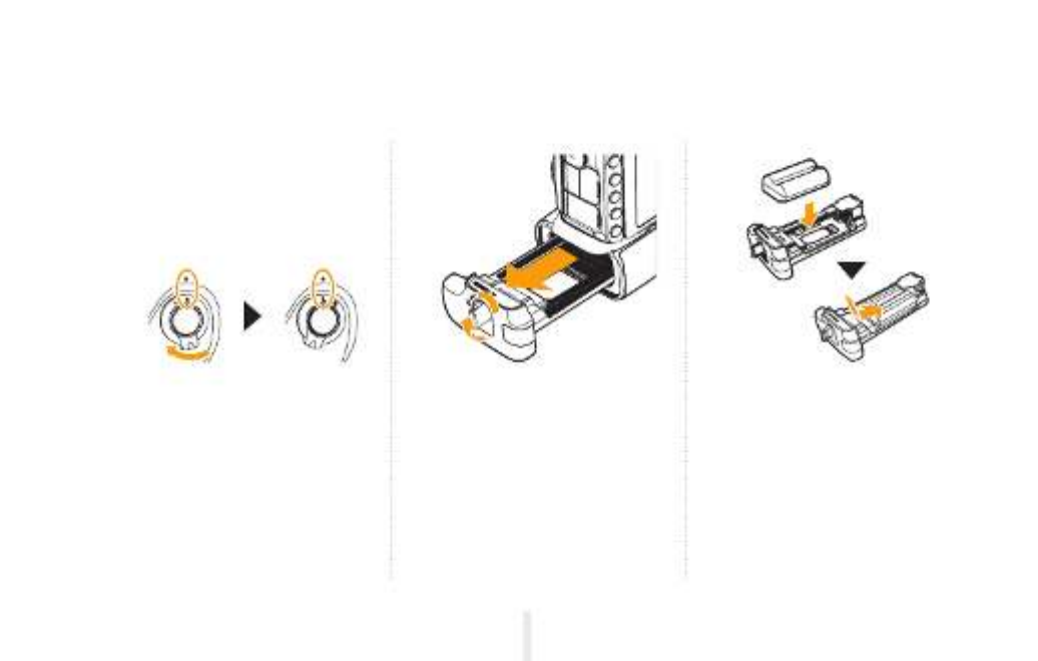

2.
Lift the bat ter y holder
latch so you can rotate it
counterclockwise and pull
the bat ter y holder out
of the grip. The EN-EL15
battery holder comes pre-
installed.
3.
Nikon EN-EL15 Battery:
Align t he ind enta tions
on the bat tery with the
EN-EL15 hold er. Then
press the battery down and
slide it in the direction of
the arrow until the power
terminals click into place.
8

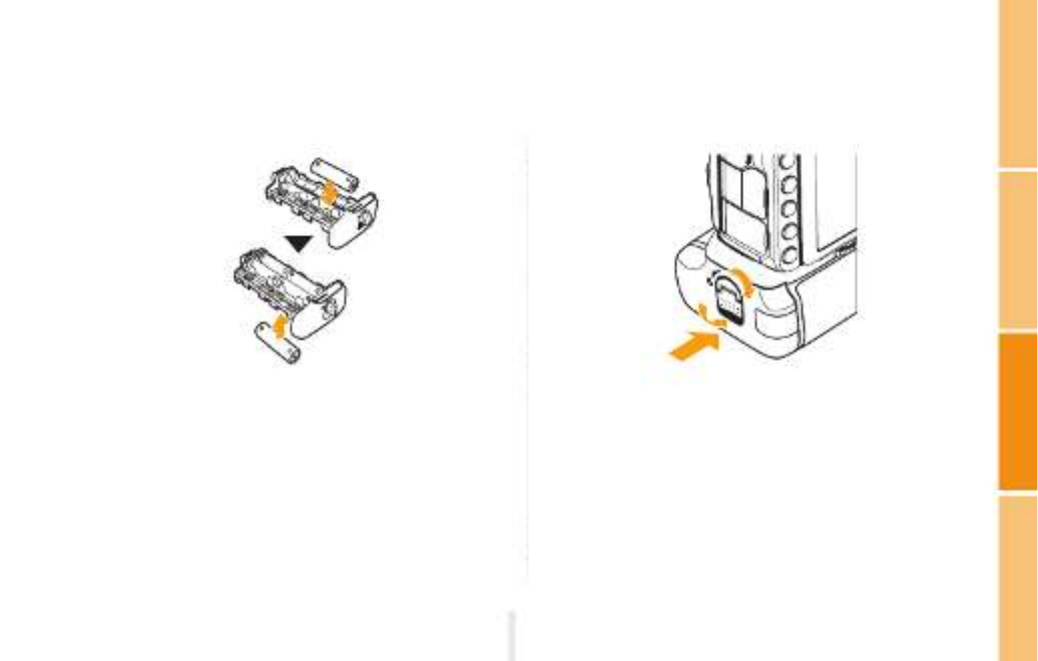

AA Batte ries: Place eight AA batteries of the
same type in the battery holder as shown. AA
Make sure the batteries are in the correct
orientation.
4.
Make sure the battery holder latch is rotated
counterclockwise, and slide the battery holder all
the way into the grip. Rotate the latch clockwise,
and reposition it so it’s flush with the side of the
grip. Turn on your camera, unlock the BG-N17-2
via its Control Lock switch, and check the battery
level in the control panel or viewfinder.
9
O VE RVI EW INTRO DUCT IO NA SS EMBLYOPE R AT IO N

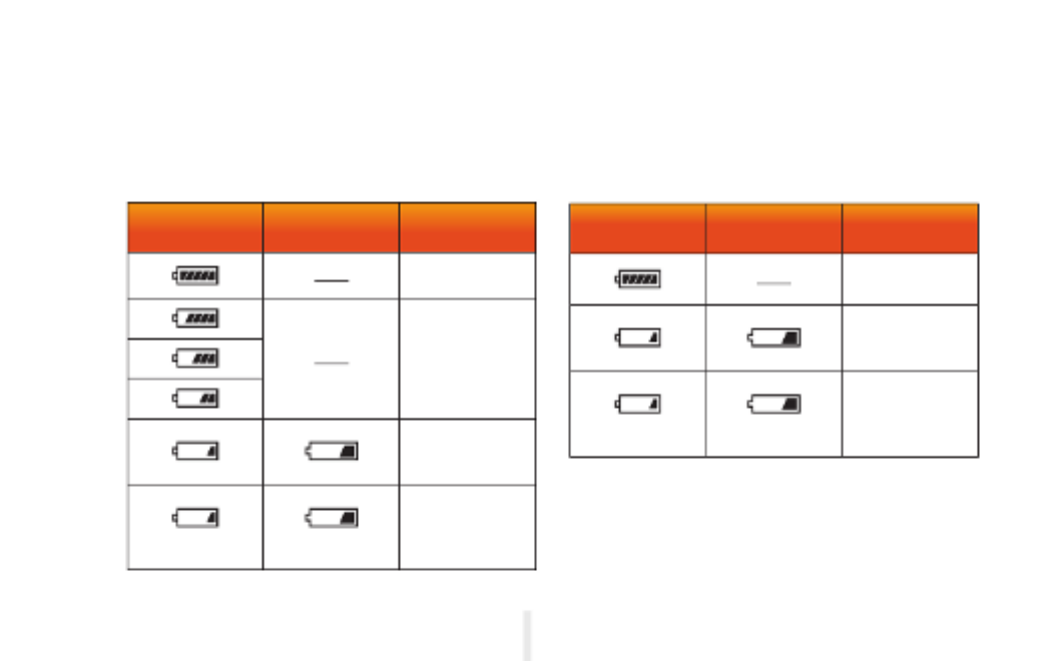

The camera displays the following battery levels.
Nikon EN-EL15 Battery:
LCD/Control
Panel
Viewfinder Descriptio n
Battery fully
charged.
Battery partially
discharged.
Low battery.
Prepare spare
batteries.
(blinking) (blinking)
Battery
exhausted.
Shutter release is
disabled.
AA Batteries:
LCD/Control
Panel
Viewfinder Descriptio n
Batteries fully
charged.
Low battery
power. Prepare
spare batteries.
(blinking) (blinking)
Batteries
exhausted.
Shutter release is
disabled.
Battery Info
10

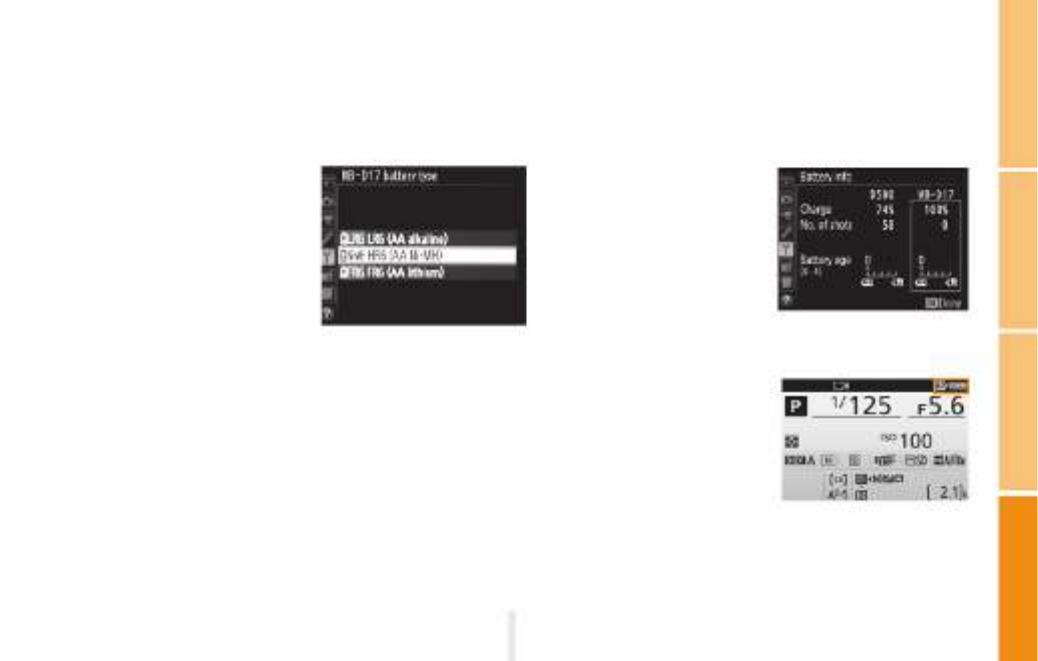

AA Battery Settings
To ens ure t h at t h e
camera shows the correct
ba t t e r y l eve l w he n
AA batteries are used,
choose the appropriate
setting in the Setup menu
(MB-D17 battery type).
Nikon Rechargeable Batteries
The camer a can d ispl ay
inform at ion ( includ ing
calibration information) for
Nikon EN-EL15 batteries
via the Battery Info option
in the Set up Menu. For
AA batteries, only battery
levels are displayed.
Battery Order
Se t the order i n which
the internal c amera a nd
BG-N17-2 batt eries are
use d via the Setup menu
(Battery order). When the
camera is drawing power from the , the battery BG-N17-2
gauge for the grip is displayed in the control panel (BP).
Note: The menu screens on this page are from the D500.
11
OVERVIEW INTRODUCTIONASSEMBLYOPERATION
