EVX-Link
iP ConnECt SoLution
inStaLLation ManuaL
EVX-Link
is a fast and easy way to connect multiple DMR digital coverage areas regardless of geography.
This system provides a seamless and reliable connection via the use of an existing Local Area Network (LAN) or
internet. It works with or without a repeater infrastructure which offers great exibility.
EVX-Link
can be used with existing systems or can replace the functionality of legacy high power repeater equip-
ment.

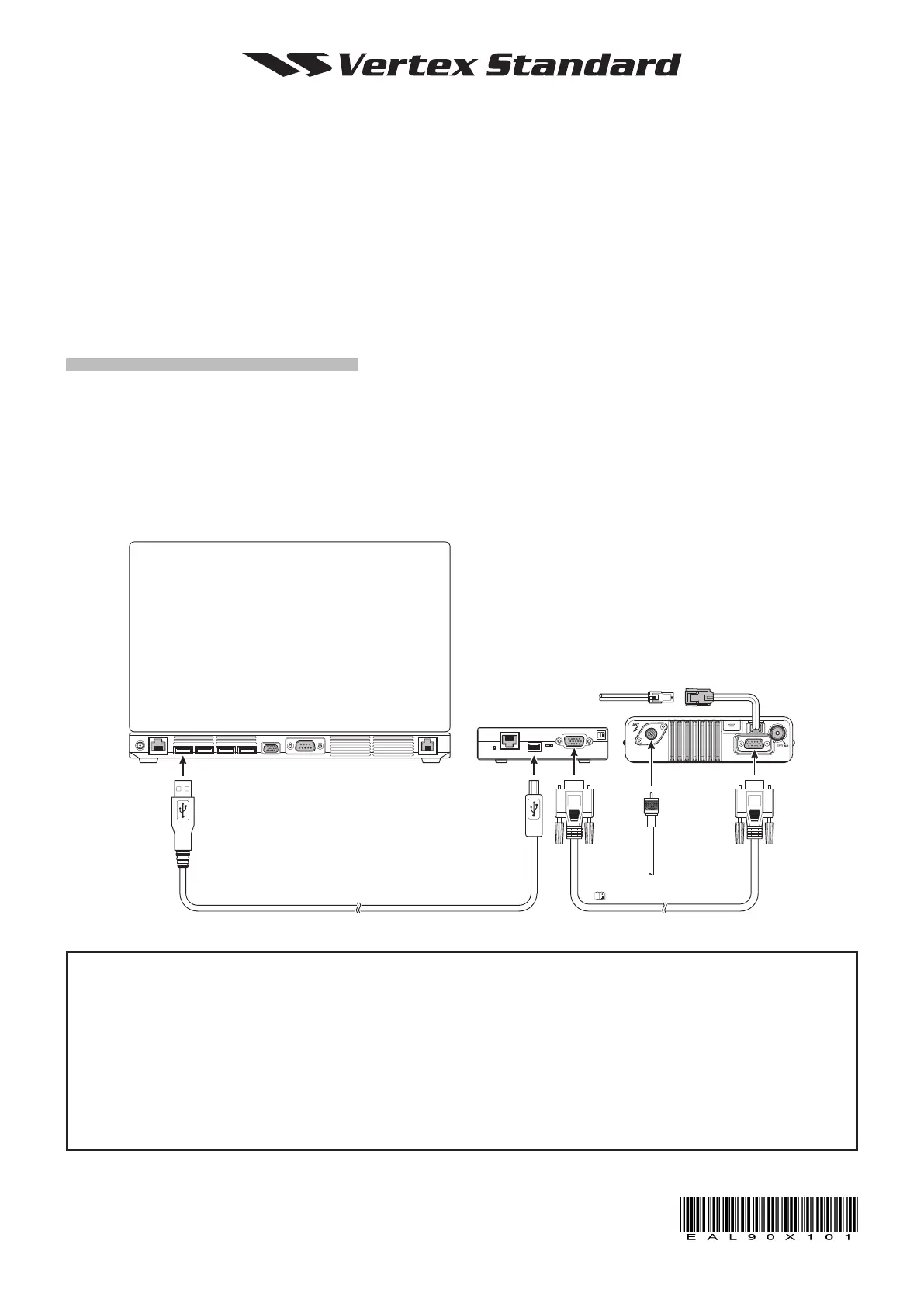

PrograMMing thE EVX-Link
Install the Programming Software for the EVX-Link to your Windows
®
computer (Windows
®
Vista or later operat-
ing system) in advance.
Set up the EVX-Link, computer, eVerge transceiver and its DC power supply, as shown in illustration.
Turn on the eVerge transceiver in order to supply power to the EVX-Link.
Using the programming software, input the IP address information for the EVX-Link on your site, and the IP ad-
dress information for those EVX-Link system sites you wish to connect to.
When the EVX-Link programming is nished, disconnect the
EVX-Link
from the computer.
Vertex Standard LMR, Inc.
4-6-8 Shibaura, Minato-ku, Tokyo 108-0023, Japan
http://www.vertexstandard.com
Note for US Users
: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
Note for European Users
: This is a Class A product. In a domestic environment this product may cause ra-
dio interference in which case the user may be required to take adequate measures.
RESET LAN USB BOOT SW RADIO
N U
USB Port
Micro USB Port
EVX-Link
Windows
®
Computer
Vertex Standard eVerge Transceiver
EVX-5300/-5400
RADIO Connector
ACC Connector
To Power Supply
Supplied D-Sub Cable
(
: refer to the installation manual
)
Micro USB - USB Connection Cable
(
not supplied
)
~ 2 ~

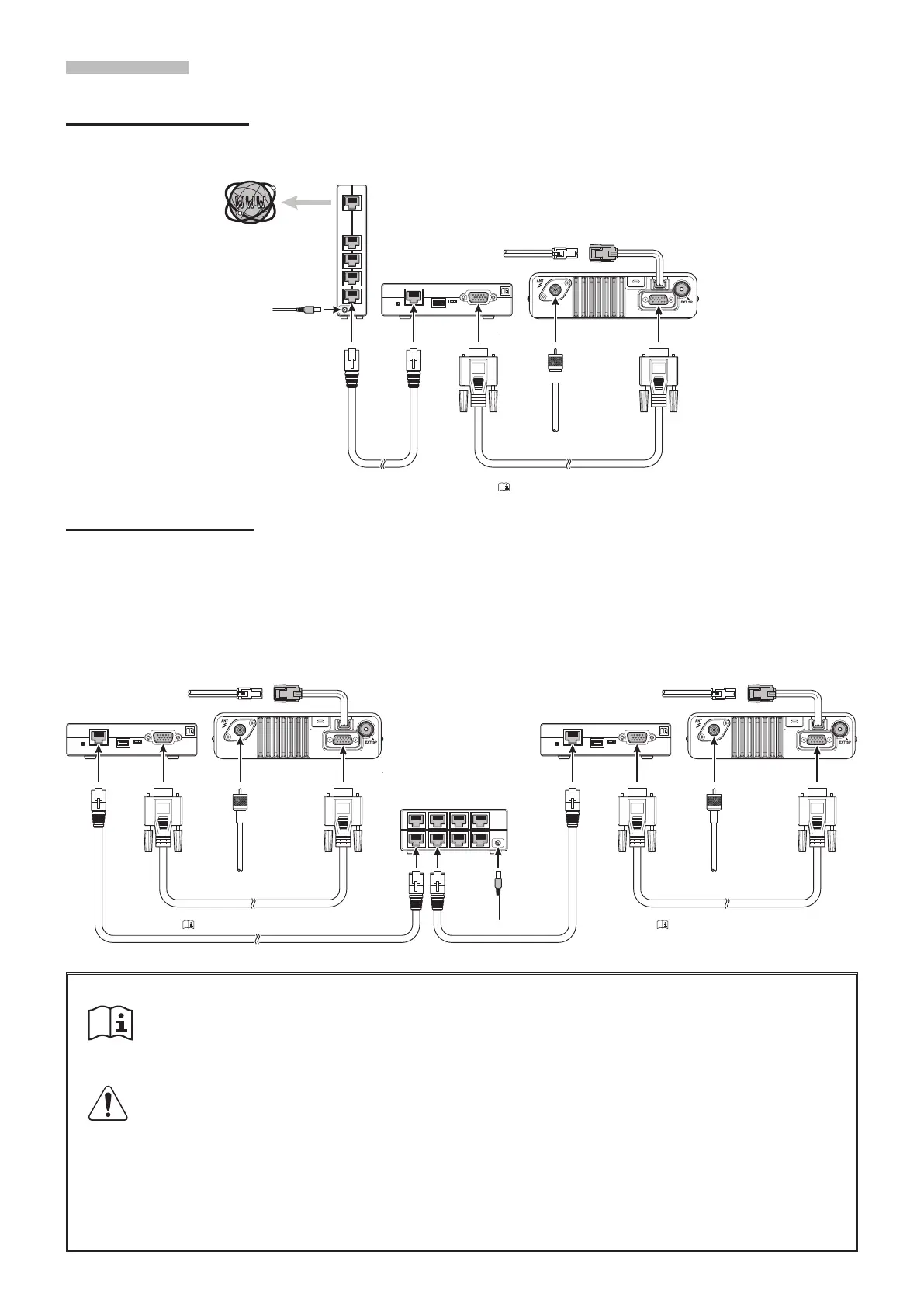

ConnECtion
Assemble the
EVX-Link
, eVerge Transceiver and associated equipment, as shown in illustrations.
Wide Area Network
The most common connection for multi-site congurations. By connecting to the local internet, this conguration al-
lows connection to multiple geographically separated coverage sites.
Router
Local Area Network
EVX-Link equipment can also be connected locally, without the use of an external internet source. Connect multiple
EVX-Link boxes with a switching hub or router for localized communication. For example, two transceivers can be
connected with the EVX-Link (as shown in the illustration below) to operate in a similar fashion to a repeater. As a
result, you can signicantly extend the communication range of the hand-held transceiver that has access to the
EVX-Link (eVerge Transceiver).
iMPortant notE
Refer to the Installation manual. Use only supplied the transceiver, model EVX-5300-D0-25, EVX-
5400-D0-25, EVX-5300-D0-50, EVX-5400-D0-50, EVX-5300-G6-25, EVX-5400-G6-25, EVX-
5300-G6-45, EVX-5400-G6-45, EVX-5300-G7-25, EVX-5400-G7-25, EVX-5300-G7-45 or EVX-
5400-G7-45.
When using the eVerge transceiver as a control station for the EVX-Link system, the antenna
installation must comply with the following requirements to ensure optimal performance and
compliance with the RF energy exposure limits in the standards and guidelines.
• The antenna should be mounted outside the building on the roof or a tower if at all possible.
• As with all fixed site antenna installations, it is the responsibility of the licensee to manage the site in
accordance with applicable regulatory requirements and may require additional compliance actions such
as site survey measurements, signage, and site access restrictions in order to insure that exposure limits
are not exceeded.
RESET LAN USB BOOT SW RADIO
N U
RESET LAN USB BOOT SW RADIO
N U
EVX-Link
RADIO Connector
LAN Port
ACC Connector
To Antenna
To Power Supply
LAN Cable
(
not supplied
)
EVX-Link
Vertex Standard eVerge Transceiver
EVX-5300/-5400
RADIO Connector
LAN Port
ACC Connector
To Antenna
To Power Supply
Switching HUB
To Power Supply
LAN Cable
(
not supplied
)
Vertex Standard eVerge Transceiver
EVX-5300/-5400
RESET LAN USB BOOT SW RADIO
N U
EVX-Link
Vertex Standard eVerge Transceiver
EVX-5300/-5400
RADIO Connector
LAN Port
LAN Port
ACC Connector
To Antenna
To Power Supply
To Power Supply
To Internet
LAN Cable
(
not supplied
)
Supplied D-Sub Cable
(
: refer to the installation manual
)
Supplied D-Sub Cable
(
: refer to the installation manual
)
Supplied D-Sub Cable
(
: refer to the installation manual
)
