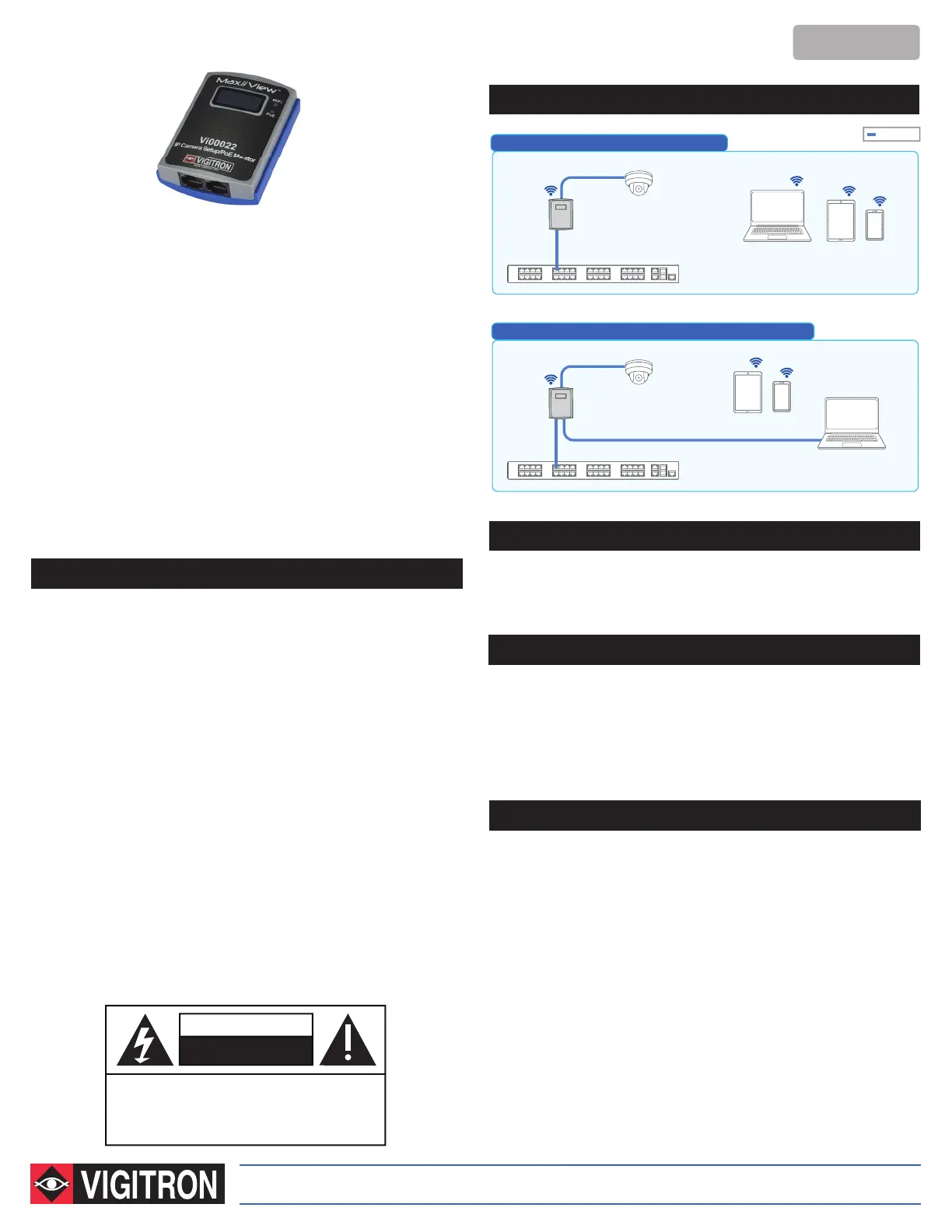

Wireless IP Camera Installation and PoE Test Tool User Manual
Application Drawing
Important Safety Warning
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IP Camera-end Installation
The Smart Choice for Transmission Solutions www.vigitron.com
Network-end Installation
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Use in accordance with the manufacturer’s instructions.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75° C.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The network cable is used as the disconnect device and shall remain
readily operable.
Vi00022_UM
Vigitron's patent pending Vi00022 wireless camera setup tool offers a fast
and reliable method for focusing and adjusting the view of IP cameras in the
field. The connected IP camera image is transmitted through WiFi connec-
tion allowing for quick in-field view of image.
The Vi00022 is platform independent and provides the ability to view IP
camera imge on smart phones, tablets or computers operating with Android,
iOS, or Windows
TM
platforms by entering the connected device's user name
and password.
It also provides digital read out of real time PoE voltage and power at the
input of the camera taking the guess-work out of installation. The Vi00022
can be connected to any PoE device to view voltage and power at the
device input. It is very compact and light that can easily fit in pocket or
mounted on the installers belt using its built in belt-clip.
The Vi00022 does not need local power source and uses only PoE power
from the network to power itself and the connected camera.
The Vi00022 is an ideal IP camera installation or debugging tool that saves
time and money in installation of IP cameras.
- Connect a Cat5/6 network cable to the RJ45 connector of the IP camera.
- Connect the other end of the network cable to Cat5/6 network cable to the
“Camera” port of Vi00022.
- Connect the network Cat5/6 cable to the “Network” port of Vi00022.
If the network PoE source is active, it will prower up the Vi00022 and the
connected PoE camera and display PoE power and voltage to the camera.
The data stream will be available on WiFi network of the the Vi00022 and
can be viewed on a smart phone, tablet or laptop.
Wireless Connection Setup
- Open the network or wireless settings on your laptop or mobile device.
• Apple devices: Choose Settings > Wi-Fi
• Android devices: Choose Settings > Wireless & Networks > Wi-Fi
• PC: Enable the wireless connection.
- Select Vi00022-xxxxxx from the list of networks where “xxxxxx” is a unique
value for each device.
- Select the manual button and enter then save an IP Address (with same
subnet as your IP camera) and Subnet Mask that will allow access to the IP
camera.
• This establishes a wireless connection between your WiFi device and
the Vi00022.
- Open the web browser:
• Type in the IP address of the camera on the address bar.
• View camera and operation
- The Blue Status LED on the front panel of Vi00022 should be flashing to
indicate proper connection.
Cat 5/6
PoE Switch
PoE Switch
Data + PoE
328 ft. (100m)
PoE
328 ft. (100m)
V00022
PoE Camera
Providing PoE and WiFi Connection to a Camera
Connecting the camera to a network of wired and wireless devices
The Vi00022 enables connecting to a laptop using a wired connection.
The Vi00022 enables connecting the PoE cameras to any wireless device using a WiFi connection.
Data + PoE
328 ft. (100m)
PoE
328 ft. (100m)
V00022
PoE Camera
Data + PoE
328 ft. (100m)
Maxii View
TM
Electrical
Power 2W, Uses PoE, no external power supply needed
Connectors RJ-45 : 10/100Mbps plus PoE in
RJ-45 : 10/100Mbps plus PoE out
Wire Compatibility Cat5e, Cat6, Cat6a
IP Address IvP4 Auto or Manual
IP Setting IP Address automatic or programmable subnet
Security WPA2-PSK with user configurable password
SSID User configurable
Frequency Default 2.4 Ghz b/g/n.
LED Indicators Activity: Green LED on each RJ45 Connector
PoE: Green LED
Wireless Transmission: Blue LED
Number of clients 12, Maximum
Wifi operating 50 feet, 15m
distance
Display 128x32 Pixel monochrome OLED display
PoE Standards IEEE 802.3af, IEEE 802.3at, and most non-standard
sources up to 36W
Regulatory
Safety CE
Environmental RoHS, WEEE
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -20°C to + 55°C
Storage: -40°C to +°80C
Mechanical
Dimensions 3.36 x2.56 x1.19 in., 8.53x6.5 p2-x3 cm(HxWxL)
Weight 0.181 lb; 82 g
Enclosure ABS plastic, UL rating of 94V-0
*Specifications subject to change without notice.
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products (“Product”), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circum-
stances be liable to any person for any incidental, indirect or consequential
damages, including damages resulting from use or malfunction of the product, loss
of profits or revenues or costs of replacement goods. The maximum liability of
Vigitron, Inc. under this warranty is limited to the original purchase price of the
Product only.
Technical Specifications*
RoHS
RoHS
Ordering Information
Status LEDs
© Copyright 2021 Vigitron, Inc.
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858-484-1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
LED Name Color Status Function
OFF WiFi is OFF
ON WiFi is ON
OFF
OFF
No PoE
No Ethernet
ON
ON
PoE Active
Ethernet Activity
WiFi
Blue
PoE
GREEN
GREEN
Part No.
Description
Vi00022
MaxiiView Wireless POE Camera Installation Tool
Activity (Camera Port)
Activity (Network Port)
Activity (Labtop Port)
