Satco Products, Inc.

FEATURES

• c-UL-us list and recognized

• Plug-n-Play replacement

• Full glass housing: No aging, yellowing, bending

COLORQUICK

™

LED T8 2', 3', 4'

TYPE A DIRECT REPLACEMENT

Models: S21915, S21916, S21917, S21918, S21919

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

WARNING: Risk of re or electric shock.

Disconnect power before installation.

• Product must be installed in accordance with the national

electrical code or your local electrical code. If you are not

familiar with these codes and requirements, contact a

qualied electrician.

• Check the lamp before installation. If there is any damage

DO NOT INSTALL.

• LED T8 lamp to be operated with qualied electronic ballast,

emergency ballast and dimming ballast. Dimmable only with

compatible dimmable ballasts Check the compatibility list

before installation. Visit www.Satco.com for compatibility list.

• Use only in place of uorescent lamps specied on label.

• Suitable for damp locations.

• DO NOT INSTALL this lamp in a pre-heat luminaire.

• This lamp only operates on electronic ballasts. If lamp does

not light when the luminaire is energized, remove lamp

from luminaire and contract lamp manufacturer or qualied

electrician.

• If the lamp or luminaire exhibits undesirable operation

(buzzing, ickering etc.), immediately turn off power, remove

lamp from luminaire and contact manufacturer.

• To prevent wiring damage or abrasion, do not expose wiring

to edges of sheet metal or other sharp objects.

• Do not make or alter any open holes in an enclosure

of wiring or electrical components during installation.

• Installers should not disconnect the existing wire from lamp

holder terminals to make new connections at lamp holder

terminals. Instead installers should cut existing lamp holder

leads away from the lamp holder and make new electrical

connections to lamp holder lead wires by employing

applicable connectors.

• Check the existing wiring for damage before installing.

DO NOT INSTALL if existing wires are damaged.

• Suitable for use in enclosed luminaries, not vapor tight.

• Disconnect lamp from power supply before any maintenance.

• Clean luminaire with dry cloth.

• Do not clean the lamp with corrosive chemicals.

• To ensure proper lamp performance, temperature of the

Tc point should not exceed ensure 131ºF after a min. of

2 hours of use.

• This product may cause interference to radio equipment and

should not be installed near maritime safety communications

equipment or other critical navigation or communication

equipment operating between 0.45-30 MHz.

• TYPE A LAMP - Intended for direct substitution of a

uorescent lamp and operating from the integral ballast

without any modications to the uorescent luminaire.

The units covered by this report were intended to retrot surface mount, Type IC or non-IC recessed mount Listed uorescent

luminaires that use maximum 4 tubular lamps, the minimum lamp compartment dimensions are tabulated below.

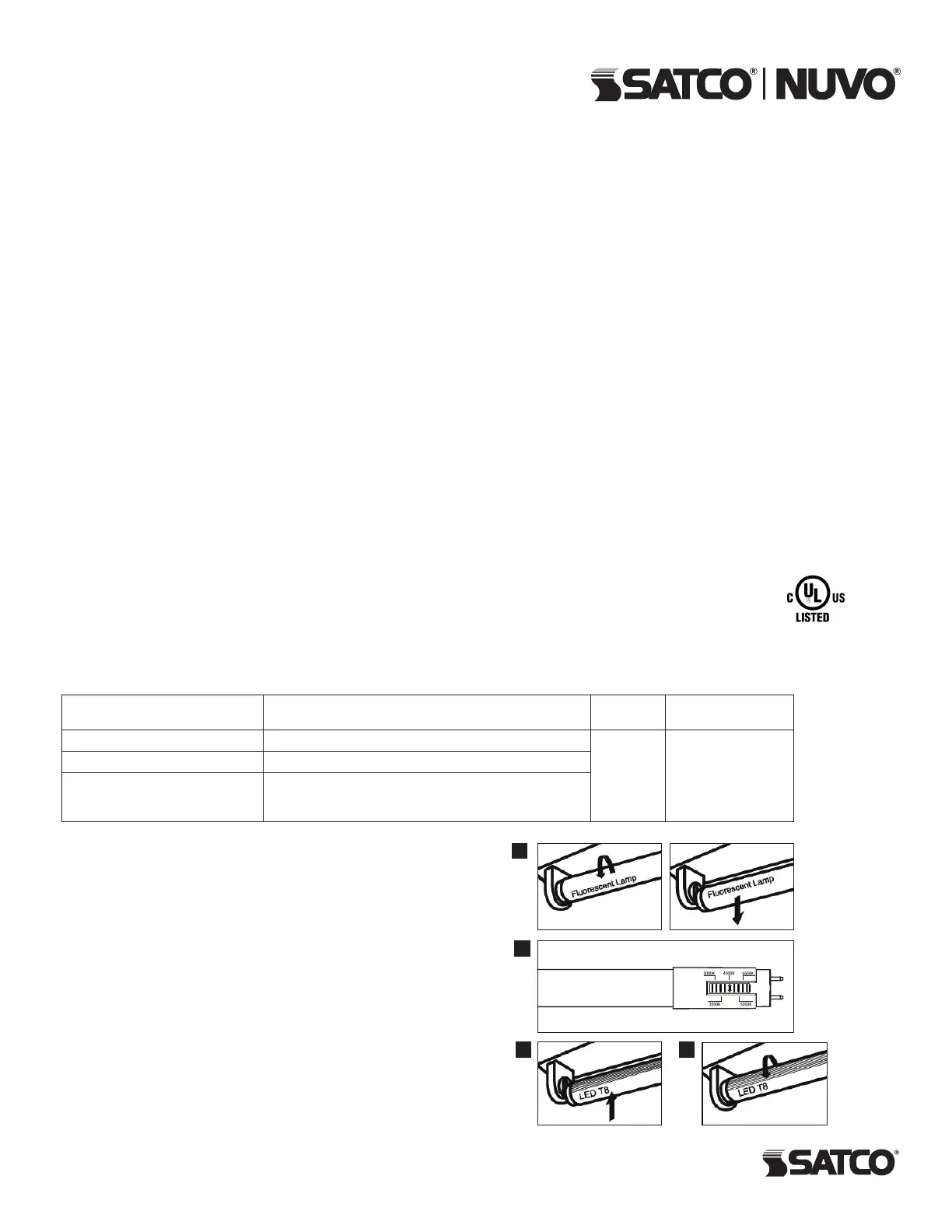

INSTALLATION INSTRUCTIONS

STEP 1: Turn power OFF.

STEP 2: Remove lens or diffuser (if applicable).

STEP 3: Remove existing uorescent lamps from the luminaire.

See Figure A.

STEP 4: Select the color temperature you want using the switch

on the end cap of the lamp. See Figure B.

STEP 5: Bring LED lamp to luminaire and insert lamp pins into

luminaire lamp holders. See Figure C.

STEP 6: Rotate LED lamp until lamp locks in place. Ensure that

the LED lamp front points away from the back of the luminaire.

See Figure D.

NOTE: Install LED T8 replacement lamp one for each uorescent

lamp removed.

STEP 7: Place lens or diffuser back in place (if applicable).

STEP 8: Turn power ON.

Item Number–Description

Minimum Lamp Compartment Dimensions

(Length x Width x Height)

Lamp

Quantity

Lamp-to-Lamp

Spacing

S21915 8T8/LED/24/5CCT/DR 24.21 x 23.82 x 94 inches (615 x 605 x 100 mm)

4.33 inches

(110mm)

S21916 11T8/LED/36/5CCT/DR 36.02 x 23.82 x 94 inches (915 x 605 x 100 mm)

S21917 10T8/LED/48/5CCT/DR

S21918 13T8/LED/48/5CCT/DR

S21919 17T8/LED/48/5CCT/DR

47.83 x 23.82 x 94 inches (1215 x 605 x 100 mm)
