Use / Installation

MANUAL

Outdoor Access Doors, Dry Storage, and Storage Drawer

AD52820 / AD51320 / SD5300 / SD5360 / VDSA5420

CAD52820 / CAD51320 / CSD5300 / CSD5360 / CVDSA5420

IMPORTANT - Please Read and Follow

•Before beginning, please read these instructions completely and carefully.

•The installer should leave these instructions with the consumer for future reference.

UNPACK

1. Locate the unit near installation area.

2. Remove all banding from around carton.

3. Remove all tape and packaging material from the outside and inside of the access doors or storage drawer.

4. Keep all carton packaging until your access doors or storage drawers have been thorougly inspected and found to be

in good condition.

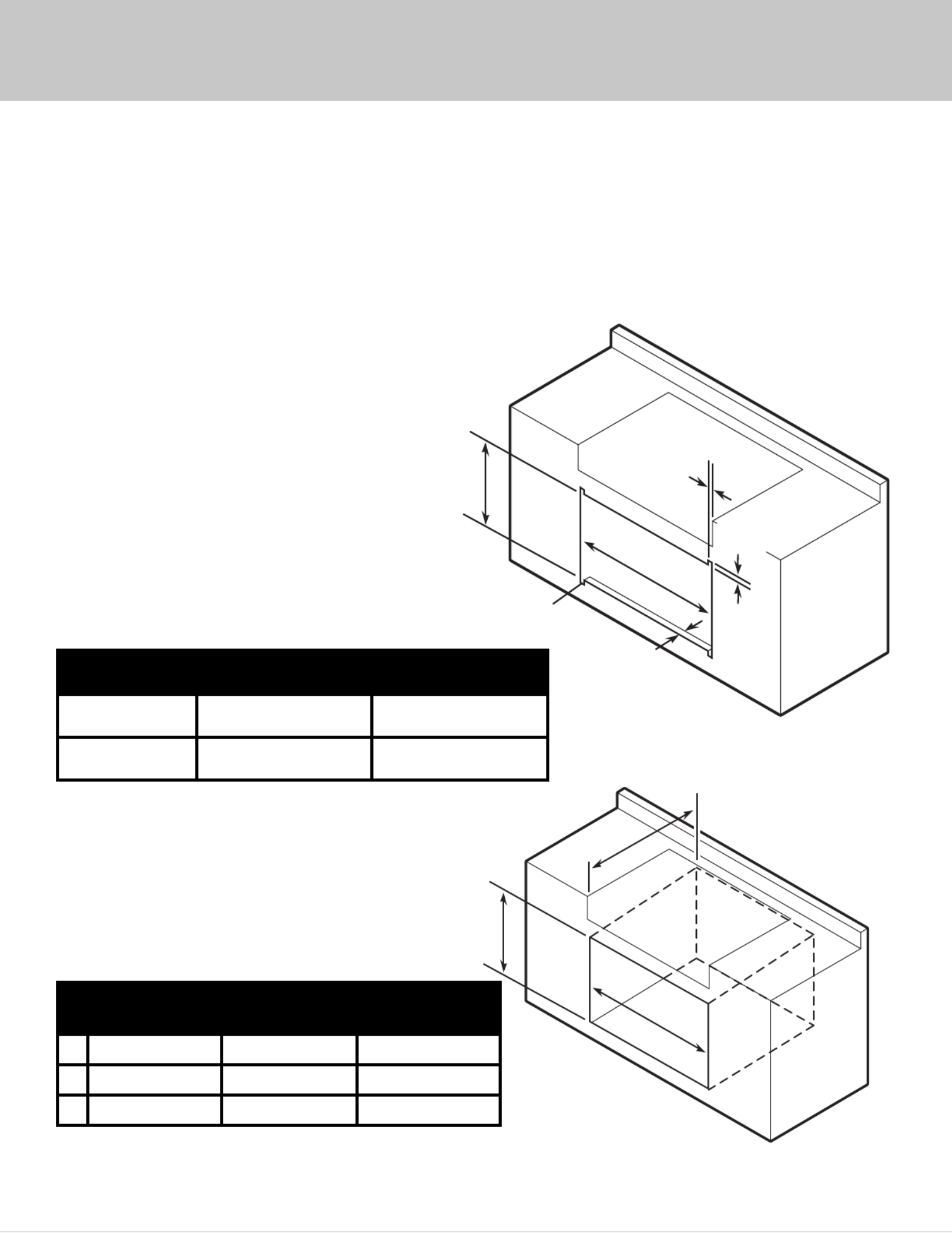

CUTOUT OUT DIMENSIONS

2”

(5.1 cm)

1”

(2.54 cm)

min.

Notch*

1”

(2.5 cm)

Access Doors

AD52820

CAD52820

AD51620

CAD51620

(includes notches)

28-1/4” (71.8 cm) Min.

30-1/4” (76.8 cm) Max.

16-1/4” (41.3 cm) Min.

18-1/4” (46.4 cm) Max.

(opening only)

20-1/4” (51.4 cm) Min.

20-1/2” (52.1 cm) Max

20-1/4” (51.4 cm) Min.

20-1/2” (52.1 cm) Max

*Before centering doors in opening, make the notches in

all four corners for double access doors and only in the

hinge side for single access doors. The notches need to

be 1” (2.5 cm) long x 2” (5.1 cm) wide. Attach with the

four screws that are provided.

For Single Access Doors only (AD51620/CAD51620):

Only notch the side where the hinge is located. Door

can be mounted with left or right door swing.

Storage Drawers /

Sealed Cabinet

SD5300

CSD5300

SD5360

CSD5360

VDSA5420

CVDSA5420

C 28” (71.1 cm) 33-3/4” (85.7 cm) 38” (96.5 cm)

D 9-1/4” (23.5 cm) 9-1/4” (23.5 cm) 19-1/2” (49.5 cm)

E 23-3/8” (59.4 cm) 23-3/8” (59.4 cm) 24-1/2” (62.2 cm)
