VARIOUS OPTIONS IN LEADED
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED.

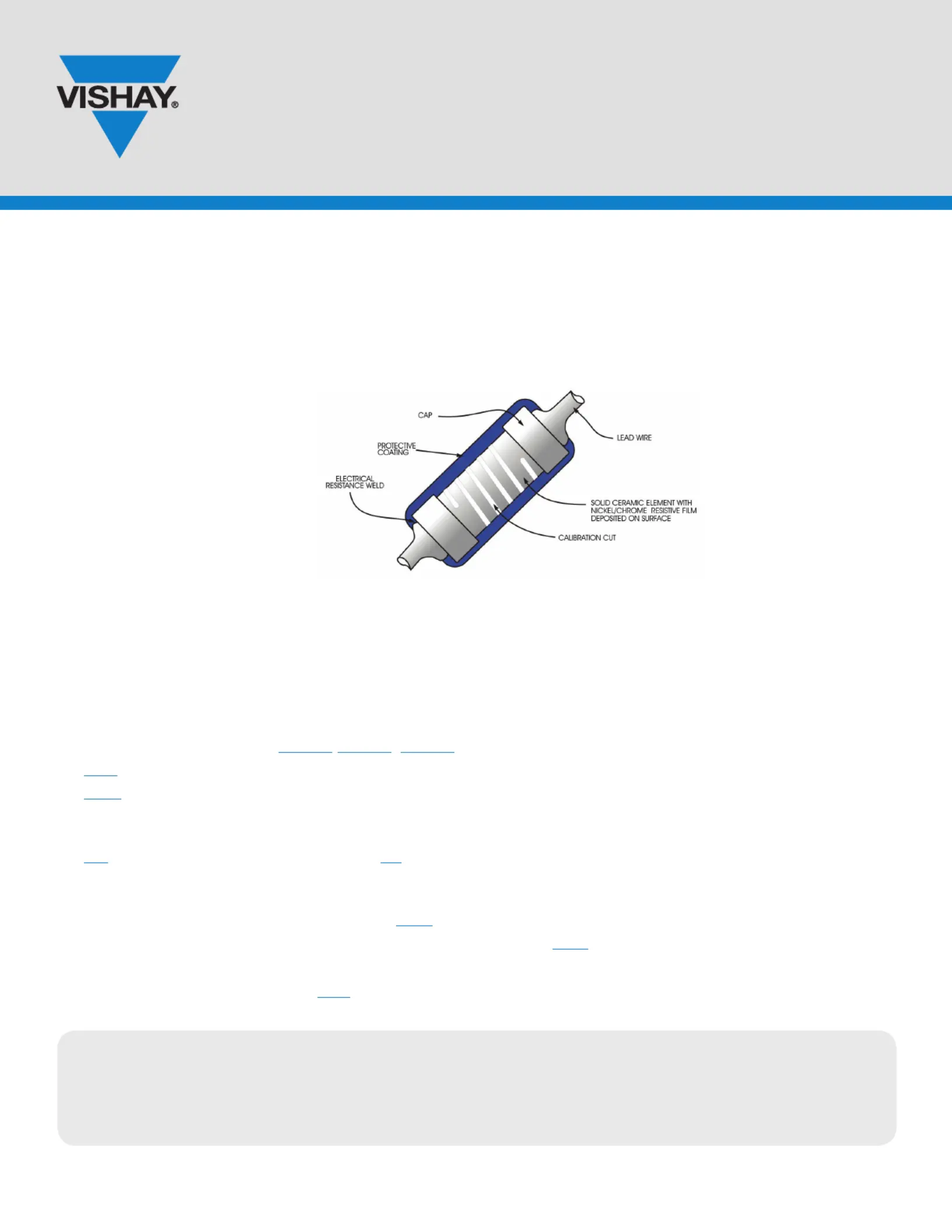

Leaded fixed film resistors are used in multiple commerical, industrial, and high reliability / military / space
level applications. They offer the following advantages:
1. —High resistance values beyond leaded wirewound resistors can be achieved in a Space efficient
2. —No solder joint issues; perform well in shock and vibration environments; hermetically sealed film Reliable
resistors can also be used in high moisture and corrosive environments
3. —Compared to WW and thick film productsLow TCR
Vishay Dale offers multiple series of axial leaded film components to serve various customer application and
design needs. These include commerical, industrial, non-established, and established reliability-grade com-
ponents. The commercial and industrial series products are offered in tin-lead (Pb) and RoHS-compliant lead-
(Pb)-free versions. The military products are only offered in tin-lead (Pb) configurations. Vishay Dale also offers
fully RoHS-compliant industrial versions of all military resistors for high reliability industrial applications.
Axial Lead Product Series:
• CCF Series: commerical ( / ; )CCF50 CCF60 CCF02
• Series: industrial; high power; precisionCPF
• Series: industrial, precision, non-magnetic, pulse withstanding; fusible; flame retardantCMF
Non-Established Reliability:
• (Mil-R-10509 qualified, precision) / (Mil-PRF-22684 qualified)RN RL
• Mil-PRF-55182 qualified, precision, type , characteristics J,H,K (industrial: ERC-500)RNC
• Mil-PRF-55182 qualified, hermetically sealed, precision, type , characteristics RNR
E and C (industrial: GSR)
• Mil-PRF-39017 qualified, type , characteristics J,H,K (industrial: ERL-500)RLR
The film resistors are typically used in applications that include:
• Short term pulse handling
• Hermetic sealed product is used in corrosive and high moisture environments
