Specifications are subject to change without notice

AtlasSound.com

1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3332 • FAX: (800) 765-3435

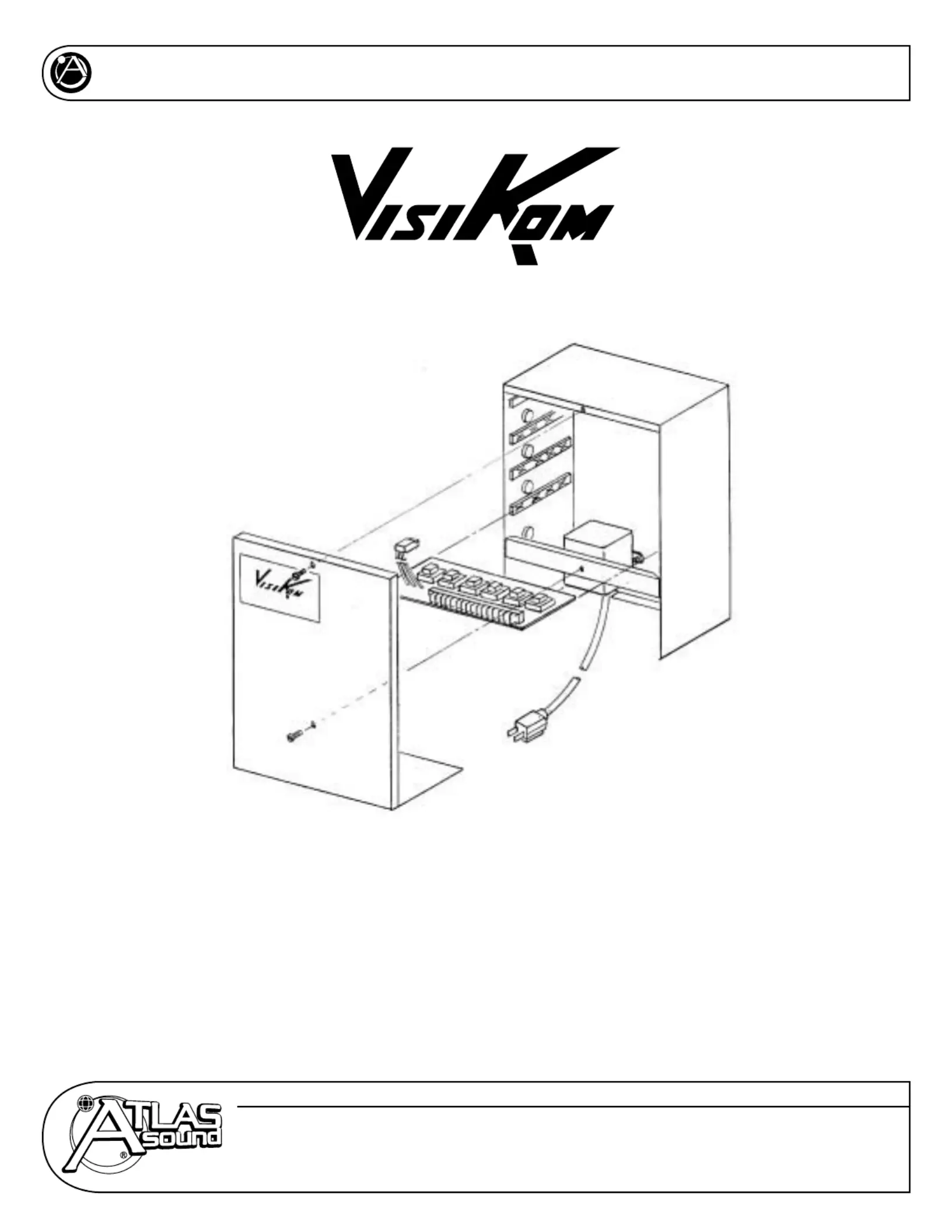

INSTALLATION INSTRUCTIONS

VISIKOM PVP-24, PVP-6

MODEL PVP-24 CONTROL UNIT

MODEL PVP-6 STATION INTERFACE MODULE

The VisiKom System is designed to provide multiple independent phone lines which can each be connected

to two or more telephone stations (Model CE-2-AC or equivalent) in a common talk mode. The unique filter

circuitry used in the PVP-6 Interface Module assures absolute privacy and freedom from crosstalk between

phone lines. The PVP-24 Control unit is completely self-contained and mounts conveniently via key-hole slots

in the chassis. Each PVP-24 will accommodate up to four PVP-6 interface modules which provide six phone

lines each. (Up to 24 phone lines per system.)

The first PVP-6 Module installed in the PVP-24 (top position) plugs into the power supply via a convenient

push-on connector. Each subsequent module plugs into the one above it. Individual phone lines are brought

into the unit through wiring ports in the PVP-24 chassis.

SPECIFICATIONS

PVP-24 Control Unit

PVP-6 Interface Module

Power Supply: 8 VAC, 2A Input: 8 VAC

Dimensions: 9

⁄2" W x 13" H x 4

⁄2" D Six isolated phone linesOutput:

Capcity: Four PVP-6 modules

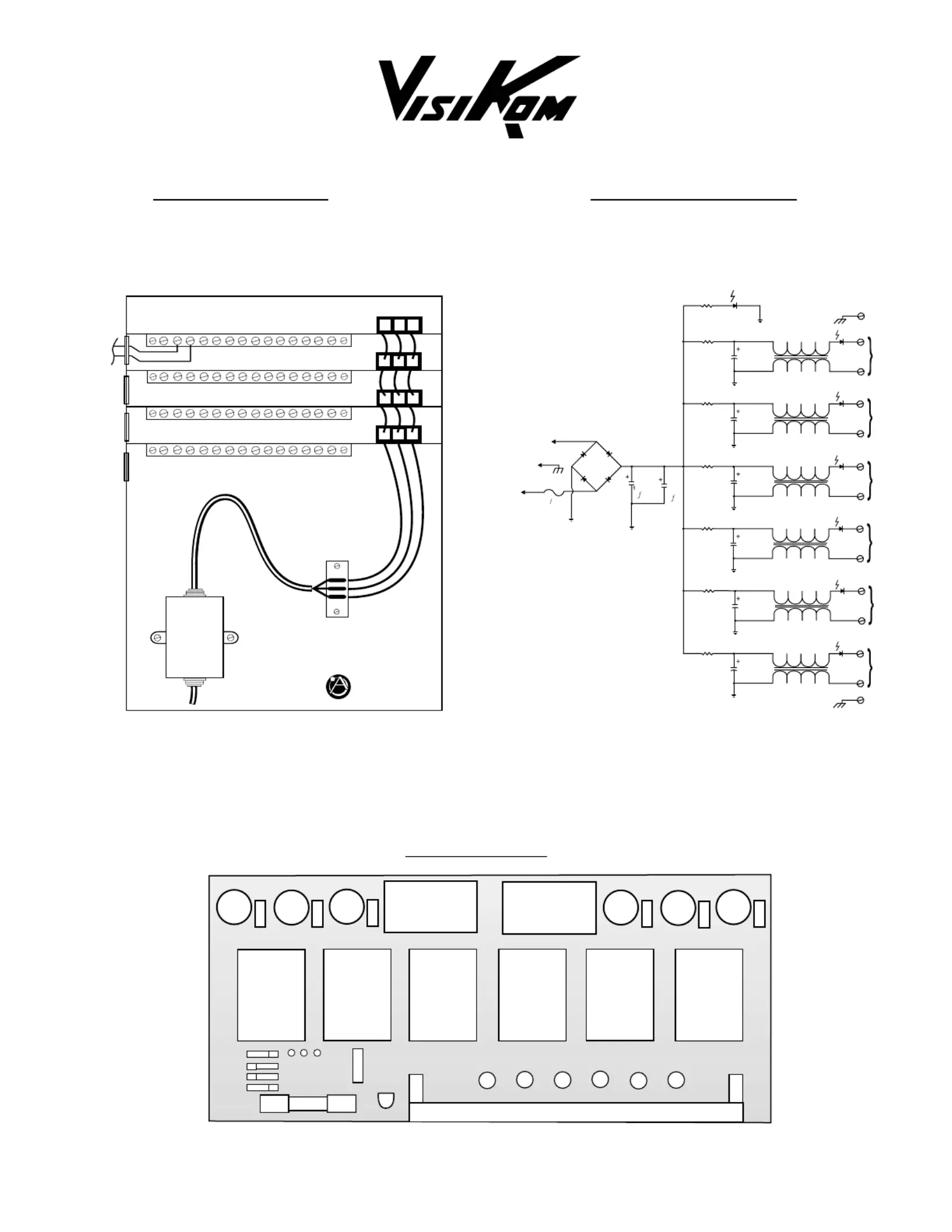

PVP-6 PC Board

– 2 –

GND 1 2 3 4 5 6 GND

MODEL PVP-24

To Visitors

Stations*

(6 per PVP.6)

*If sheilded cable is used, sheild can

be connected to ground terminal at

either end of terminal strip.

Phone

GND

1/2W

LED 7

RED

R1R1

LED 1

LED 2

LED 3

LED 4

LED 5

LED 6

GND

8 VAC

D1 D2

D3 D4

1500

1/2A.

Resistors: R1-R-6 47Ω.

⁄2W

Capacitors: C1-C6 470mf 35 V

LED1-LED6: Green

LED7: RED

+ +

1/2 Amp Fuse

WRT

GPN

WHT

LED 7

GND GND

- +

- + - +

- +

- + - +
