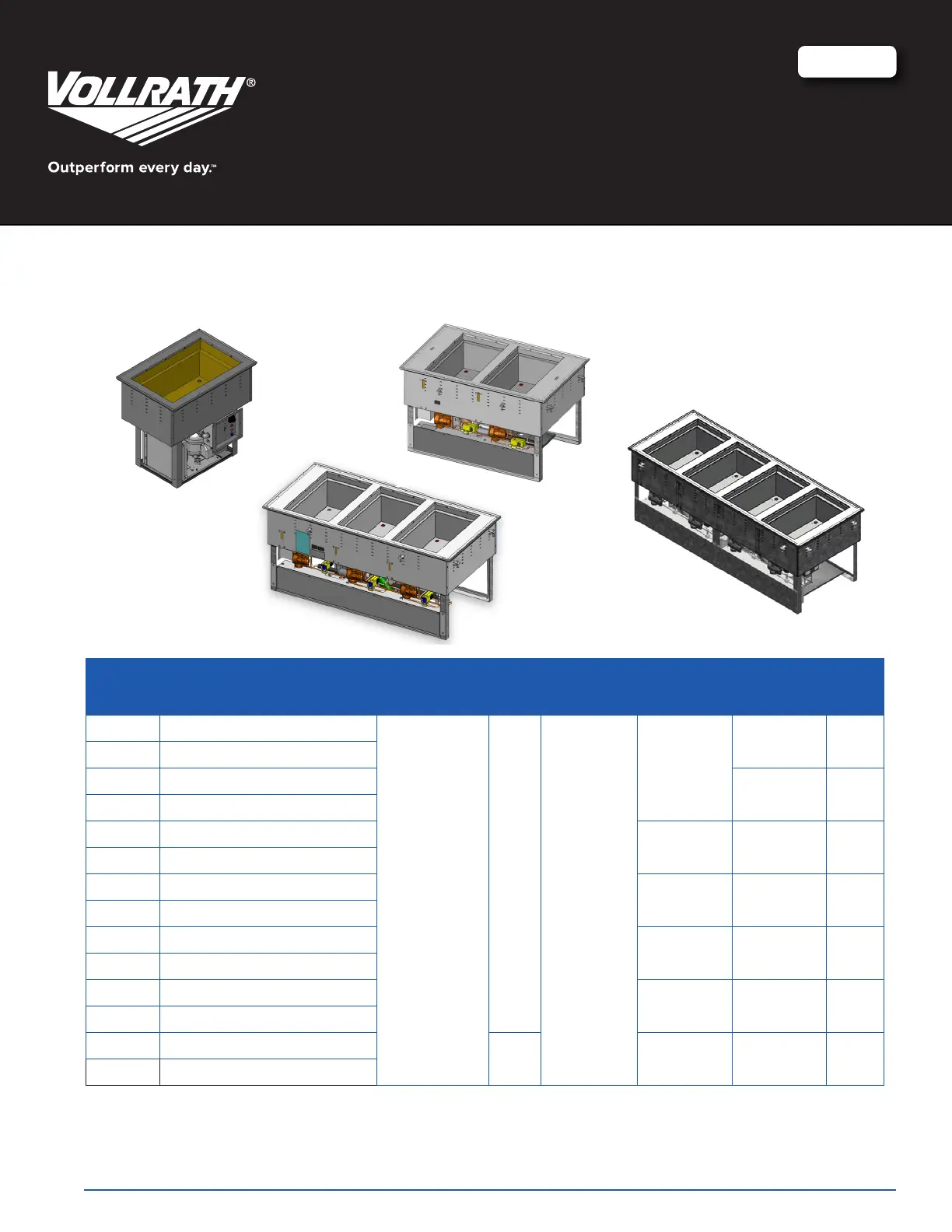

ENGLISH
Operator’s Manual
Item No. 2350245-1 Rev 4/29/15
1 WELL, 2 WELL, 3 WELL, AND 4 WELL HOT/COLD DROP-IN
(NSF7 Cold Food Holding and NSF4 Hot Food Holding)
Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Item Description
Heater Watts
(per well)
Compressor
Max Amps
Draw Voltage Plug HP Refrigerant
3667101D 1 Well Hot/Cold Drop-in, Top Mount
625W
1/4 hp
R404
6.0
120V 5-15P
3667101U 1 Well Hot/Cold Drop-in, Bottom Mount
3667102D 1 Well Hot/Cold Drop-in, Top Mount
120/208-240V 14-20P
3667102U 1 Well Hot/Cold Drop-in, Bottom Mount
3667201D 2 Well Hot/Cold Drop-in, Manifold Drain
11.2 120V 5-15P
3667201DA 2 Well Hot/Cold Drop-in, Auto Drain
3667202D 2 Well Hot/Cold Drop-in, Manifold Drain
8.6 120/208-240V 14-20P
3667202DA 2 Well Hot/Cold Drop-in, Auto Drain
3667301D 3 Well Hot/Cold Drop-in, Manifold Drain
16.0 120V 5-20P
3667301DA 3 Well Hot/Cold Drop-in, Auto Drain
3667302D 3 Well Hot/Cold Drop-in, Manifold Drain
11.2 120/208-240V 14-20P
3667302DA 3 Well Hot/Cold Drop-in, Auto Drain
3667402D 4 Well Hot/Cold Drop-in, Manifold Drain
(2)
1/4 hp
14.0 120/208-240V 14-20P
3667402DA 4 Well Hot/Cold Drop-in, Auto Drain
OperatOr’s Manual
2
ENGLISH
Safety PrecautionS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are explained
below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can cause
severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can cause
minor or major personal injury if the caution is ignored.
NOTICE is used to note information that is important but not hazard-related.
These precautions should be followed at all times. Failure to follow these
precautions could result in injury to yourself and others.
To reduce risk of injury or damage to the equipment:
Use only grounded electrical outlets matching the nameplate rated
voltage.
Do not use an extension cord with this equipment. Do not plug this
equipment into a power strip or multi-outlet power cord.
Keep equipment and power cord away from open ames, electric
burners or excessive heat.
Do not operate if equipment has been damaged or is malfunctioning in
any way.
Unit should only be used in a at, level position.
Do not operate hot well without water.
Do not use food pans deeper than 6” (15.2 cm).
Do not place any hot items on the top surface.
function and PurPoSe
This unit is intended and designed to keep food at proper serving
temperatures. This unit is made for use in an ambient temperature below
86 °F (30 °C). Using in warmer temperatures will take unit out of NSF
compliance. Modifying refrigeration parameters may void the warranty.
Hot food stations are not intended or designed to cook raw food or to reheat
prepared food. Cold food stations are not intended or designed to cool or
chill food. Food must be prepared and placed in food stations at proper
serving temperatures. Refrigerated cold stations are best used for holding
periods up to four hours. For best performance, stainless steel containers
are recommended.
This equipment is not intended for household, industrial or laboratory use.
unPacking the equiPment
1. Remove all packing material and tape, as well as any protective plastic
from the equipment.
2. Clean any glue residue left over from the plastic or tape.
3. Dispose all packaging materials in an environmentally responsible
manner.
inStallation
This unit must be installed on a dedicated electrical circuit in accordance
with local codes. Installation must be qualied service personnel.
clearance requirementS
One, two and three well drop-ins are zero clearance on all sides.
Four well drop-in requires zero clearance on sides and 1 1/2”
clearance at the bottom.

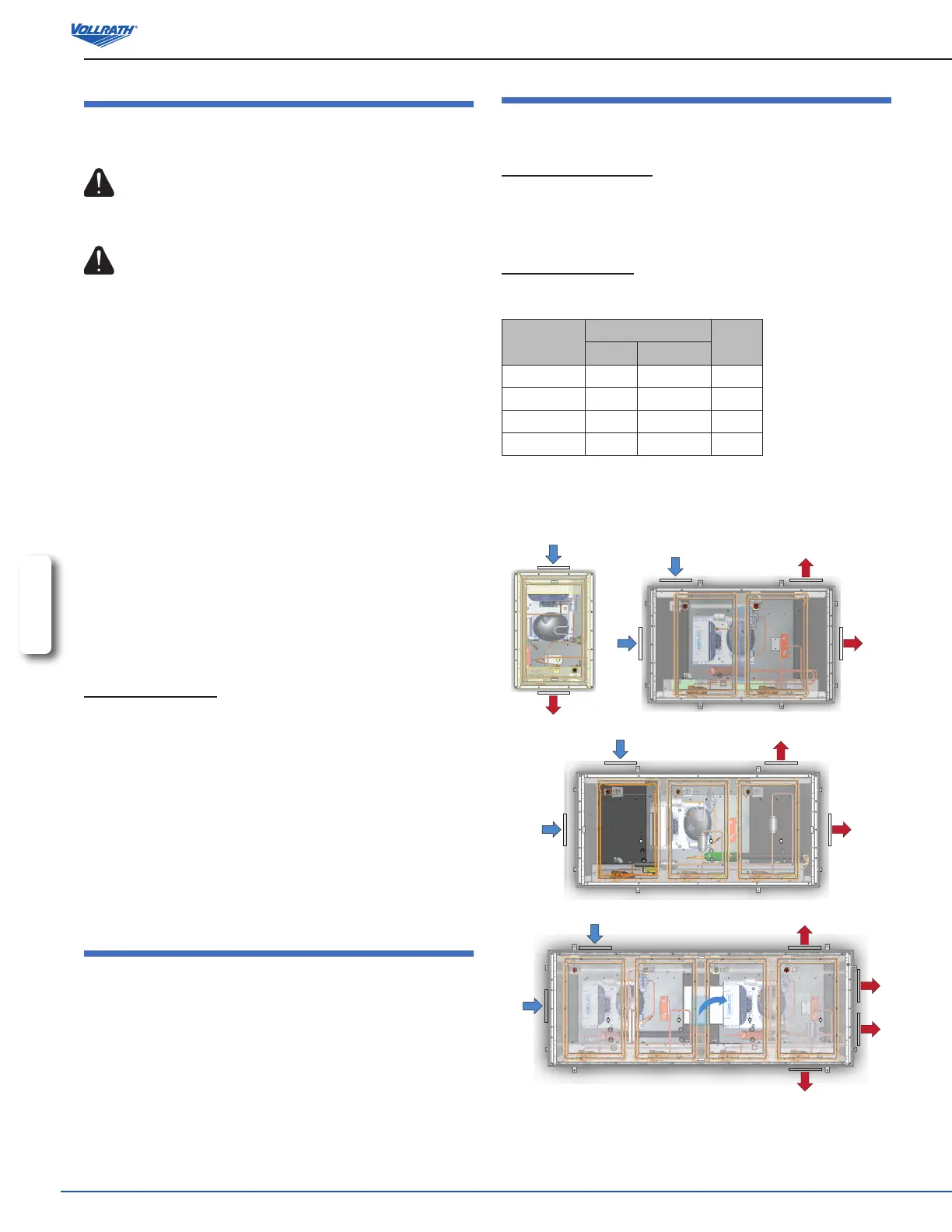

Venting requirementS
The Hot/Cold Drop-ins must have adequate ventilation. Minimum
requirements are listed in the table below.
Drop-in
Number of cutouts
SizeIntake Discharge
One Well 1 1 8" x 10″
Two Well 1 1 8" x 10″
Three- Well 1 1 8″ x 10″
Four-Well 2 2 8″ x 10″
The preferred location for the venting cutouts is on the short ends of the
cabinet. If the short end are not available the long sides can be used. See
drawings below. When louvers are installed in the long sides, Vollrath
recommends using a fan to assist air movement.
Alternate
Alternate
PreferredPreferred
Figure 1. One and two drop-in well louver cutout locations
Alternate
Alternate
Preferred
Preferred
Figure 2. Three well drop-in louver cutout locations
Alternate
Preferred
Preferred
Alternate
Alternate
Figure 3. Four well drop-in louver cutout locations
