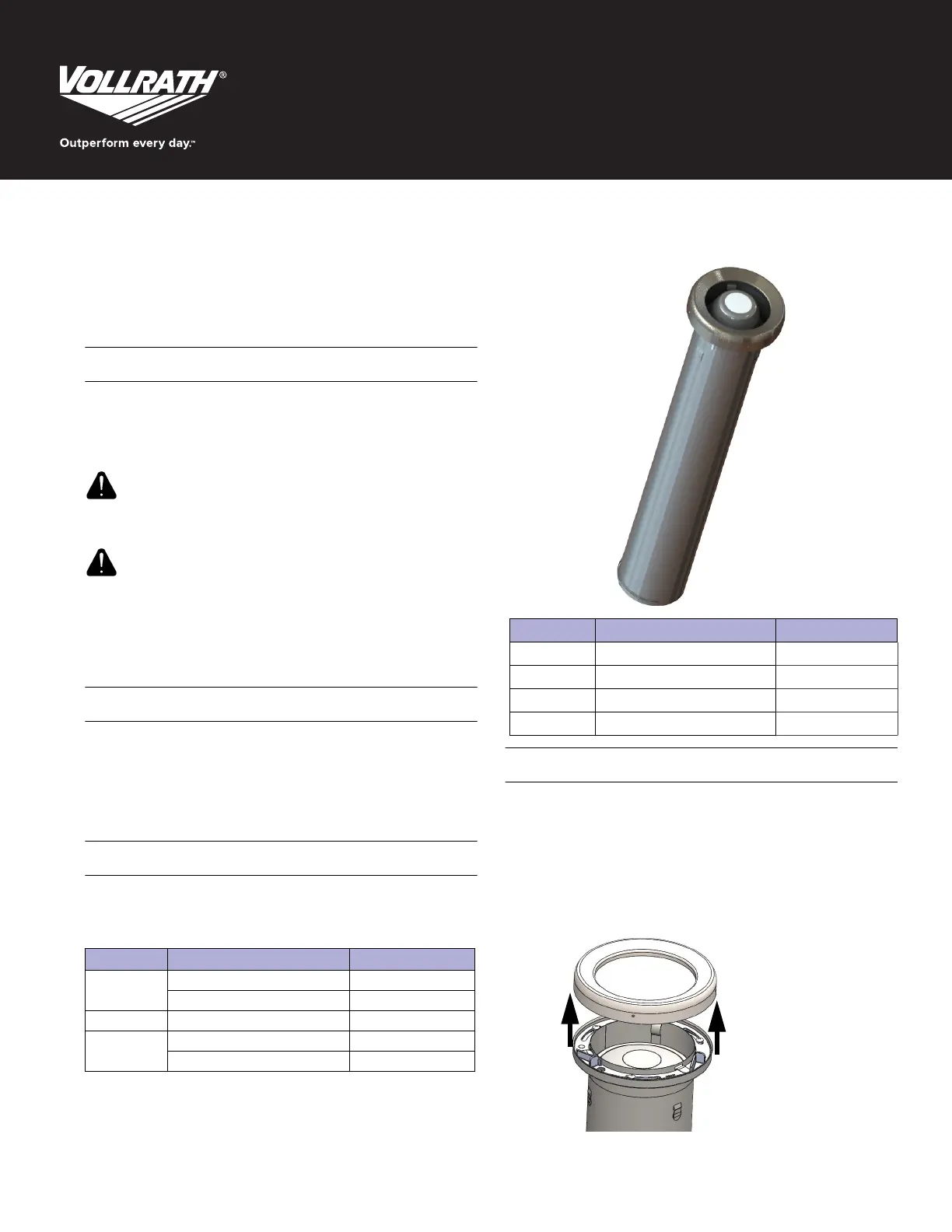

Installation Instructions

2017 The Vollrath Company L.L.C. Part No. 350719-1 ml 3/30/17

Spring Loaded In-Counter Cup Dispenser

Thank you for purchasing this Vollrath equipment. Before operating the

equipment, read and familiarize yourself with the following operating

and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. Save the original box and packaging. Use this packaging

to ship the equipment if repairs are needed.

SAFETY PRECAUTIONS

To ensure safe operation, read the following statements and understand

their meaning. This manual contains safety precautions which are

explained below. Please read carefully.

Warning is used to indicate the presence of a hazard that will or can

cause severe personal injury or death.

Caution is used to indicate the presence of a hazard that will or can

cause minor or major personal injury if the caution is ignored.

NOTICE: Notice is used to note information that is important but not

hazard-related.

TOOLS YOU WILL NEED

• #2 Phillips Screwdriver

• Drill

• ¹⁄₈" Drill Bit (For #29 Pilot Hole)

• Sabre Saw or Hand Router

• 3 #8 x 1.00" Pan Head Phillips Screws (included)

CHOOSE THE CORRECT SPRING

The dispenser includes two springs for different applications. See the

chart below. The lighter weight dispenser is factory installed. See

“Change Default Spring (Optional)” on page 3.

INSTALLATION

Mount the Dispenser

1. Cut the appropriate diameter opening in the mounting surface.

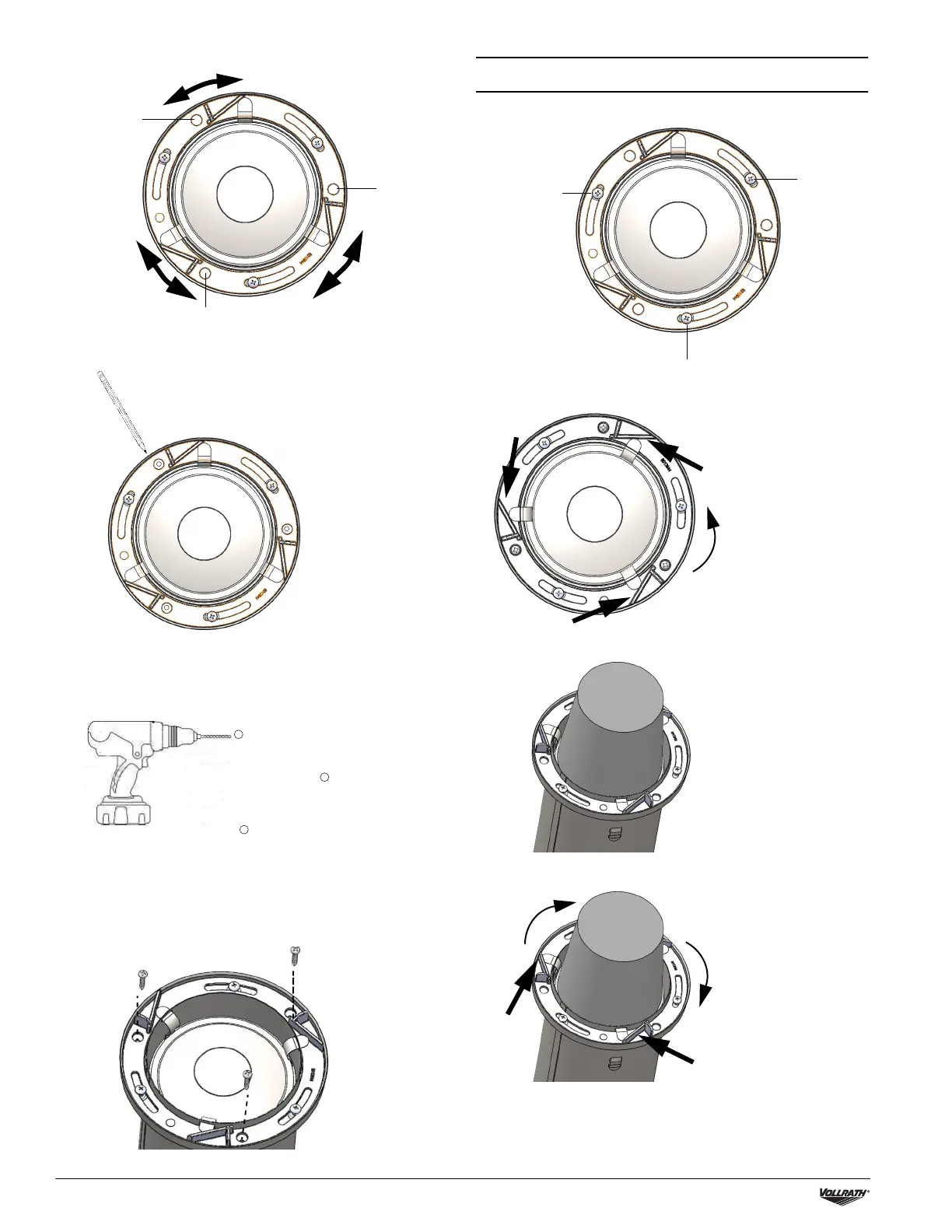

2. Lift the bezel to remove it from the tube to revel the mounting holes

and the components that can be adjusted to accommodate different

cup diameters.

WARNING

CAUTION

Mounting Dispensing Use This Spring

Vertical

Paper or Plastic Heavier Weight

Foam Lighter Weight

Horizontal Paper, Plastic or Foam Lighter Weight

Angled

Paper or Plastic Heavier Weight

Foam Lighter Weight

Item No. For Cup Rim Diameter Cutout Diameter

CADJ-1 2¹⁄₂ –3¹⁄₂" (6.4 – 8.9 cm) 4 (10.2)

CADJ-2 3 – 3⁷⁄₈"(7.6 – 9.8 cm) 4¹⁄₂ (11.4)

CADJ-3 3 – 4⁵⁄₈" (7.6 – 11.7 cm) 5¹⁄₄ (13.3)

CADJ-4 4¹⁄₂ –5¹⁄₄" (11.4 – 13.3 cm) 5³⁄₄ (14.6)
