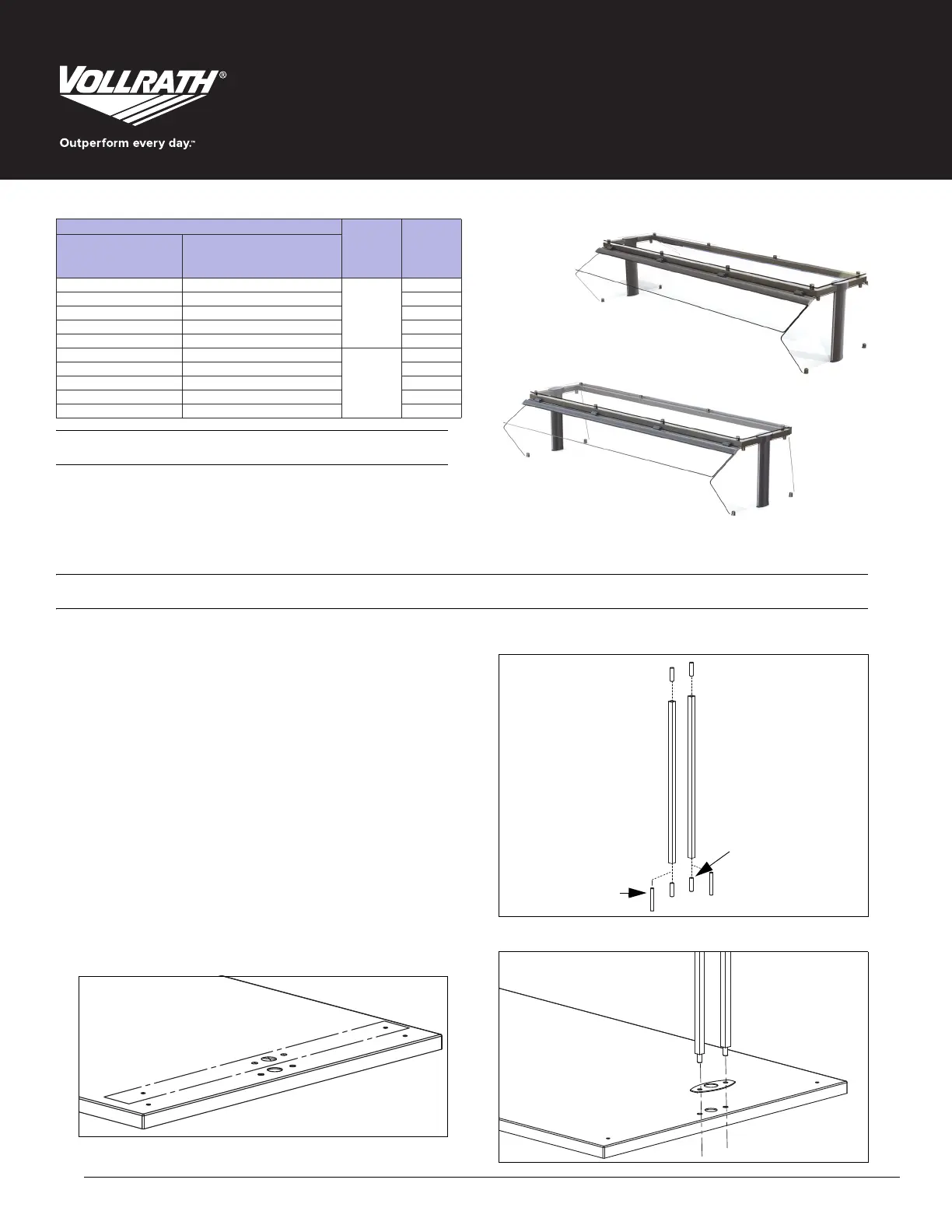

Installation Instructions

2017 The Vollrath Company L.L.C. Part No. 350588-1 ml 10/17/17

Low Profile Hinged Glass Breath Guards

Please register your product at Vollrath.com/ProductRegister

TABLE OF CONTENTS

Breath Guard Installation .............................................page 1

Single-Sided RetroFit Kit Installation ...........................page 5

Heat Strip Installation ..................................................page 7

Light Strip Installation .................................................page 8

BREATH GUARD INSTALLATION

Before You Begin

1. Download the specification sheet from Vollrath.com. You will need

to refer to this document for dimensions and NSF requirements.

2. Know the countertop manufacturer's requirements for preparing and

installing equipment into the countertop prior to starting installation.

Tools You Will Need

Drill Mounting Holes

NOTICE: Countertop materials require specific preparation. Refer to

the countertop manufacturer for instructions regarding the

proper installation of equipment into the material.

1. Place the cut out template over one end of the countertop. Follow the

instructions on the template.

2. Repeat step 1 on the other end of the countertop.

Assemble and Mount the Breath Guard

1. Assemble the tie rods.

2. Set the mounting gasket in place. Insert the tie rods through the

holes in the gasket and countertop.

Item No.

Style Length

For Signature Server

With Stainless Steel

Countertops

For Drop-ins and Signature

Server

With Non-Stainless

Steel Countertops

— LP55277

Double-

Sided

Buffet

2-Well/Pan

55278 LP55278 3-Well/Pan

55279 LP55279 4-Well/Pan

55280 LP55280 5-Well/Pan

55281 LP55281 6-Well/Pan

— LP55319

Single-

Sided

Buffet with

Top Shelf

2-Well/Pan

55315 LP55315 3-Well/Pan

55316 LP55316 4-Well/Pan

55317 LP55317 5-Well/Pan

55318 LP55318 6-Well/Pan

• Drilling template, included • ⁹⁄₃₂" drill bit

• Allen wrench, included • ¹³⁄₃₂" drill bit

•Hammer •1

" drill bit

•Drill •⁷⁄₁₆"

combo wrench

• Spotting punch • ⁹⁄₁₆ " combo wrench

Solid-surface and

laminate countertops:

use longer mounting

hardware

Stainless steel

countertops: use shorter

mounting hardware

2 Low Profile Hinged Glass Breath Guards Installation Instructions

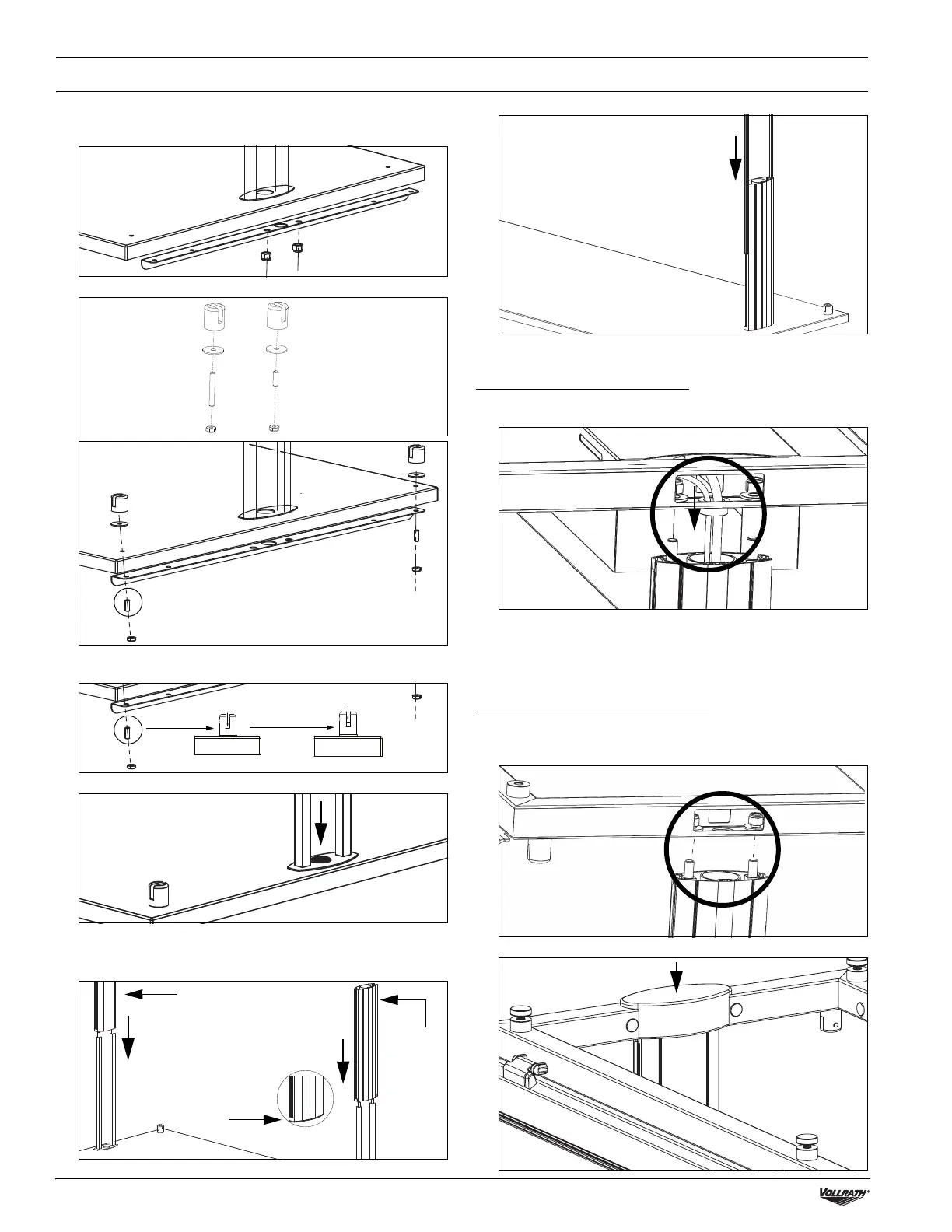

BREATH GUARD INSTALLATION (CONTINUED)

3. Position the stiffening bracket on the underside of the countertop

and over the tie rod extensions. Secure the tie rods to the base frame

with the included nuts.

4. Install the gaskets and standoffs to the countertop.

5. Position the stud so it is flush with the bottom of the slot in the

standoff.

6. Insert the grommet into the power supply hole.

7. Slide the uprights over the tie rods:

• Smooth side facing inward and the grooved side facing outward

• Spacer support tab must be at the bottom

8. Slide the glass gaskets into slots of the uprights.

If Your Breath Guard:

Includes a heat strip and/or lights

9. Thread the wires through the upright and into the cabinet below. Use

the included washers and nuts to attach the tie rods to the top frame.

10.If your breath includes a heat strip and/or lights, continue on page 7

with step 6.

11.If your breath guard contains only lights, continue below with step

13.

Does not include heat strips or lights

12.Place the top frame over the uprights and thread the tie rods

through the holes in the frame. Use the included washers and nuts

to attach the tie rods to the top frame.

13.Install the end caps.

Solid-surface

and laminate

countertops: use

longer mounting

hardware

Stainless steel

countertops: use

shorter mounting

hardware

Correct

Incorrect

Smooth side

Grooved

side

Spacer

support tab
