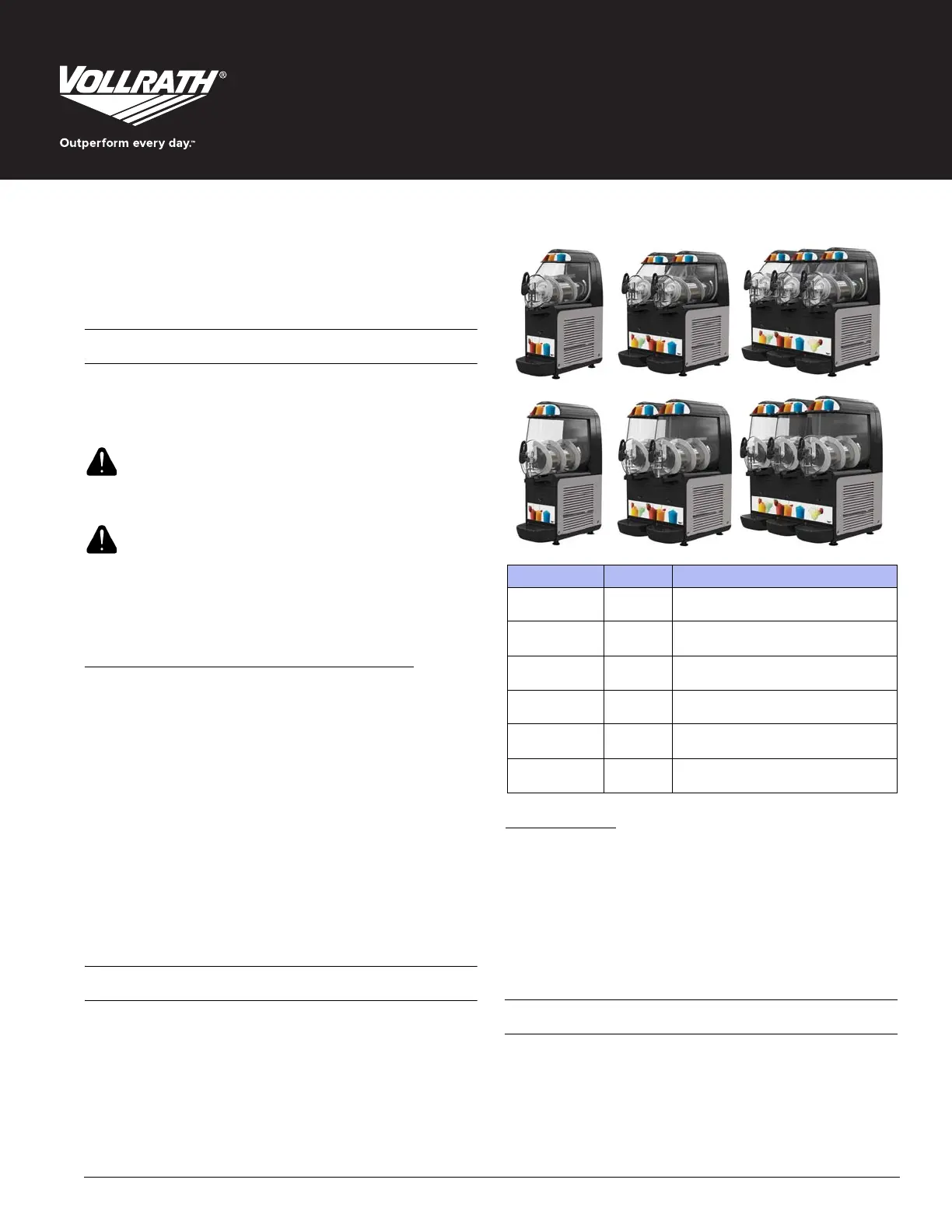

Operator’s Manual
Frozen Beverage Granita Machines
©
2018 The Vollrath Company L.L.C. Part No. 351424-1 en 4/23/18
Register your product at Vollrath.com/registration and become eligible to win a free 10" Vollrath Tribute® fry pan.
Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment
• Plug only into grounded electrical outlets that match the voltage on
the rating label.
• Do not use extension cords to connect the this equipment.
• Use this equipment in a flat, level position.
• Unplug equipment before cleaning or moving.
• Unplug when not in use.
• Keep equipment and power cord away from open flames, electric
burners or excessive heat.
• Do not operate unattended.
• Closely supervise equipment operating in public areas and/or
around children.
• Do not operate if equipment has been damaged or is malfunctioning.
• Use the equipment with the indicated liquids only.
• Do not use this machine to dispense dangerous or toxic liquids.
• Do not operate this equipment with a damaged cord or plug.
FUNCTION AND PURPOSE
The Vollrath Frozen Beverage Granita machines are designed to chill,
freeze and serve cold and frozen beverages including slushes, milk-
based, smoothies, granitas and frozen cocktails in indoor commercial
food operations. They are not intended for outdoor, household,
industrial or laboratory use.
Table of Contents
Installation ................................................................... page 2
Before First Use .......................................................... page 2
Operation .................................................................... page 3
Clean the Machine ....................................................... page 4
Disassemble the Machine ........................................... page 5
Assemble the Machine ................................................ page 6
Routine Maintenance .................................................. page 7
Troubleshooting .......................................................... page 7
CLEARANCE AND ENVIRONMENT REQUIREMENTS
For the machine to operate correctly, ambient temperature must be
between 41° and 89°F (5° and 31° C).
Indoor use only.
Allow a minimum clearance of at least 6" (15.2 cm) on all sides of the
machine so as not to impede the flow of cooling air.
WARNING
CAUTION
Item No. Model Description
VCBA118-37 VCBA118
One 6-Liter Bowl Frozen Beverage
Granita Machine
VCBA128-37 VCBA128
Two 6-Liter Bowl Frozen Beverage
Granita Machine
VCBA168-37 VCBA168
Three 6-Liter Bowl Frozen Beverage
Granita Machine
VCBF118-37 VCBF118
One 10-Liter Bowl Frozen Beverage
Granita Machine
VCBF128-37 VCBF128
Two 10-Liter Bowl Frozen Beverage
Granita Machine
VCBF168-37 VCBF168
Three 10-Liter Bowl Frozen Beverage
Granita Machine
2 Frozen Beverage Granita Machines Operator’s Manual
INSTALLATION
NOTICE: Do not lay the machine on its side or back.
NOTICE: Do not lift the machine by the tank, auger, or handles. Only
lift by grasping the bottom of the machine.
NOTICE: The machine must sit in the upright position for 24 hours
before turning it on. This will allow the oil in the
compressor to settle into place following shipping.
1. Remove the machine from the packaging, which you should keep in
case it is needed in the future.
2. Check that the machine has not been damaged during transport. If it
has, make a report to the carrier immediately.
3. Position the machine on a countertop capable of supporting the
weight, even at full load.
BEFORE FIRST USE
Before use, the machine must be disassembled, cleaned and sanitized.
1. Disassemble the machine. See page 5
2. Clean and sanitize the components. See page 4.
3. Re-assemble and lubricate the components. See page 6.
4. Sanitize the machine. See page 3.

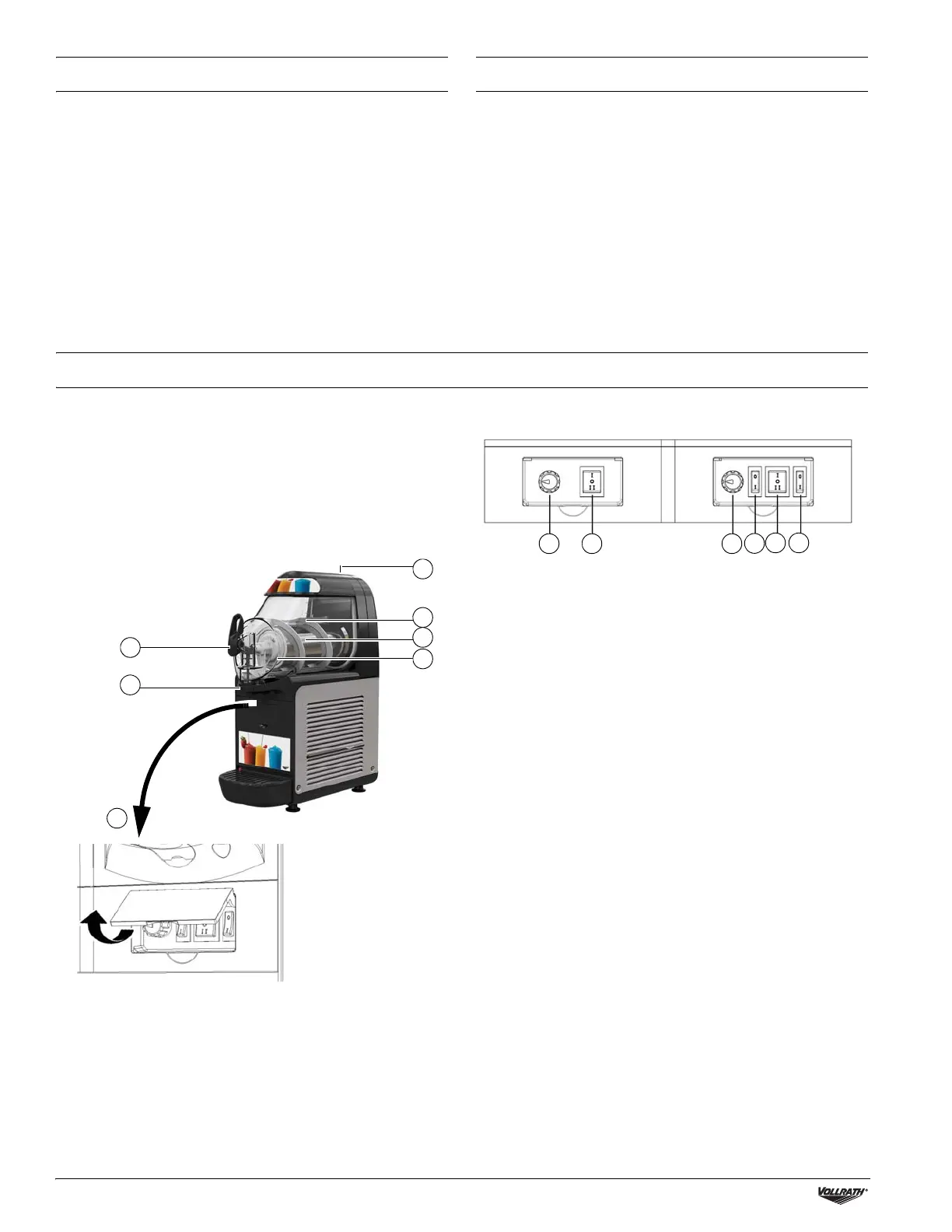

FEATURES AND CONTROLS
The machine is equipped with a power switch and a light switch. In
addition, each bowl is individually operated by a Cold Drink/Granita
switch. It is possible to dispense both cold drinks and Granita from one
machine.
When a bowl is in Cold Drink mode the beverage temperature is
controlled by the corresponding temperature control knob.
When a bowl is in Granita mode the mix consistency is controlled by
the corresponding adjustment screw. See “Adjustments” on page 4.
A Control Panel
B Condensation Ring
C Spigot Assembly
D Lights
E Auger
F Evaporator Cylinder
G Outer Magnetic Rotor Assembly
A
C
D
E
G
F
B
H Master Power Switch
0 position Power is turned OFF to all functions.
I position Power is turned ON to all functions and the
other switches are enabled. The fan motor
runs.
I Bowl Cold Drink / Granita Switch
I position Cold Drink Mode. Auger and refrigeration ON.
0 position Auger and refrigeration OFF.
II position Granita Mode. Auger and refrigeration ON.
JLight Switch
I position ON
0 position OFF
K Temperature Control Knob
Turn clockwise to decrease temperature.
Turn counterclockwise to increase temperature.
HI
J
KIK
