INSTALLATION INSTRUCTION

LED Beauty Spot Canopy

DR-LED302

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• Installed by a qualied electrician

• Fixture is intended for installation in accordance with National Electric Code, and local regulations.

Consult with local inspector to assure compliance.

• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing

or modifying the system.

• Retain instructions for future maintenance reference.

OVERVIEW

Intended ceiling, cabinets and display. Fixtures use a LED, 100mA maximum (used with 24 volt power supply).

Fixture is held in place by spring tension against the cut out hole.

INSTALLING FIXTURE:

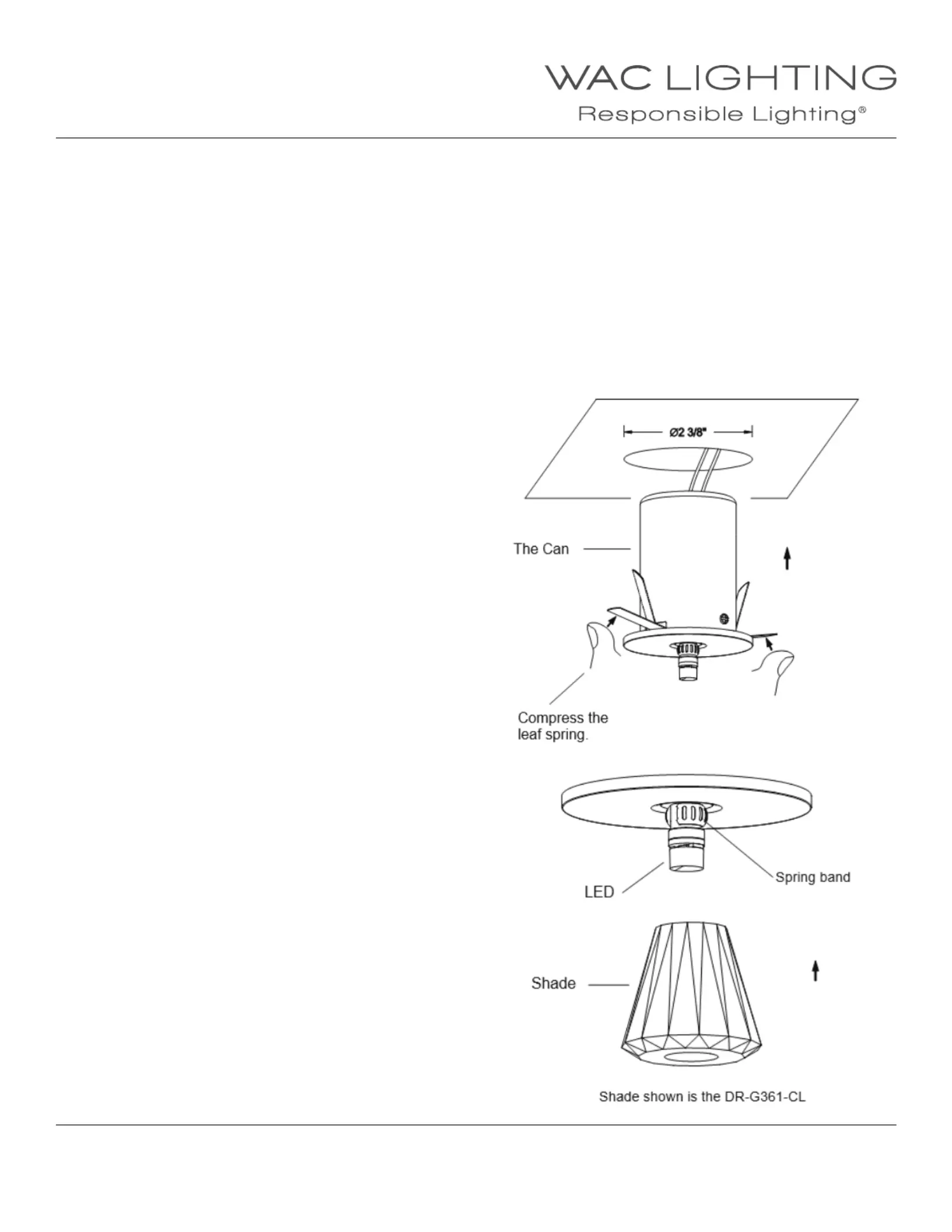

1. Run a wire from a remote transformer to the

xture site (use 24 volt listed transformer,

not supplied).

2. Cut a 2 3/8” diameter opening on the

mounting surface.

3. Bring the wire through the hole.

4. Loosen the two screws on either side of can

to remove and access the socket wires.

5. Remove the knock out in the can and install

the appropriate wire clamp.

6. Connect “output” wires from the transformer

to the socket wires with wire nuts provided.

7. Tuck wires under the can and re install with

the two screws removed earlier.

8. Compress the leaf springs on either side of

the housing and insert into the cut out hole.

INSTALLING SHADE:

1. Shades will t over the lamp and are held in space by

a spring band at the base of the socket, simply push on

or pull o.

2. Shades sold separately. Use shades from the “DR” series.

Retain instructions for future reference.
