IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
- Supply conductors (Power Wires) Connecting the xture must be rated minimum 90°C. If uncertain, consult an electrician.
- These luminaires (xtures) are designed to meet the latest NEC requirements and are listed in full compliance with UL 1598.
- Before attempting installation, check your local electrical code, as it sets the wiring standards for your locality.

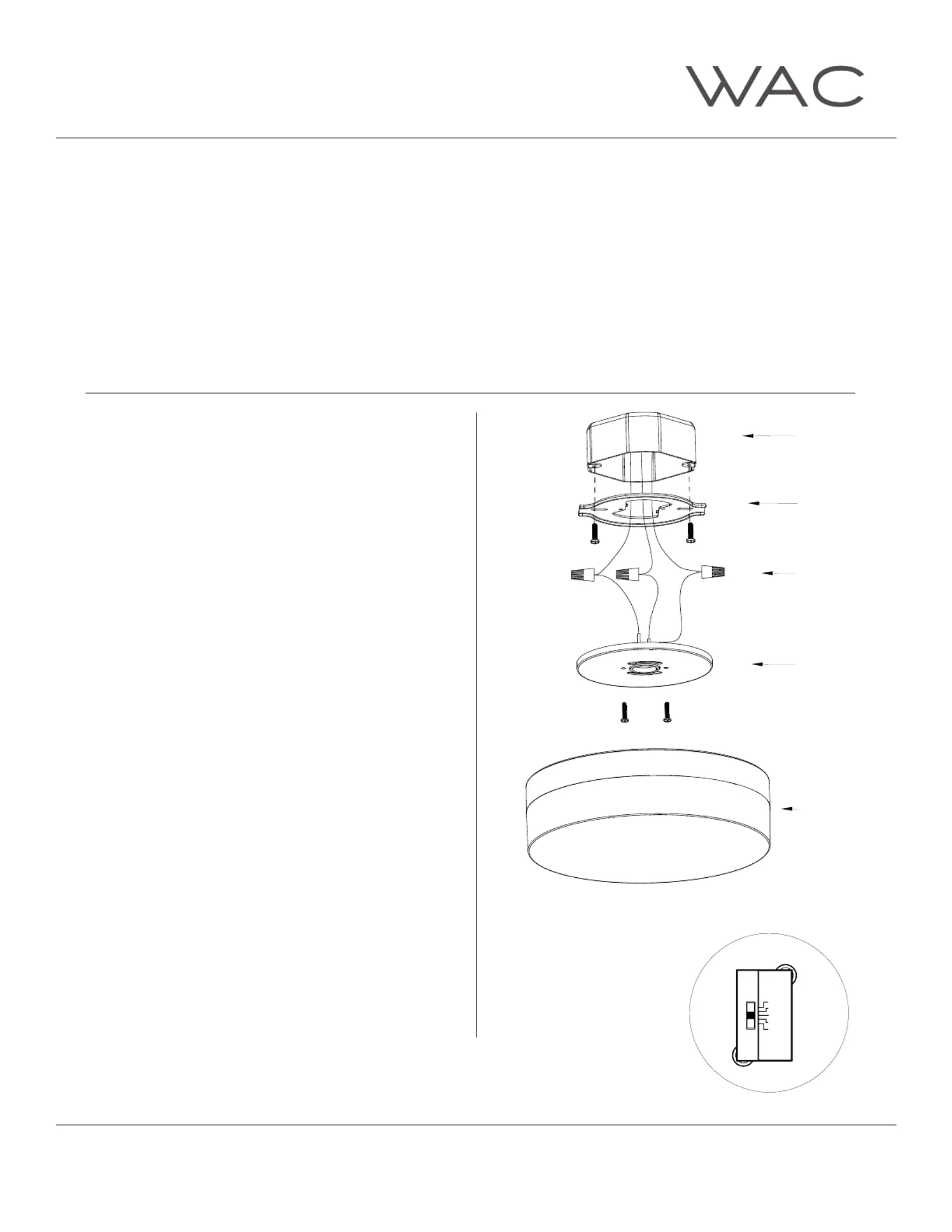

1. Install plate the the mounting provided to junction box using
the junction box screw provideds. Please note the "This side up"
sticker and mount that on the same side as the junction box.
2. Provide electrical service according to the “National Electrical
Code” or your local electrical code to the outlet box.
Connect supply wires to wires and insulate with proper canopy
Connect incoming ground wire to ground wire mounting plate
Connect incoming common wire to fixture common (white).
Connect incoming hot wire to fixture black wire.
Tighten the canopy to the mounting plate using the canopy
Select the desired fixture color temperature by setting the
sliding switch on the back of the fixture to the target CCT.
Raise the fixture to the , guid canopy e the tabs on the back of
the fixture twist into the slots in the mounting plate and the
fixture to provide power and secure the fixture.
Uses ” junction box or a combination 3 , 4" junction box
3/0-4/0 electrical box. or pancake
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. .202 Oct 3
