INSTALLATION INSTRUCTION
LED DISC
FM-306-9CS

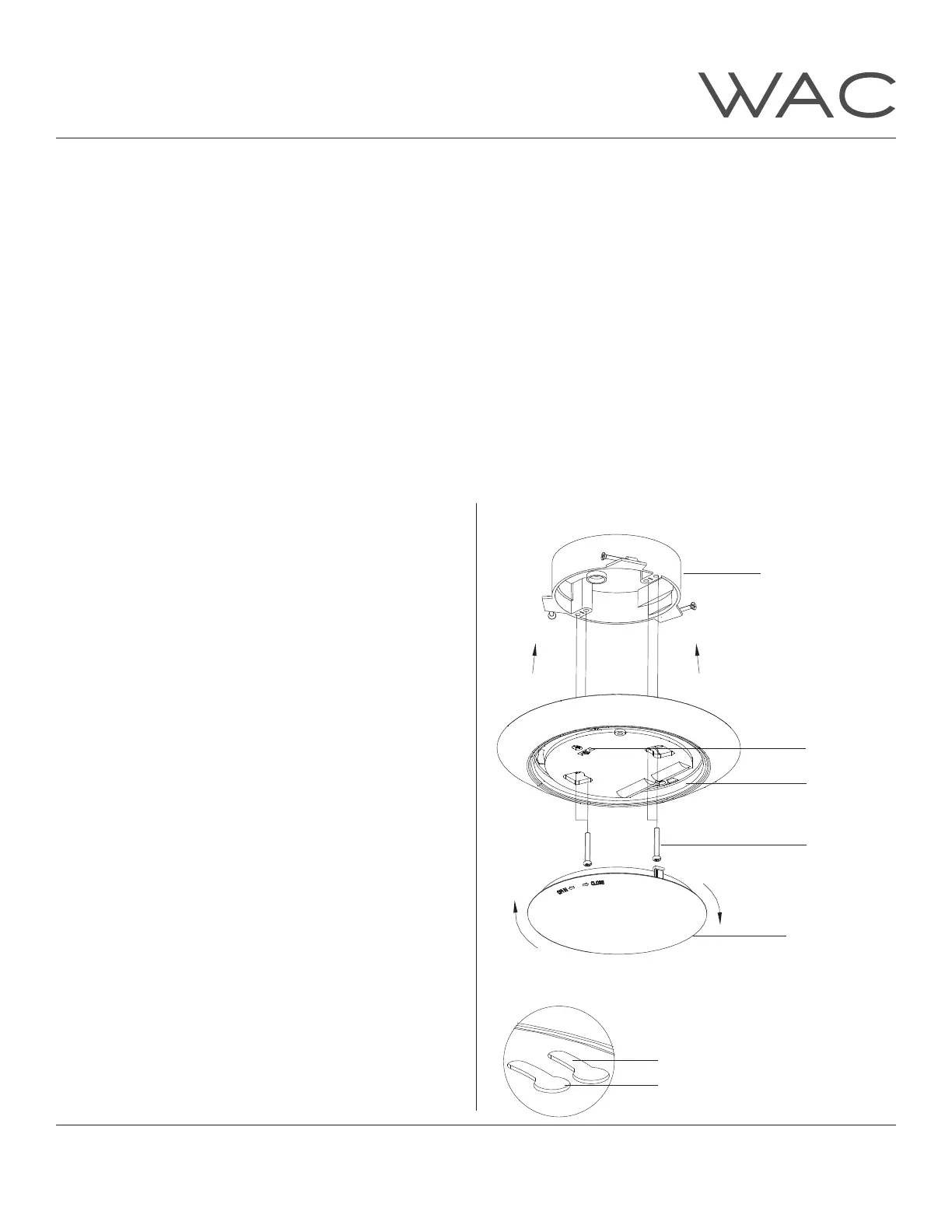

Fig. 1
1. Attach two mounted screws into outlet box leaving enough of
screw exposed to engage keyholes in the top of light xture.
(Fig.1 , Fig.2 )
2. Provide electrical service according to the “National Electrical
Code” or your local electrical code to the junction box.
3. Connect supply wires to xture wires and insulate with proper
size wire nuts (Fig.1)
4. Connect incoming ground wire (green or bare) to xture ground
wire (green or bare).
5. Connect incoming common (white) wire to xture common
(white).
6. Connect incoming hot (typically black) wire to xture black wire.
7. Raise the light xture to the junction box and tighten screws.
SETTING COLOR TEMPERATURE
Once the xture is fastened,use the switch on the side of the xture
to selected desired color temperature.
LEDS INSTALLATION
Twist the lens clockwise on light xture metal enclosure and lock the
lens in place.
3” or 4” Junction Box
(not included)
(3-0 / 4-0 combination box shown)
Mounted Screw
Light Fixture
Lens
INSTALLATION
Over 3” or 4” junction box
4” Keyholes
3” Keyholes
Fig. 2
CCT Switch
WARNING
IMPORTANT: NEVER attempt any work without shutting off the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
- Supply conductors (Power Wires) Connecting the xture must be rated minimum 90°C. If uncertain, consult an electrician.
CAUTIONS
- These luminaires (xtures) are designed to meet the latest NEC requirements and are listed in full compliance with UL 1598.
- Before attempting installation, check your local electrical code, as it sets the wiring standards for your locality.
