INSTALLATION INSTRUCTION
L Track Systems
LT2, LT4, LT6, LT8
SAFETY INSTRUCTION
• Read all of these instructions before installing the track system.
• Turn o power at main switch before installing or modifying the system.
• Do not install within six inches of any curtain or combustible materials.
• Do not install less than 5 feet above a oor.
• Do not install in damp or wet locations.
• Do not install concealed, or extended through building walls.
• Do not attempt to energize anything other than a track light xture.
• Do not connect a track to more than one branch circuit. Although track light systems may seem to operate acceptably,
a dangerous overload of the neutral may occur and result in a risk of re.
• Check with a qualied electrician before wiring.
• All installation shall be in accordance with NEC and all local codes
• Save these installation instructions and refer to them when additions or changes to the track conguration are made.

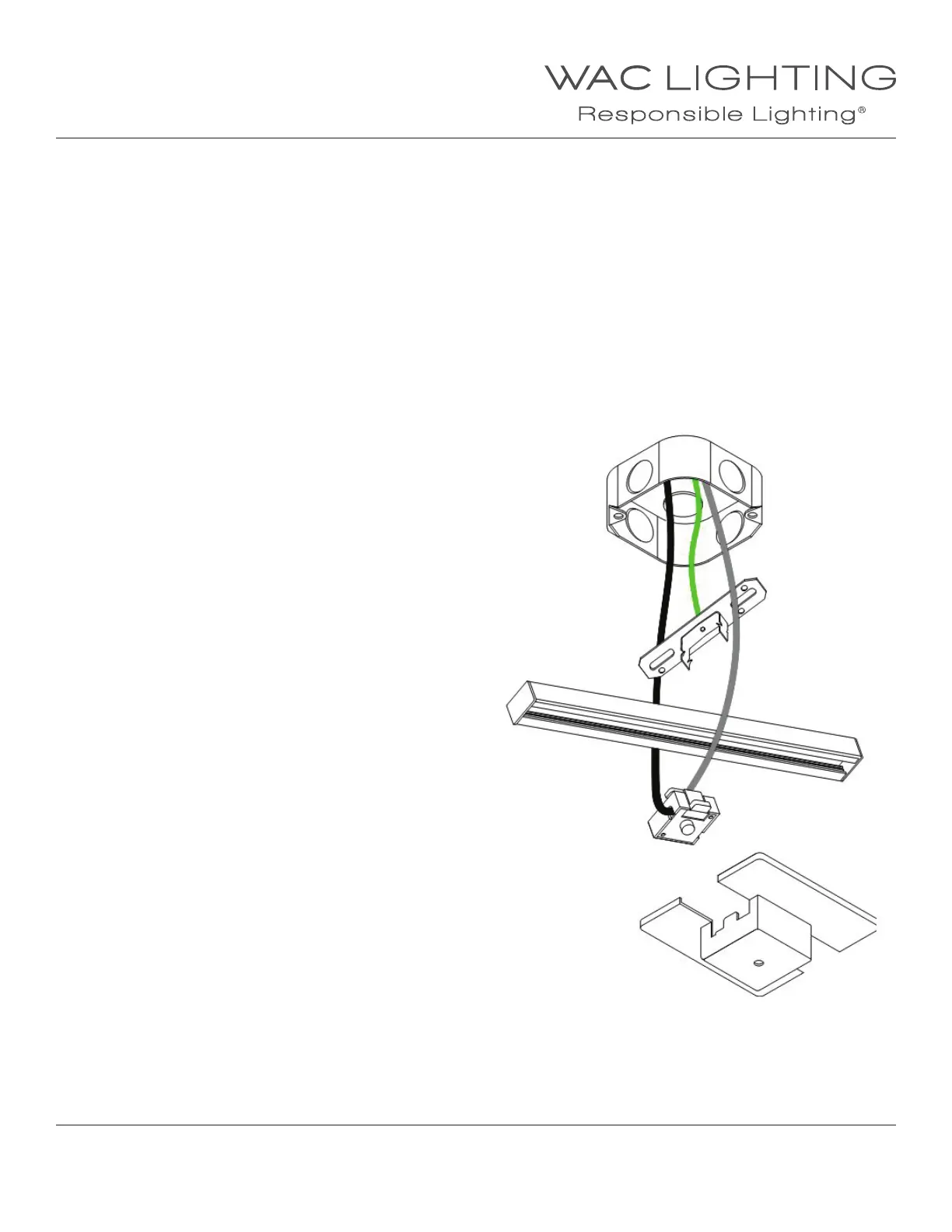

ELECTRICAL FEED FROM A JUNCTION BOX
WITH FLOATING CANOPY
The oating canopy covers a junction box and brings
power to the track anywhere along its length.
1. Make sure power is o.
2. Secure cross bar to the junction box.
3. Hold track to the ceiling and mark the position
of mounting holes.
4. Secure track between the scratch brackets located
on the cross bar.
5. Mount track to ceiling following track mounting
instructions (see track mounting section).
6. Note the polarity of the track (a ridge running along the length)
Note the slant on the locking tab of the adapter.
Turn the electrical adapter 90º so the low side faces the ridge.
Route wires along the side of track into the junction box.
7. Connect neutral (white) and hot (black) wires from
the ceiling with their respective wires from the track adapter,
with wire nuts (supplied).
8. Connect ground wire from ceiling to green grounding
wire from adapter, with a wire nut (supplied).
9. Tuck excess wire back into the junction box.
10. Replace canopy cover and secure with screw.
