Side 1/5

*Only use a 9 volt DC, Center Negative, 100mA to power the pedal.

The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.

Daisy chain power supplies are not recommended.

Got questions or need a repair?

Email help@walrusaudio.com to talk with a real live human about your Walrus gear!

This product comes with a limited lifetime warranty.

Click Here for more info.

The Monumental Harmonic Stereo Tremolo is an analog, optical tremolo inspired by the

beautifully jagged, red-sand desert landscape of Monument Valley. The Monumental is

capable of blending between harmonic and standard tremolo in stereo to produce rich,

luscious, warm pulsating modulation producing valleys as smooth or as jagged as the real

ones that our dear mother nature created long ago.

VOL: Use to adjust the overall volume of the left and right channels. Counterclockwise

is less volume, clockwise is maximum volume. You are able to achieve +10dB of clean

gain at maximum volume.

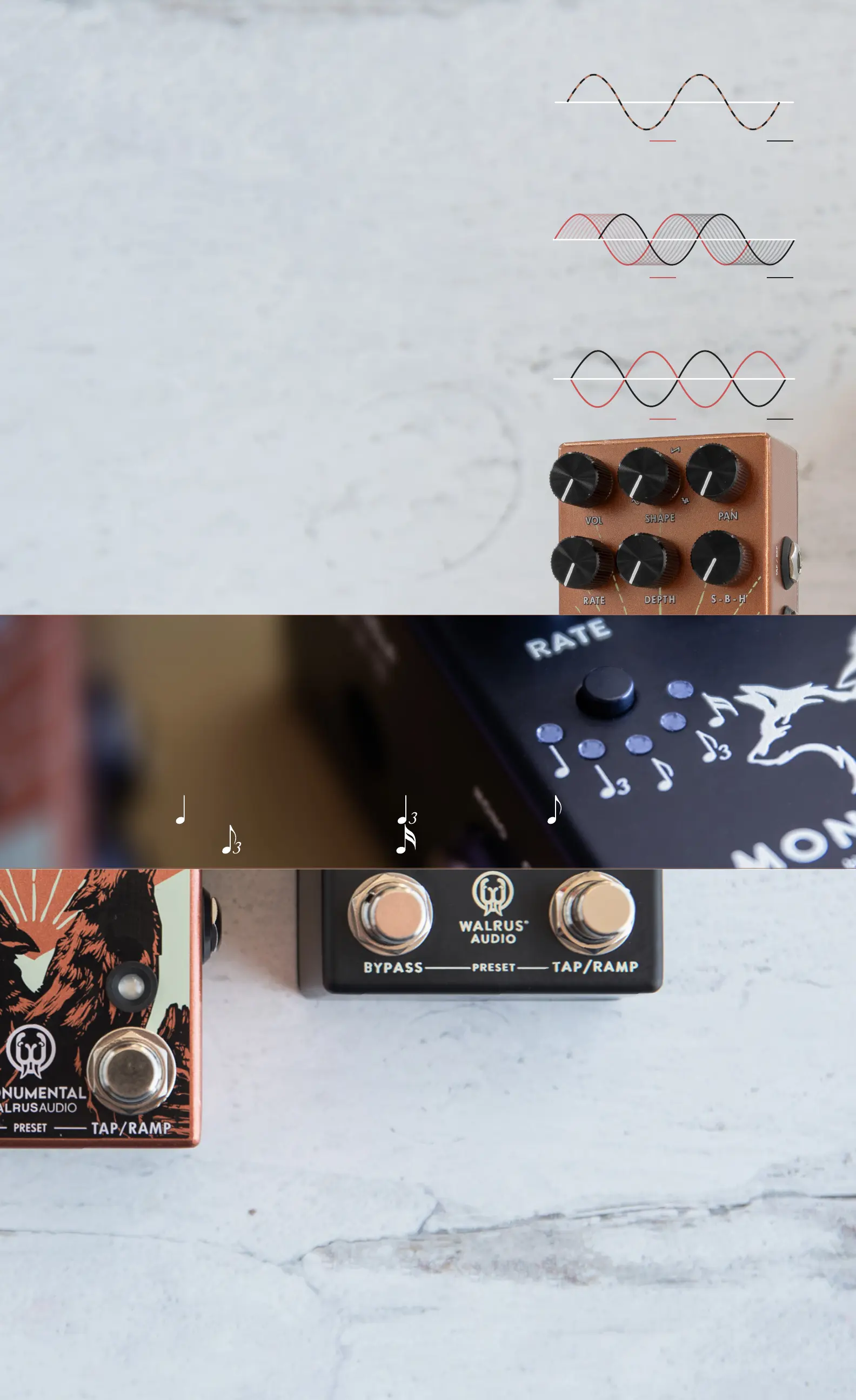

SHAPE: Use to change the waveshape of the LFO.

Sine Square Saw Ramp Bump Random

PAN: Control the stereo spread of the left and right channels.

Counterclockwise is your standard tremolo sound, the left and

right channels have the same LFO. Turning the control

clockwise will offset the phase of the right LFO to introduce

stereo spread. Fully clockwise is maximum panning

with the right channel LFO being 180 degrees out of

phase from the Left LFO.

CONTROLS

0% paNNed 50% paNNed 100% paNNed

RATE: Finely adjust the speed of the LFO (TAP LED

will always indicate the rate). Counterclockwise

for slower speeds, clockwise for faster speeds.

DEPTH: Control the intensity of the tremolo effect.

Fully Counterclockwise will give you no tremolo

effect, clockwise will give you the maximum

tremolo effect.

S-B-H: Use this control to blend between

standard and harmonic tremolo modes.

In , all frequencies get affected at the Standard

same time.

In , the High frequencies and Low Harmonic

frequencies are offset from each other - When

high is on, low is off. When high is off, low is on.

Pro Tip: Experiment with the S-B-H knob in

combination with the Pan knob to create

interesting polyrhythmic sounds.

TAP/RAMP: Tap this switch to set the rate of the LFO. Your taps are averaged for more

accurate timing, so more taps = more accurate timing. Tap the switch once to reset the

starting point of the LFO. Holding down the tap tempo switch will engage the “ramp”

feature. While holding down the switch you can adjust the rate knob to determine where

the LFO ramps to. If you set the ramp speed slower than your current tempo, it will ramp

down, then back up to your set tempo upon release. If you set your ramp speed higher

than your current tempo, then it will ramp up, then back down to your current tempo

upon release. This can be saved per preset and will also work in live mode.

BYPASS: Press this control once to turn the pedal bypass/activate

the effect. Hold down the Bypass switch when the pedal is active

to edit the expression parameters (See Expression).

CONTROLS

TAP DIVISION BUTTON: Use this control to

determine the subdivision of the LFO based

on the current rate, which can be set via the

RATE control or the TAP TEMPO. Tap division

is always active.

Available divisions are:

Quarter Note Quarter Note Triplet Eighth Note

Eighth Note Triplet Sixteenth Note

STANDARD MODE

BLENDED

(S-B-H knob fully counterclockwise)

(S-B-H knob begins to separate low & high frequencies)

(S-B-H knob fully clockwise)

HARMONIC MODE

LOW FREQUENCY

HIGH FREQUENCY

LOW FREQUENCY

HIGH FREQUENCY

LOW FREQUENCYHIGH FREQUENCY

Produkt Specifikationer

Mærke:	Walrus Audio
Kategori:	Ikke kategoriseret
Model:	Monumental
