MOUNTING AND WIRING INSTRUCTIONS
NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures
meet all UL specifications.
1.
Turn off power at circuit box to avoid possible electric shock.
2. Secure mounting bar (A) to outlet box (B) with outlet box screws (C) (
if applicable
) (see fig. 1).
then thread mounting nipple (E) onto mounting bar (A) and secure hex nut 1(D1).
4. Spread fixture arms (W) to an equal distance apart. Attach fixture ring (T) to the fixture arms (W) by
screws (R).
5. Thread fixture loop (G) onto nipple (I).
NOTE: Do not twist or kink wires when sliding fixture loop (G) downward.
6. Open one link on bottom end of chain (J). Attach to fixture loop (G). Securely close link on chain (J).
7. Thread screw collar ring (K) onto screw collar (L), then place canopy (M) over top of screw collar (L).
8. Lace wires up through every other link on chain (J) then through screw collar (L), canopy (M), and
mounting nipple (E).
9. O
pen one link on top end of chain (J). Attach to loop on screw collar (L). Securely close link on chain (J).
10. Identify color coding of fixture wires (see fig. 2).
11. Connect the smooth wire with marking printed or molded from the fixture with the black wire from
outlet box (B)
by wire connector (N), and wrap the wire connector (N) with electrical tape for a
more secure connection.
12. Connect the ribbed wire from the fixture with the white wire from the outlet box (B)
by wire
connector (N), and wrap the wire connector (N) with electrical tape for a more secure connection.
13. Partially thread green grounding screw (O) into side hole (P) on mounting bar (A) (see fig. 1).
14.
Wrap grounding wire from fixture around green grounding screw stem (O) leaving enough excess
wire, then connect the excess grounding wire from the fixture with the grounding wire from outlet
box (B) by wire connector (N) (if applicable), then wrap the wire connector (N) with electrical tape
for a more secure connection.
15. Tighten green grounding screw (O). Do not over tighten.
16. Remove screw collar ring (K) from screw collar (L) and secure screw collar (L) to mounting nipple (E).
17. Tuck wires inside outlet box (B).
18. Raise canopy (M) to ceiling and secure screw collar ring (K) to screw collar (L).
FIXTURE ASSEMBLY INSTRUCTIONS
Warning: This fixture is for indoor use only.
1. Install glass shade (Q) and metal ring (U) (if applicable) into holder (T). Secure with thumb screws
(H) or retaining ring(s) (S), whichever is applicable. Do not over tighten.
2. Install lamp(s). Do not exceed recommended wattage.
3. Turn power back on at circuit box.
Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com
, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Lighting. All rights reserved. Made in China
WARNING
Turn off electricity to the mounting site before beginning installation.
Mounting instructions must be followed exactly as shown for the fixture to be safely supported.
CLEANING AND CARE
To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can
discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to
clean this fixture.
ORDERING PARTS
Keep this manual for future reference, and in case replacement parts are needed. Available parts can
be ordered from place of purchase. Use exact wording from diagrams when ordering parts.
FIGURE 2.
FIXTURE
WIRES:
Smooth
HOUSE
WIRES:
Black
(Hot)
HOUSE
WIRES:
White
(Neutral)
HOUSE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Ribbed
*GROUND
WIRE
SIDE
HOLE (P)
WIRE
CONNECTORS (N)
*OUTLET BOX SCREWS (C)
LOCK WASHER (F)
HEX NUT 1 (D1)
MOUNTING NIPPLE (E)
NIPPLE (I)
SCREW COLLAR (L)
CANOPY (M)
CHAIN (J)
HOLDER (T)
SCREWS (R)
FIXTURE
RING (T)
SCREW COLLAR
RING (K)
FIXTURE LOOP (G)
FIXTURE
ARM (W)
MOUNTING
BAR (A)
*METAL RING (U)
RETAINING RING (S)
*OUTLET
BOX (B)
GREEN GROUNDING
SCREW (O)
GLASS
SHADE (Q)
*NOT SUPPLIED
Line art shown may not exactly match the
fixture enclosed. However, the installation
instructions do apply to this fixture.

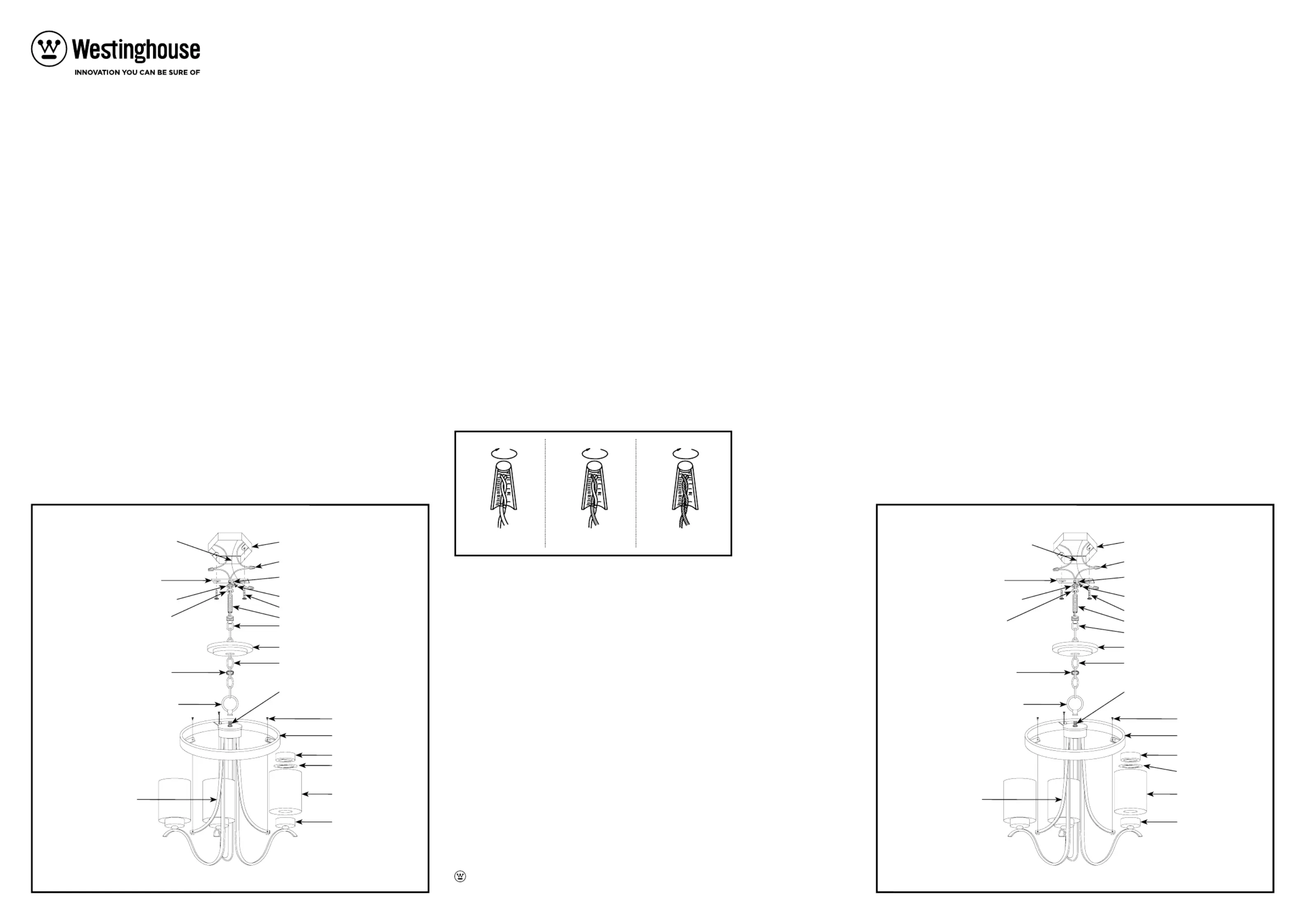

FIGURE 1.
MANCHON
FILETE (I)
ANNERO DE L’APPAREL
D’ECLAIRAGE (T)
SUPPORT (T)
VIS (R)
BRAS L’APPAREIL
D’ECLAIRAGE (W)
*ANNEAU
EN METAL (U)
LA BAGUE DE
RETENTION (S)
ABAT-JOUR
EN VERRE (Q)
*FIL DE MISE
A LA TERRE
TROU
LATERAL (P)
CONNECTEURS
DE FIL (N)
*VIS DE LA BOITE DE
SORTIE DE COURANT (C)
RONDELLE DE
BLOCAGE (F)
L’ECROU
HEXAGONAL 1 (D1)
MANCHON FILET DE FIXATION (E)
COLLIER FILETE (L)
CHAPEAU (M)
CHAINE (J)
LA BAGUE
DU COLLIER
FILETE (K)
LA BOUCLE DE L’APPAREIL
D’ECLAIRAGE (G)
BARRE DE
FIXATION (A)
*BOITE DE SORTIE
DE COURANT (B)
VIS DE MISE A LA
TERRE (VERTE) (O)
*NON FOURNI
Il est possible que le dessin illustré ici ne
soit pas la reproduction exacte de l’appareil
d’éclairage contenu dans la boîte.
Les instructions d’installation demeurent
cependant valables.

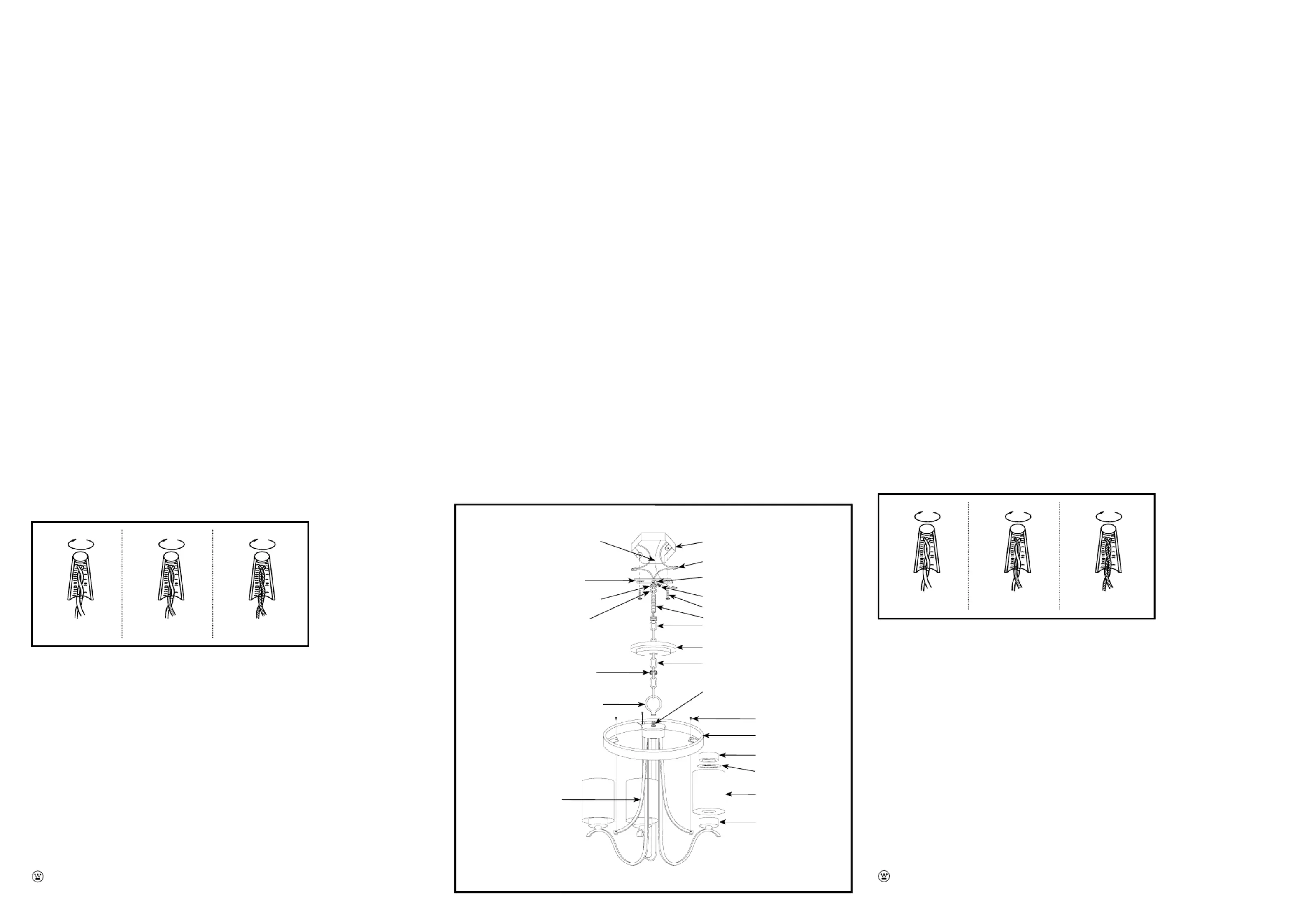

FIGURE 1.
W-509
042820
ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE
Congratulations on your Westinghouse purchase. This fixture has been designed to give you many
years of beauty and service. For questions and comments, please visit www.westinghouselighting.
com/contact-us.
NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any pack-
ing materials (see figure 1).
Owner’s Manual
Indoor Lighting Fixture
Installation Instructions
Fixture Warranty
This Westinghouse lighting fixture is warranted against defects in material and workmanship for a period
of five years from purchase date. This warranty is in lieu of all other warranties expressed or implied.
This warranty does not cover acts of nature such as lightening damage, or corrosion and discoloration
of components, nor does it cover damages caused through abuse, improver installation, surges in
electric current, or acts of third parties.
This warranty does not cover the costs of removing and re-installing the lighting fixture.
If this product fails for any reason covered by this warranty, please contact us at www.westinghouse-
lighting.com/contact-us.
WARNING:
ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.
Read and follow instructions exactly as shown. If instructions are unclear, do not proceed.
Contact a qualified electrician. Read all instructions before beginning. Proper wiring is essen-
tial for safe operation of this fixture. When cutting or drilling into walls or ceilings, do not dam-
age electrical wiring, gas lines, or water lines. If any of the fixture or wiring components are
damaged, do not install fixture. Return to place of purchase.
For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are provid-
ed on the U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before 1985
have supply wires rated 60° C. Consult a qualified electrician before installing.
Guide d’utilisation
Instructions d’installation
Appareil d’éclairage pour utilisation intérieure
LES INSTRUCTIONS D’ASSEMBLAGE DE L’APPAREIL D’ÉCLAIRAGE POUR UTILISATION INTÉRIEURE
Félicitations ! Vous avez acheté un produit de Westinghouse Lighting. Cet appareil d’éclairage a été
conçu pour durer de nombreuses années. Si vous avez des questions ou des commentaires à
nous communiquer, veuillez visiter www.westinghouselighting.com/contact-us.
NOTA : Déballez soigneusement l’appareil d’éclairage et les pièces. Assurez-vous que toutes les pièces
y sont avant de mettre l’emballage au rebut (voir fig. 1).
GARANTIE LIMITÉE DE CINQ ANS
Ce luminaire Westinghouse est garanti pièces et main-d’oeuvre pour une période de Cinq ans à compter
de la date d’achat. Cette garantie remplace toute autre garantie, explicite ou implicite.
Cette garantie ne couvre pas les phénomènes naturels comme les dommages de la foudre, ni la corro-
sion ou la décoloration des composants, pas plus qu’elle ne couvre les dommages causés par les abus,
une installation inappropriée, les surtensions électriques ou les actes de tiers.
Cette garantie ne couvre pas les coûts de dépose et de pose du luminaire.
En cas de défaillance du produit, pour une raison quelconque, couverte par cette garantie, veuillez
nous contacter via www.westinghouselighting.com/contact-us.
MISE EN GARDE: L’ÉLECTROCUTION POURRAIT CAUSER DE GRAVES BLESSURES PERSONNELLES.
Lisez ces instructions et suivez-les exactement comme illustré. En cas de doute, ne commencez
pas l’installation. Consultez un électricien qualifié. Lisez toutes les instructions avant de com-
mencer l’installation. Un câblage approprié est essentiel au bon fonctionnement de cet appareil
d’éclairage. Lorsque vous faites une entaille ou que vous percez un trou dans un mur ou un
plafond, n’endommagez pas les câbles électriques, les canalisations de gaz ou d’eau. Si l’un des
composants de raccordement ou de l’appareil d’éclairage est endommagé, n’installez pas cet
appareil d’éclairage. Retournez-le à l’endroit où vous l’avez acheté.
Convient uniquement aux appareils comportant un avertissement indiquant que l’appareil
d’éclairage est doté d’un fil supportant une chaleur de 75°C ou 90°C. (Ces avertissements se
trouvent sur l’étiquette U.L. et sur l’emballage de l’appareil d’éclairage.)
