MOUNTING AND WIRING INSTRUCTIONS
NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures
meet all UL specifications.
1. Turn off power at circuit box to avoid possible electric shock.
2. Remove cap nuts (A) from back plate (B) and remove universal mounting plate or cross bar (C),
leaving mounting screws (D) in place (see fig. 1).
3. Secure universal mounting plate or cross bar (C) to outlet box (E) with outlet box screws (F) (if
applicable).
5. Connect the black wire from the fixture with the black wire (live wire) from the outlet box by wire
connector (G), and wrap the wire connector (G) with electrical tape for a more secure connection.
6. Connect the white wire from the fixture with the white wire (neutral wire) from the outlet box by
wi
re connector (G), and wrap the wire connector (G) with electrical tape for a more secure connection.
7. Partially thread green grounding screw (H) into side hole (I) on universal mounting plate or
cross bar (C) (see fig.1).
8. Wrap grounding wire from fixture around green grounding screw stem leaving enough excess
wire, then connect the excess grounding wire from the fixture with the grounding wire from outlet
box by wire connector (G) (if applicable), then wrap the wire connector (G) with electrical tape for a
more secure connection.
9. Tighten green grounding screw (H). Do not over tighten.
10. Tuck wires inside outlet box (E) (see fig. 1).
FIXTURE ASSEMBLY INSTRUCTIONS
Warning: This fixture is for indoor use only.
1. Position back plate (B) over mounting screws (D) by aligning back plate openings (J) with
mounting screws (D).
2. Secure with cap nuts (A).
3. Install lamp(s). Do not exceed recommended wattage.
4. Turn power back on at circuit box.
W-427
042815
WARRANTY INFORMATION
This Westinghouse Lighting Fixture is warranted against defects in material and workmanship for a
period of Five Years from purchase date. This warranty is in lieu of all other warranties expressed or
implied.
This warranty does not cover acts of nature such as lightning damage, or corrosion and discoloration
of components, nor does it cover damages caused through abuse, improper installation, surges in
electric current, or acts of third parties.
This warranty does not cover costs of removing and re-installing the lighting fixture.
If this product fails for any reason covered by this warranty, contact us toll free at 1-888-417-6222.
ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE
Congratulations on your Westinghouse purchase. This fixture has been designed to give you many
years of beauty and service. For questions and comments, please visit www.westinghouselighting.
com/contact-us.
NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any
packing materials (see figure 1).
WARNING:
ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.
Read and follow instructions exactly as shown. If instructions are unclear, do not proceed.
Contact a qualified electrician. Read all instructions before beginning. Proper wiring is
essential for safe operation of this fixture. When cutting or drilling into walls or ceilings, do not
damage electrical wiring, gas lines, or water lines. If any of the fixture or wiring components
are damaged, do not install fixture. Return to place of purchase.
For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are
provided on the U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before
1985 have supply wires rated 60° C. Consult a qualified electrician before installing.
NOTE: For fixture employing a grounded convenience outlet. This fixture employs a grounded
type receptacle and is not intended for connection to a two wire ungrounded source of supply.
Owner’s Manual
Indoor Lighting Fixture
Installation Instructions
WARNING
Turn off electricity to the mounting site before beginning installation.
Mounting instructions must be followed exactly as shown for the fixture to be safely
supported.
CLEANING AND CARE
To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can
discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to
clean this fixture.
NOTE FOR FIXTURES THAT ARE SOLID BRASS:
Your hand-crafted, solid brass lighting fixture has been coated with a durable, baked-on acrylic
lacquer which gives maximum protection against the weather. However, in time the brightness of
the brass will tarnish, giving way to an authentic old-world brass finish. To keep your solid brass
fixture looking new for years to come, regularly apply a good quality, non-abrasive car wax to all
metal surfaces, giving the fixture an extra protective covering.
ORDERING PARTS
Keep this manual for future reference, and in case replacement parts are needed. Available parts can
be ordered from place of purchase. Use exact wording from diagrams when ordering parts.

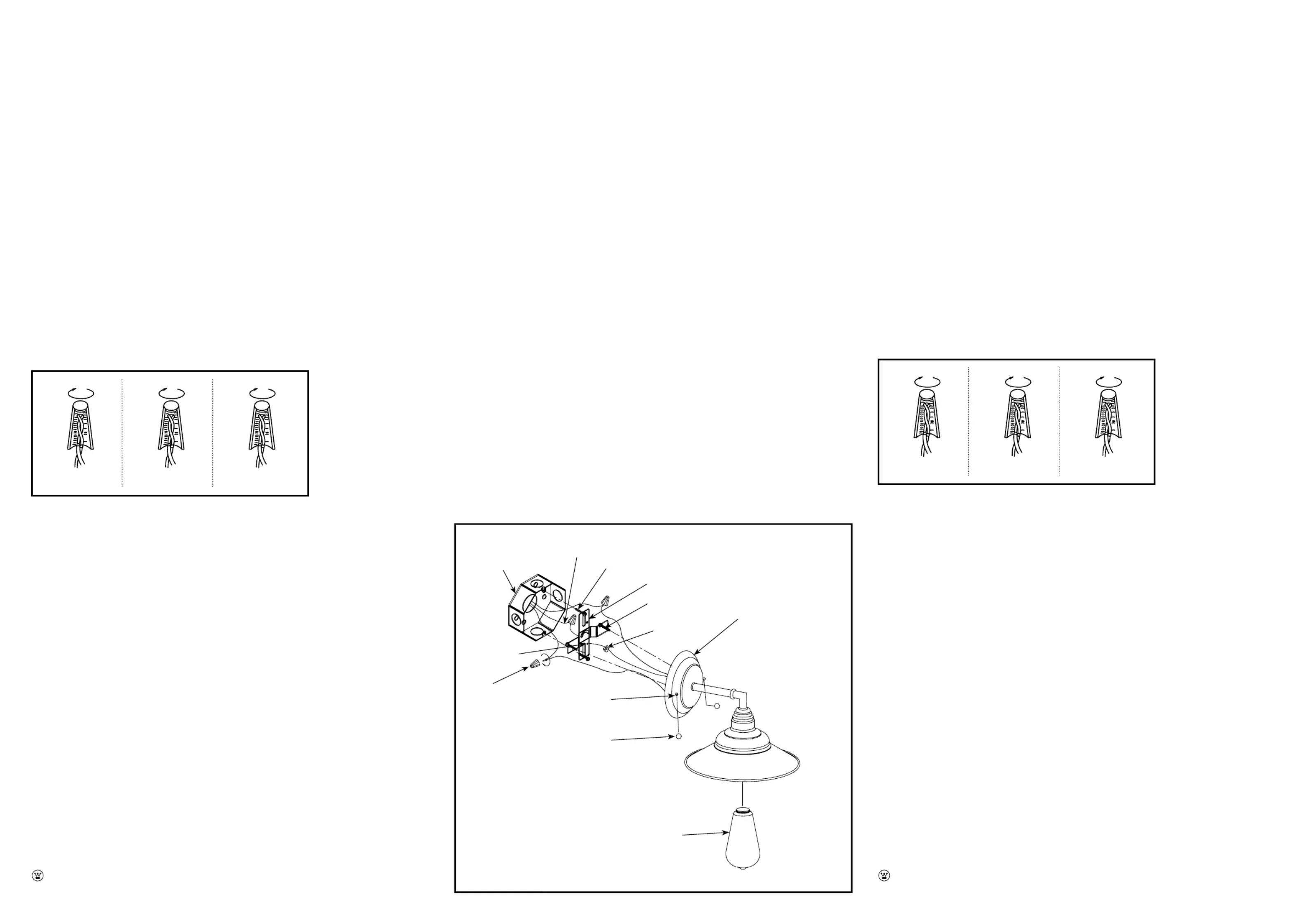

FIGURE 2.
FIXTURE
WIRES:
Black
HOUSE
WIRES:
Black
(Hot)
HOUSE
WIRES:
White
(Neutral)
HOUSE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
Bare
Copper
(Ground)
FIXTURE
WIRES:
White
Guide d’utilisation
Instructions d’installation
Appareil d’éclairage pour utilisation intérieure
GARANTIE LIMITÉE DE CINQ ANS
Cet appareil d’éclairage Westinghouse est assorti d’une garantie de 5 ans contre les défauts de
matériaux et de fabrication, qui entre en vigueur à partir de la date d’achat. La présente garantie se
Cette garantie ne porte ni sur les dommages survenant suite à une catastrophe naturelle (telle que la
foudre), ni sur la corrosion ou la décoloration des pièces; la garantie ne porte pas sur les dommages
survenant suite à une utilisation anormale, une installation impropre, une surtension de courant
électrique ou des actes d’un tiers.
Cette garantie ne porte pas sur les frais de démontage et de réinstallation du ventilateur.
Si ce produit ne fonctionne pas, pour une raison quelconque couverte par cette garantie, contactez-
nous gratuitement au numéro suivant : 1-888-417-6222.
MISE EN GARDE:
L’ÉLECTROCUTION POURRAIT CAUSER DE GRAVES BLESSURES PERSONNELLES.
Lisez ces instructions et suivez-les exactement comme illustré. En cas de doute, ne commencez
pas l’installation. Consultez un électricien qualifié. Lisez toutes les instructions avant de
commencer l’installation. Un câblage approprié est essentiel au bon fonctionnement de cet
appareil d’éclairage. Lorsque vous faites une entaille ou que vous percez un trou dans un mur
ou un plafond, n’endommagez pas les câbles électriques, les canalisations de gaz ou d’eau. Si
l’un des composants de raccordement ou de l’appareil d’éclairage est endommagé, n’installez
pas cet appareil d’éclairage. Retournez-le à l’endroit où vous l’avez acheté.
Convient uniquement aux appareils comportant un avertissement indiquant que l’appareil
d’éclairage est doté d’un fil supportant une chaleur de 75°C ou 90°C. (Ces avertissements se
trouvent sur l’étiquette U.L. et sur l’emballage de l’appareil d’éclairage.)
NOTA: Pour appareil d’éclairage avec sortie terre. Cet appareil d’éclairage utilise un réceptacle
muni d’un fil de terre et ne doit pas être branché à un bloc d’alimentation à deux fils non mis à
la terre.
LES INSTRUCTIONS D’ASSEMBLAGE DE L’APPAREIL D’ÉCLAIRAGE POUR UTILISATION INTÉRIEURE
Félicitations ! Vous avez acheté un produit de Westinghouse Lighting. Cet appareil d’éclairage a été
conçu pour durer de nombreuses années. Si vous avez des questions ou des commentaires à
nous communiquer, veuillez visiter www.westinghouselighting.com/contact-us.
NOTA : Déballez soigneusement l’appareil d’éclairage et les pièces. Assurez-vous que toutes les pièces
y sont avant de mettre l’emballage au rebut (voir fig. 1).
Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com
, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Lighting. All rights reserved. Made in China
SIDE
HOLE (I)
GROUND
WIRE
MOUNTING
SCREWS (D)
*OUTLET
BOX (E)
GREEN
GROUNDING
SCREW (H)
UNIVERSAL
MOUNTING
PLATE (C)
WIRE
CONNECTORS (G)
OUTLET BOX
SCREWS (F)
BACK PLATE
OPENING (J)
BACK PLATE (B)
CAP NUTS (A)
LAMP
*NOT SUPPLIED
Line art shown may not exactly match the
fixture enclosed. However, the installation
instructions do apply to this fixture.

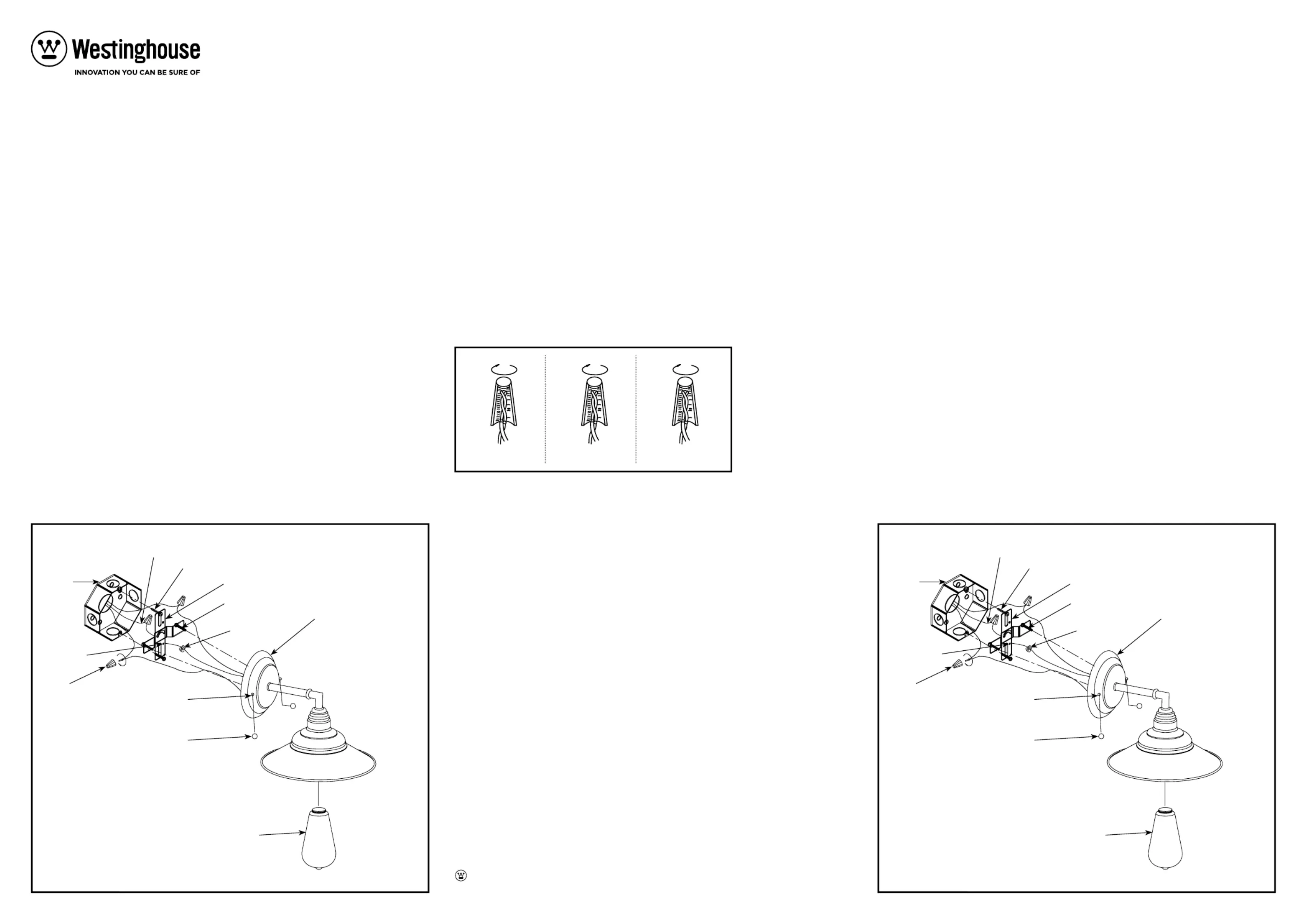

FIGURE 1.
FIL DE MISE
A LA TERRE
VIS DE
FIXATION (D)
VIS DE MISE
A LA TERRE
(VERTE) (H)
PLAQUE
DE FIXATION
UNIVERSELLE (C)
CONNECTEURS
DE FIL (G)
PLAQUE
ARRIERE (B)
ECROUS
CAPUCHONS (A)
LAMPE
TROU
LATERAL (I)
*BOITE DE
SORTIE DE
COURANT (E)
VIS DE LA BOITE DE
SORTIE DE COURANT (F)
OUVERTURE
DE LA PLAQUE
ARRIERE (J)
*NON FOURNI
Il est possible que le dessin illustré ici ne
soit pas la reproduction exacte de l’appareil
d’éclairage contenu dans la boîte.
Les instructions d’installation demeurent
cependant valables.
FIGURE 1.
