Side 1/8
Whale Compac 50
BP0350(B)
BP0352B
MH0360
MH0364

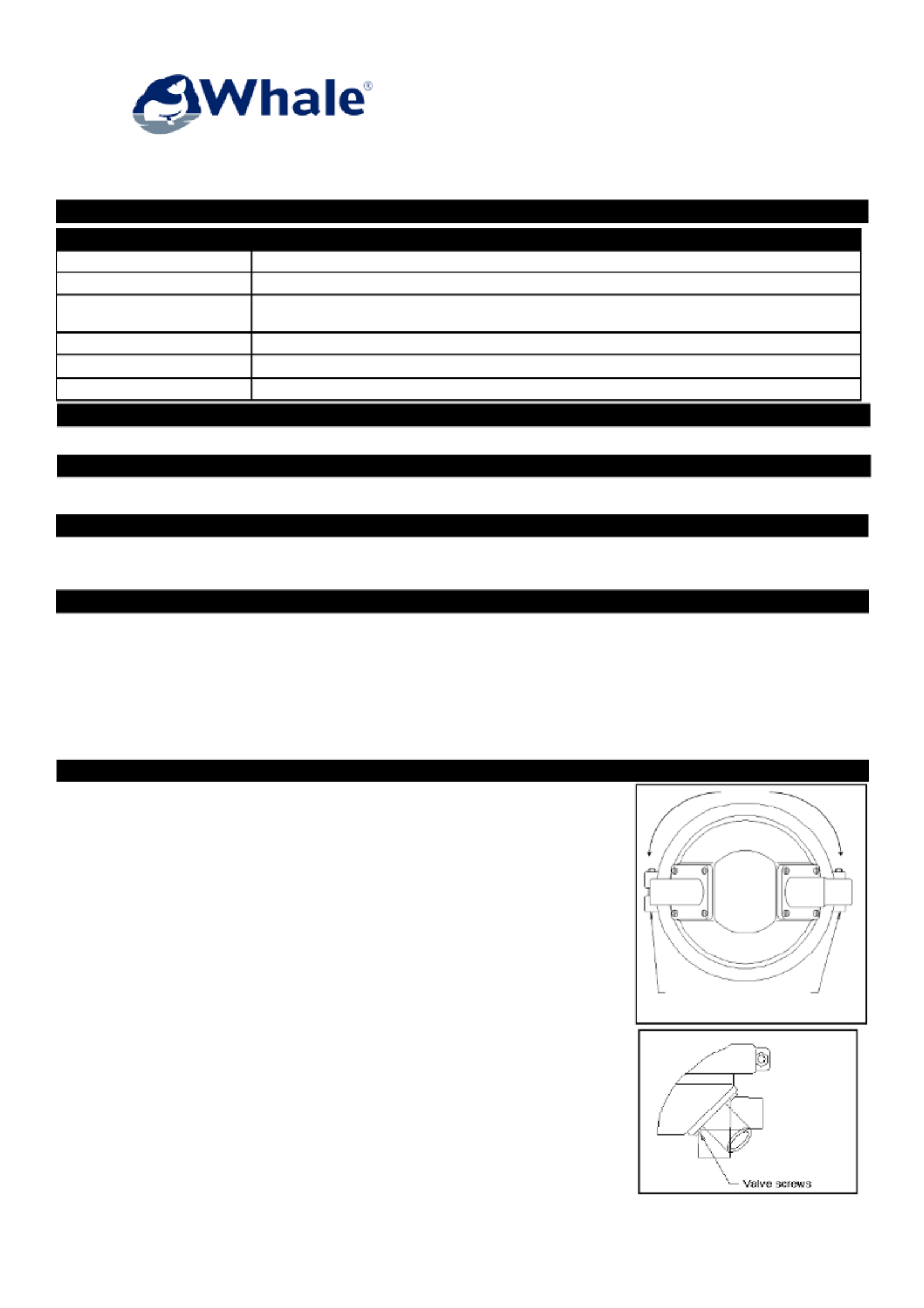

Page 2 English
Page 4 French
Page 6 German
CONTENTS
Whale Compac 50
BP0350(B), BP0352B, MH0360 & MH0364
2. TO THE USER
3. TO THE INSTALLER
Thank you for purchasing this Whale® product. For over 60 years, Whale has led the way in the design and manufacture of freshwater
and waste systems including: pumps, plumbing faucets, showers for low voltage applications. The company and its products have built a
reputation for quality, reliability and innovation backed up by excellent customer service. For more information visit www.whalepumps.com.
Read the following carefully before installation. WARNING: Please note that incorrect installation may invalidate the warranty.
Check that the product is suitable for the intended application, follow these installation instructions and ensure all relevant personnel read
the points listed below. Also ensure that these operating instructions are passed on to the end user.
4. APPLICATION
This Compac 50 is designed for installation in recreational marine vessels only as a manual bilge pump. If it is intended for any other
purpose or with any other liquid, it is the user’s responsibility to ensure that the pump is suitable for the intended use and, in particular, that
the materials are fully compatible with the liquids to be used. The Whale Compac 50 is not recommended for domestic applications.
5. WARNINGS
1. With all applications, it is important that a system of safe working practice is applied to installation, use and maintenance.
The electric supply must be turned off and water system drained prior to installation.
2. Not suitable for pumping fl ammable liquids, diesel, chemicals etc. Suitable for bilge water only.
3. NOTE: Bilge pump capacities may not be suffi cient to prevent fl ooding from rapid accumulation of water due to storms, rough
weather and/ or rapid leaks created by hull damage and or unsafe navigational conditions.
4. In order to securely fasten the unit, ensure that the mounting surface is a minimum thickness of 5mm (3/16”) (when fi tted with the
screws supplied). NOTE Do not screw directly to the hull - must be mounted on a bulkhead or on an additional board.
Contact Whale® Support team for further technical advice: Tel: +44 (0)28 9127 0531 Email: info@whalepumps.com
6. INSTALLATION
Note: Incorrect installation will invalidate warranty.
6.i Location
• Choose a position to mount the pump that is dry and away from standing water and is
free from obstacles.
• To maximize performance, mount in a position with the shortest possible pipe run lengths.
6.ii Installation
The Compac 50 is a covered diaphragm pump, designed specifi cally for low profi le installation
below deck or thru bulkhead. The pump chamber complete with inlet/outlet hose connections, can
be rotated through 360° (Fig. 1) allowing complete fl exibility in the choice of fl ow direction relative
to the handle position.
To change direction of pump fl ow: Slacken the clamping ring screws and rotate the pump
body to the desired positions. Re-tighten the clamping screws, (this can be adjusted even
after installation).
Inlet/Outlet Options: There are 4 possible hose directions for both inlet and outlet. These
can be combined to give 16 port orientations (see Fig 2).
To Change Inlet/Outlet Positions: Remove the 4 self-tapping screws from base of inlet/
outlet. Reposition the inlet/outlet, replace the 4 self-tapping screws and tighten.
Mounting the Pump
The Whale Compac 50 is provided with a deckplate. The hole positions are square, allowing a
choice of pump stroke direction, relative to the orientation of the deckplate.
1. Using the deckplate as template, mark off and drill 4 x ¼” (6 mm) holes and cut out a 3 3/8” (86 mm) hole, which should be
central to the 4 x ¼” (6 mm) holes. Round off the edge of the hole to allow easy mounting of the rubber gaiter.
2. Minimum deck thickness is 3/16” (5 mm). Deck can be reinforced up to a maximum of 5/8” (15 mm) by using a backing plate.
1. SPECIFICATION
Model Number BP0350(B) / BP0352B / MH0360 / MH0364
Weight 0.9 kg (2 lbs)
Hose Connections 25 mm (1”) Smooth Hose Connections
Materials Pump Body: Glass-fi lled Polypropylene, Clamp Ring: Acetal, Diaphragm, Valves and Seals: Nitrile®,
Operating Lever: Glass-fi lled Nylon, Gaiter: EPDM, Deck Plate Cover: PBT, Fasteners: Stainless Steel
Materials in contact with fl uid Glass-fi lled Polypropylene, Nitrile®, Stainless Steel
Maximum Suction Lift 3 m (10 ft)
Maximum Discharge Head 4 m (13.5 ft)
Clamping ring screws
Figure 1
Figure 2
