INSTALLATION AND

OPERATION MANUAL

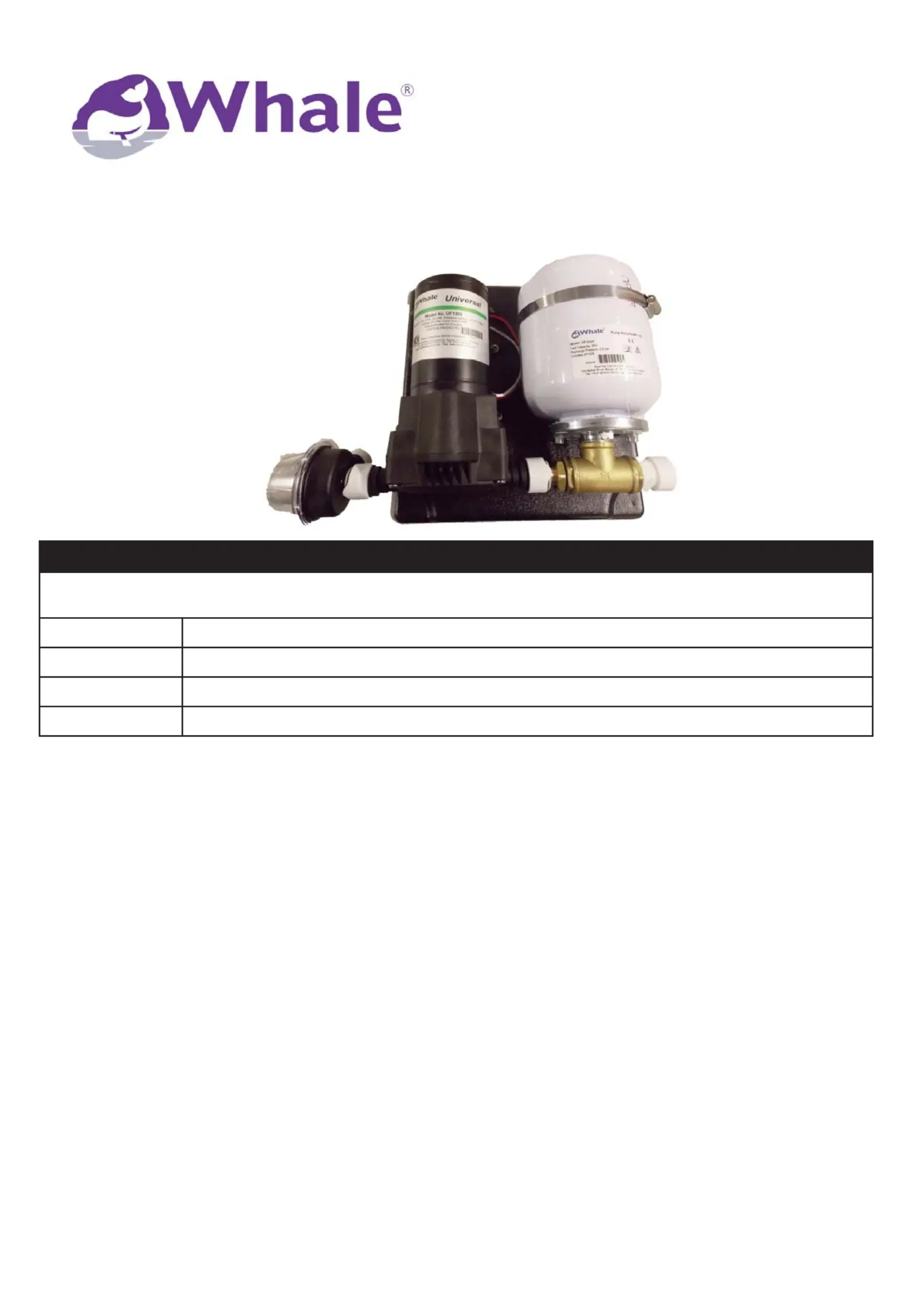

Whale®Pump Accumulator Kit

*The ‘B’ suffix indicates that a bulk code is available

Model Number Description

Accumulator Kits (2ltr Tanks)

UF2214 3.0 GPM (11.5 ltrs), 12 V d.c., 2 bar (30 psi), 15mm Quick Connect Connections

UF2215 3.0 GPM (11.5 ltrs), 12 V d.c., 3 bar (45 psi), 15mm Quick Connect Connections

UF2224 3.0 GPM (11.5 ltrs), 24 V d.c., 2 bar (30 psi), 15mm Quick Connect Connections

UF2225 3.0 GPM (11.5 ltrs), 24 V d.c., 3 bar (45 psi), 15mm Quick Connect Connections

INSTALLATION AND OPERATION MANUAL

Whale®Accumulator Kit

Thank you for purchasing this Whale® product. For over 60 years, Whale® has led the way in the design and manufacture of freshwater

and waste systems including: pumps, plumbing, faucets and showers for low voltage applications. The company and its products have built

a reputation for quality, reliability and innovation backed up by excellent customer service.

For information on our full range of products visit www.whalepumps.com

1. LIST OF CONTENTS 7. WARNINGS 13. WINTERIZING

2. SPECIFICATION 8. PARTS LIST 14. SERVICE SUPPORT DETAILS

3. PRINCIPLES OF OPERATION 9. OPTIONAL EXTRAS 15. TROUBLE SHOOTING

4. TO THE USER 10. INSTALLATION 16. PATENTS AND TRADEMARKS

5. TO THE FITTER 11. INSTRUCTIONS FOR USE 17. WARRANTY STATEMENT

6. APPLICATION 12. MAINTENANCE 18. EU DECLARATION OF CONFORMITY,

STANDARDS AND APPROVALS

List of Diagrams

Fig. 1 Marine Typical Installation Fig. 3 Connecting the Strainer Fig 5 Wiring Diagram

Fig. 2 Pump Orientation Fig. 4 Dual Tank System

The Whale Accumulator Kit is designed for marine vessels for reliable and smooth consistent flow. The pump accumulator kit provides

smooth flow from the system with reduced pump cycling. Please refer to the specifications (section 2) for the model range.

Please read the following carefully before installation. WARNING: Please note that incorrect installation may invalidate the warranty.

Check that the product is suitable for the intended application, follow these installation instructions and ensure all relevant personnel read

the points listed below. Also ensure that these operating instructions are passed on to the end user.

The Whale® Accumulator Kit is designed for installation in recreational vessels for saltwater or freshwater use, with 12 V d.c. or 24 V d.c.

electrical supply only. If it is intended for use for any other purpose or with any other liquid, it is the user's responsibility to ensure that the

pump is suitable for the intended use and, in particular, that the materials are fully compatible with the liquids to be used.

1. This pump is designed for supplying water in a marine vessel. If it is intended for use for any other purpose it is the

user's responsibility to ensure that the pump is suitable for the intended use.

2. Not suitable for pumping flammable liquids, diesel, chemicals etc. Only suitable for freshwater.

3. A Whale® strainer fitted on the inlet side of the pump to prevent any dirt/debris entering the pump must be

4. With all applications, it is important that a system of safe working practice is applied to installation, use and

maintenance. Ensure the electric supply is turned off and water system is drained before installation. In order to

securely fasten the unit, ensure that the mounting surface is a minimum thickness of 19mm (¾") when fitted.

5. NOTE: Do not Must bescrew directly to the hull. mounted on a bulkhead or additional board.

6. Pump CAUTION: not intended for continuous use.

7. WARNING: must comply Fire hazard. Wiring with applicable electrical standards and include a properly sized fuse or circuit

breaker. Improper wiring can cause a fire resulting in injury or death. Switch off the power while making connections. Suggested

wiring information is given as guidance only. For full information, refer to the USCG, ABYC and ISO regulations for marine

applications and wiring gauges, connectors and fuse protection.

All Whale® Accumulator Kits Qty 1 Whale® Accumulator Kit Qty 1 Whale® Strainer

UF2214 / UF2224 only Qty 1 Equal Straight Qty 1 Inline Check Valve

AK1316 Replacement Head Kit WF1530 Whale Aquasource Clear Water Filter 15mm

2. SPECIFICATION

1. LIST OF CONTENTS

Product Code UF2214 (B) UF2215 (B) UF2224 (B) UF2225 (B)

Pressure Pump UF1214 UF1215 UF1224 UF1225

Accumulator Tank Size 2 ltrs (0.53 US Gals)

Open Flow Rate (per minute) 11.5 ltrs (3.0 US Gals)

Voltage 12 V d.c. 24 V d.c.

Recommended Fuse Rating 10 Amp Automotive 5 Amp Automotive

Cut Out Pressure 2 bar (30psi) 3 bar (45psi) 2 bar (30psi) 3 bar (45psi)

Weight 3.9kg (8.59lbs)

Factory Pre-charge 1.5 bar (22 psi) 2.2 bar (32psi) 1.5 bar (22 psi) 2.2 bar (32psi)

Inlet and Outlet Size Whale® Quick Connect 15mm Female Connections

Materials in contact with Liquid Glass-filled Polypropylene, Santoprene, Nitrile®, Stainless Steel, Butyl

Minimum Wire Size 2.5mm² (13 AWG)

Maximum Head 20m (66ft) 30m (99ft) 20m (66ft) 30m (99ft)

Maximum LIft 3m (10ft)

3. PRINCIPLES OF OPERATION

4. TO THE USER

5. TO THE FITTER

6. APPLICATION

7. WARNINGS

8. PARTS LIST

9. OPTIONAL EXTRAS
