Important Safeguards/Symbols
Models Included
• WB5N
• WB5NL
• WB5N30
• WB5NB
• WB5NLB
Service Manual – WB5N Hot Water Dispenser
Wilbur Curtis Company, inC.
Symbols:
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
This equipment is designed for commercial use. Any servicing other than cleaning and routine
maintenance should be performed by an authorized Wilbur Curtis Company service technician.
• DO NOT immerse the unit in water or any other liquid
• To reduce the risk of re or electric shock, DO NOT open service panels. There are no user
serviceable parts inside.
• Keep hands and other items away from hot areas of the unit during operation.
• Never clean with scouring powders or harsh chemicals.
CAUTION: DO NOT
connect the unit to
hot water supply.
The inlet valve is not rated for
hot water.
CAUTION: Follow
this setup procedure
before attempting
to use this unit. Failure to
follow these instructions can
result in injury and/or void of
warranty.
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO.
6913 Acco Street,
Montebello, CA 90640-5403
For the latest information go to
www.wilburcurtis.com
Tel: 800/421-6150
Fax: 323/837-2410
CAUTION:
Equipment must be
installed to comply
with applicable federal, state,
and local plumbing/electrical
codes.
INSTALLATION
This Curtis unit is pre-set and ready to go from the factory.
System Requirements:
• Water Supply 20 – 90 PSI (MINIMUM FLOW RATE of 2 GPM)*
• Electrical: See electrical schematic.
3. Connect the unit to electrical outlet with appropriate amperage rating (See serial tag on ma-
chine).
4. Once power has been supplied to the unit, ip the toggle switch to the ‘ON’ position (located on
the rear of the unit), the water tank will begin to ll. When the water level in the tank reaches the
probe, the heating element will turn on.
5. During the initial setup, the heating tank will reach operating temperature in 60 to 70 minutes
(factory default 204°F).
* Expect ow rate from hot water faucet to be 1 GPM from WB5N and 2 GPM from WB5NL
NSF requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) is required so
that the unit can be moved for cleaning.
2. Thisunitmustbeinstalledwithadequatebackowprotectiontocomplywithapplicablefederal,
state and local codes.
3.Waterpipeconnectionsandxturesdirectlyconnectedtoaportablewatersupplyshallbesized,
installed and maintained in accordance with federal, state, and local codes.
NOTE:Awaterltrationsystemmustbeusedtohelpmaintaintrouble-freeoperation.Air must be
purged from the cartridge prior to connection to equipment. Inareaswithextremelyhardwa-
ter,wehighlyrecommendtheuseofaCurtisapprovedwaterlter.Forourfulllineoflters,please
log on to www.wilburcurtis.com.
SETUP STEPS
1. The unit should be level (left to right - front to back), on a secure surface.
2. Connect the water line to the water inlet tting on the rear of the unit. Water volume going to the
machine should be consistent. Use tubing sized sufciently to provide a minimum ow rate of
two gallons per minute.
For the latest specications and information go to www.wilburcurtis.com
2

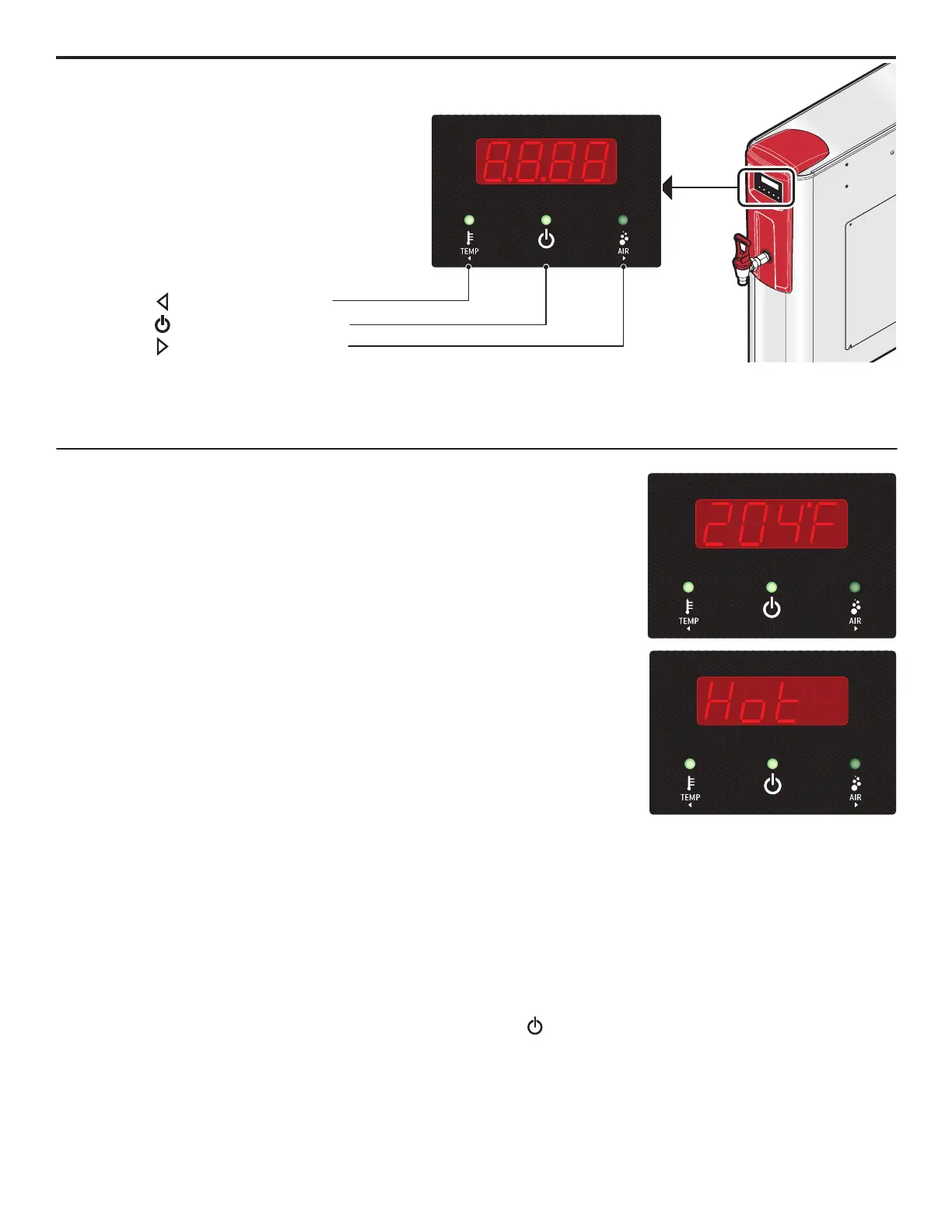

LED SCREEN DISPLAY
When the unit is on and not in programming mode, the UCM will stay on and the LED screen will
display the current tank temperature. The factory setting is 204ºF. In the UCM programming, there is
an option to change the screen display to read HOT instead of the set point temperature. You may also
change the temperature units from Fahrenheit to Celsius.
To Change the LED To Read HOT:
1. Press the left TEMP button and hold down for 5 seconds. The F will start ashing.
2. Continue holding the TEMP button, at the same time, press and hold the ON/OFF button for 5
seconds.
3. Release both buttons. The program is now changed and the LED screen will display HOT.
4. While in the HOT display, pressing the TEMP button for 1 second will display the tank temperature.
To Change the LED To Read In Celsius:
NOTE: When the LED screen is in the HOT display mode, you cannot switch between Fahrenheit and
Celsius. The LED screen must be in the Temperature display mode.
1. Press and hold down the TEMP button for 10 seconds. The temperature reading will change to
Celsius.
2. Release the TEMP button. The LED screen will display the temperature in degrees Celsius (default is 96ºC).
AERATOR
The aerator pump will automatically come on every 30 minutes. Aeration is factory set to run for 5 seconds. When the aeration is running, the display
shows the LED bars chasing from left to right.
ERROR CODES
ERR1=Overow.Waterlevelerror. ERR2 = Open sensor. Break in temperature thermistor circuit.
ENERGY SAVER
The Energy Saver Mode is Defaulted to off. To turn on the energy saver mode, press and hold both the ON and TEMP button for 10 seconds. Use
the scroll buttons TEMP ◄ and ► AIR to choose OFF, ON, or 140ºF. Press the button to select.
If “OFF” is selected, Energy saver is disabled.
If “On” is selected, 4 Hr. after last dispense, the temp will not be maintained at any temperature (it will eventually drop to room temp).
If “140F” is selected, 4 Hr. after last dispense it maintains Tank Temp at 140F.
When the Energy Saver Mode is on, you can turn it off by pressing one of the control buttons or by simply dispensing some water through the faucet.
UNIVERSAL CONTROL MODULE (UCM)
A FUNCTION
1. Press TEMP button for 1 second to check the set point tem-
perature.
2. Press TEMP button for 3 seconds to enter heating tank tem-
perature programming mode. The temperature in the heating
tank is adjustable from 140º to 210º F.
To change temperature setting:
a. Press to decrease temperature.
b. Press to set and exit programming.
c. Press to increase at 2º increments.
B FUNCTION
1. Press the AERATION button to pump air through the water in the heating tank.
2. Aerator pump will run as long as you hold down the button. Release button to stop.
I/O FUNCTION
1. ON/OFF button. Press once to activate control panel.
2. ON/OFF button used to set and exit programming.
PROGRAMMING
