VHF/UHF MODELS
HD7698 HD8200&
High Definition VHF/UHF Antennas
INSTRUCTION MANUAL
Register your product at winegard.com/myantenna
For help, email help@winegard.com
WARNING
:
Installation of the antennas near power lines is dangerous!
For your safety, follow the installation instructions.
POINT THIS END
TOWARD STATIONS
POINT THIS END
TOWARD STATIONS
NOTE: Unfolding elements procedure is the same for both
HD7698 & HD8200 antennas.
PARTS LIST
ASSEMBLY

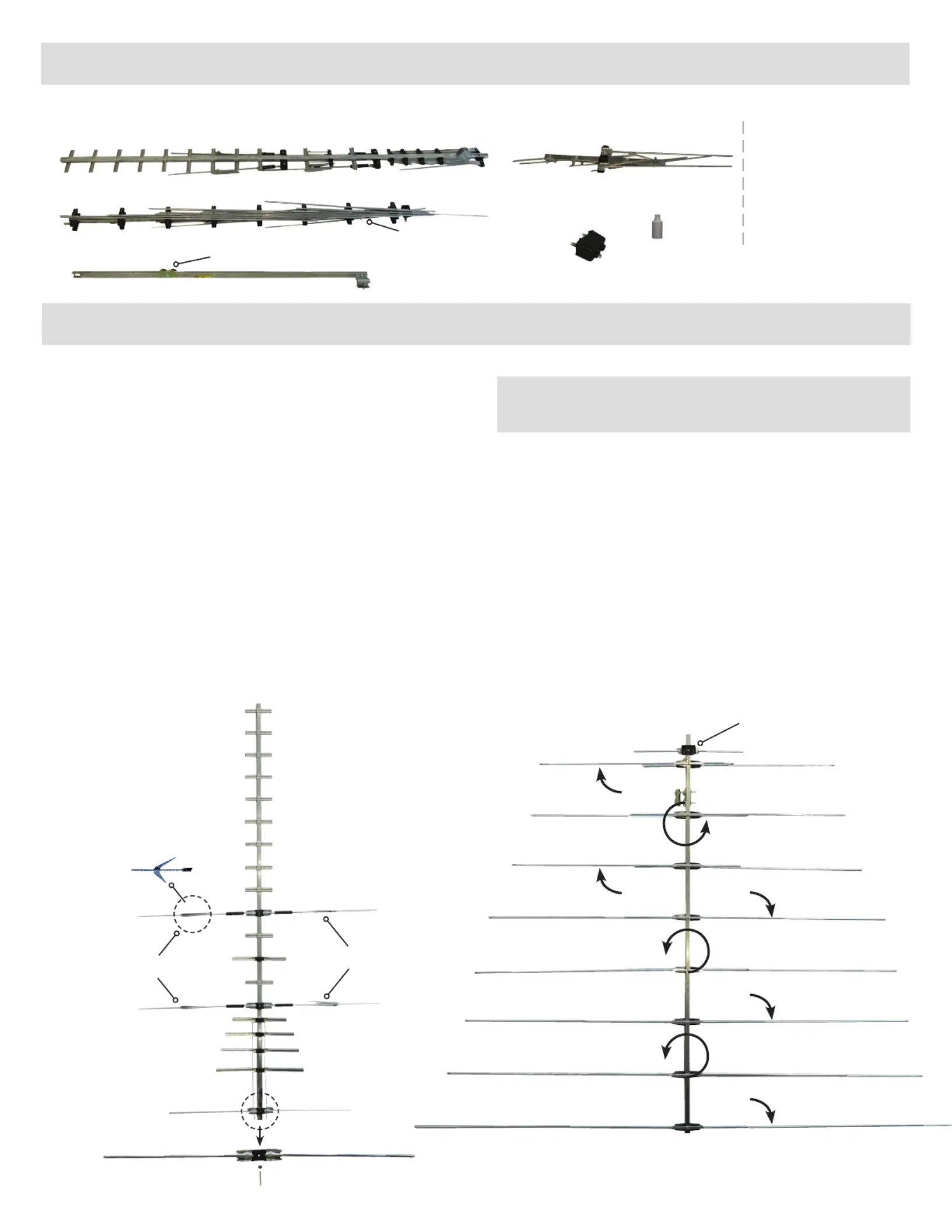

STEP 1 - Contents of Package
A. Remove all parts from the box and compare to parts list
to ensure nothing is missing and to become familiar with
the part names. See figure1.
STEP 2 - Front Section
A. Stand front section up vertically and unfold all elements
(in any order) until they snap into place.
B. Remove bolt, hex nut, and director element from the
front section boom. See figure 2.
C. Unfold the UHF directors. See figure 2.
D. Set front section aside being careful not to bend
the elements (laying it flat on the ground is the
best position).
Front Assembly
Rear Assembly
Mast Clamp
Mast Clamp
Boom Brace
Corner Reflector Assembly (2)
Flat Head Screwdriver
Phillips Screwdriver
Crescent Wrench or Pliers
Cartridge
Housing
Boot
TOOLS REQUIRED
(not included)
FIGURE 1
FIGURE 2 - Front Assembly
FIGURE 3 - Rear Assembly
UHF Director,
(Unfolded)
UHF Directors
UHF Directors
Director Element
Cartridge Housing
8 Up
6 Up
4 Up, Over
& Down
2 Up, Over
& Down
7 Down, Over & Up
5 Down
3 Down
1 Down
STEP 3 - Rear Section
A. Stand rear section up vertically with cartridge housing up
and facing away from you.
B. Alternately unfold elements per figure 3 in direction
of arrows until they lock into place in the black plastic
blocks.
C. Spin the rear section around so the cartridge housing is
now facing you. Unfold the remaining elements in the
same order. See figure 3 for completely unfolded rear
section.
