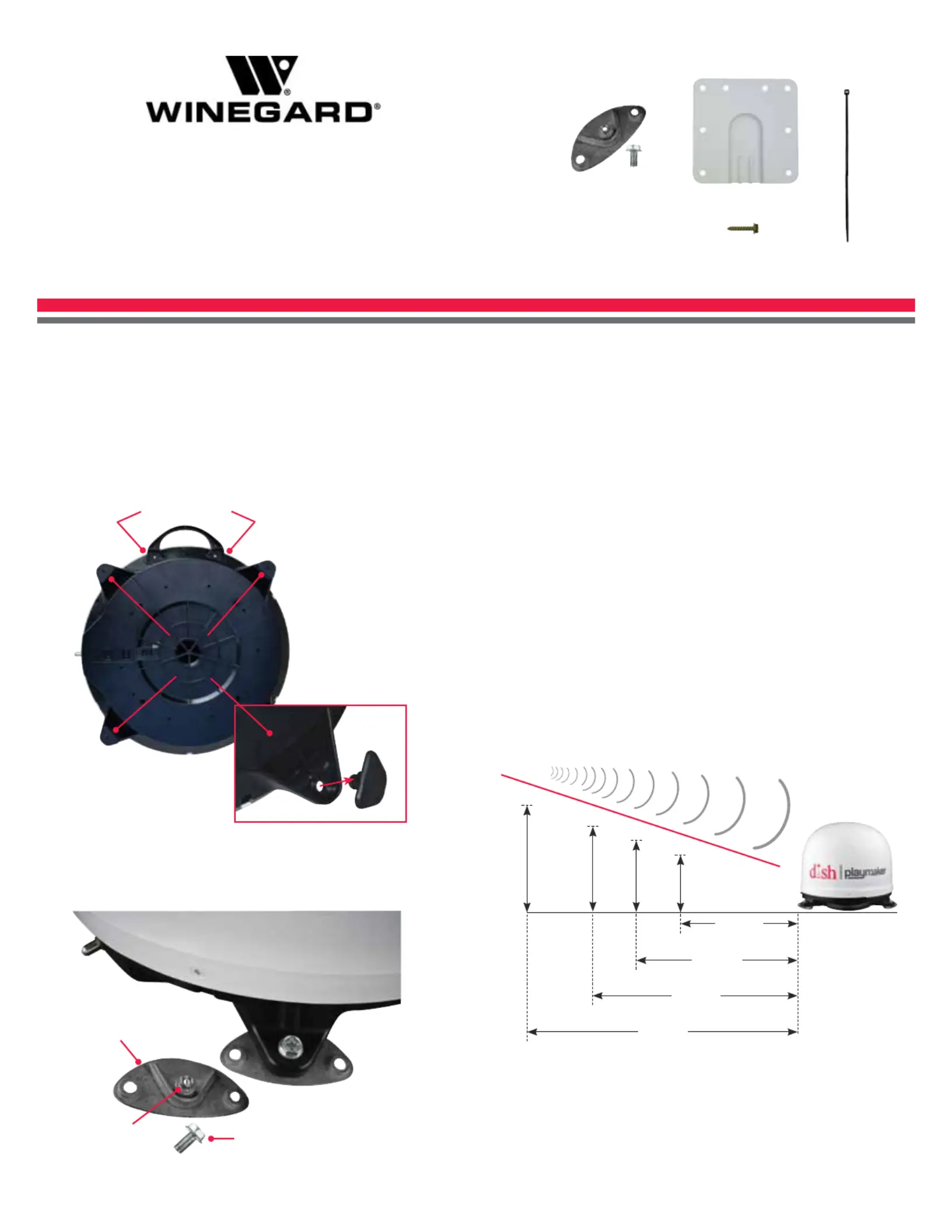

Installing the Mounting Feet

1. If the handle has been installed on the antenna, remove the

screws holding the handle to the antenna with a Phillips

screwdriver, and remove the handle.

2. Pull off the rubber foot pads from the bottom of the four

antenna feet.

3. Insert the threaded post up through the hole of each

attached foot, and with a Phillips screwdriver, tighten a

screw into each.

Installing the Antenna

1. Do not attempt to install the antenna in the rain or under

any wet conditions. Install in dry conditions only.

2. For best performance and to reduce signal acquisition

time, park the vehicle on a level surface that is free of

obstructions such as trees or large buildings. Make sure

you have a clear view of the southern sky.

3. Select a level spot on your roof for installation. Level the

base front-to-back and side-to-side. If the base is not

level, the antenna may require more time to locate the

correct satellite or may not locate the correct satellite.

4. Ensure proper distance to other rooftop equipment

is maintained. Be sure no roof-mounted equipment

is blocking the satellite “line of sight”; see clearance

requirements below.

Mounting foot (4)

with Screw (4)

Cable entry plate

Cable tie (2)

Mounting

screw (20)

Remove the four

rubber foot pads

Remove Handle

Threaded Post

Screw

Attached

Foot

Mounting Foot

18.8 in.

24.9 in.

31.1 in.

15 in.

40.3 in.

8 in.

12 in.

10 in.

Obstruction Height

Minimum Distance to be Maintained from Antenna

Signal Obstruction Chart

Roof Mount Kit RK-4000

For a complete list of compatible antennas, visit

www.winegard.com/mounts

For help, email help@winegard.com

or call 1-800-788-4417

2452390

Rev0 5-17

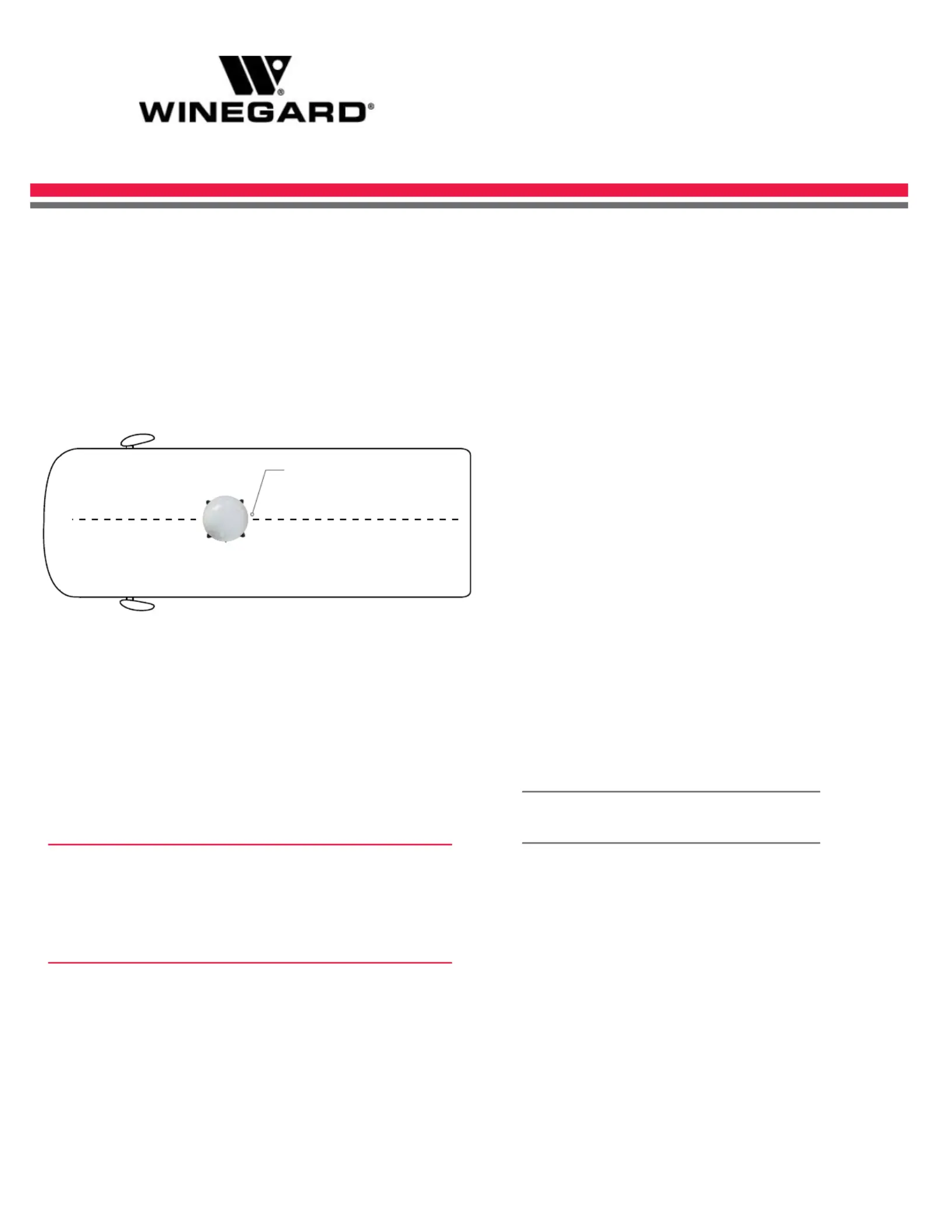

5. After selecting a location for the antenna, make sure

that the centerline of the antenna is on or parallel to the

centerline of the vehicle; the centerline of the antenna

runs through the point between the two feet where

cable connections are located.

6. Position the antenna with cables exiting toward the rear

of the vehicle.

7. To ensure proper installation, check that the distance from

the edge of the roof to any foot is at least twelve inches.

8. Place the unit on the roof in its permanent location, and

mark around each base foot.

9. Clean the roof area where the base feet will attach to the

roof; do not erase your marks.

10. Check with your vehicle manufacturer for approved

sealant, and put approved sealant in the areas marked for

the base feet. Place the base feet on top of the sealant.

11. Before using the supplied mounting screws, check

with your vehicle manufacturer for any special screw

requirements. Screw down with two screws for each foot.

After all base feet are secured to the roof, put sealant

around the edge of feet and over screws.

12. Decide the best location for coax cable(s) to enter the

vehicle. Consider the location of the receiver(s).

13. Drill a hole in the roof for the coax cable(s), and push

the cable(s) inside, making sure the coax cable(s) are

accessible from the area where the receiver(s) will be

located.

14. For the Playmaker, connect a coax cable from the “Satellite

In” port of the receiver to the port on the antenna.

For the Playmaker Dual, connect a coax cable from the

“Satellite In” port of the primary receiver to the main

port on the antenna. If connecting the antenna to two

receivers, connect a second coax cable (not provided) to

the secondary port on the antenna.

15. Place the provided cable entry plate over the hole and

cables. Screw the plate in place with eight mounting

screws. Seal the plate and screw holes with approved

sealant (not included).

16. Secure excess cable with the provided cable ties.

Securing every 12–16” should eliminate any

unnecessary cable movement.

Installing the Antenna (cont)

WARNING

It is not recommended to mount the antenna

directly to a vehicle without using the roof kit

accessory. Failure to follow proper installation instructions could

cause damage and/or potential injury.

The DISH Playmaker / DISH Playmaker Dual are NOT intended to be

mounted onto over-the-road trucks or for marine applications.

NOTE

You will use 16 screws for installation.

The kit includes 20.

Front of Vehicle

Cable connection(s)

facing back of vehicle

Disclaimer: Although every effort has been made to ensure that the information in this manual is correct and complete, no company shall be held liable for any errors

or omissions in this manual. Information provided in this manual was accurate at time of printing. DISH and Playmaker are registered trademarks of DISH Network

L.L.C. Winegard is a registered trademark of Winegard Company.

Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601 • 1-800-288-8094 • Fax 319-754-0787 • www.winegard.com

Roof Mount Kit RK-4000
