Side 1/5

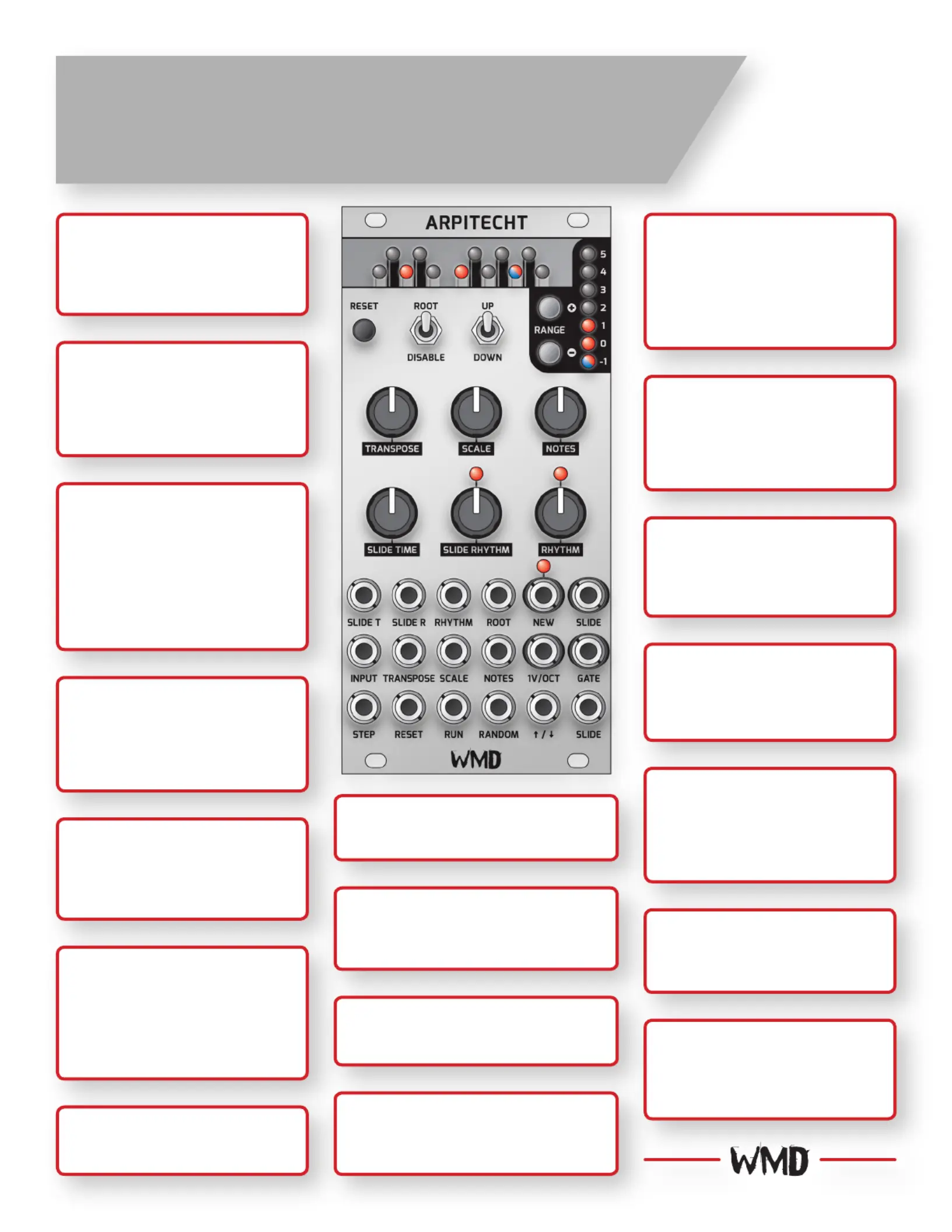

TRANSPOSE: In the middle posi-

tion, this knob is at 0, clockwise

transposes up to +12 semitones,

and counter-clockwise transposes

-12 semitones. 1V/OCT, -1V to +1V.

RESET: This button, whose func-

tion is also accessible through the

RESET input, returns the sequence

to the ﬁrst step of the arpeggio.

ROOT ENABLE: This switch dis-

ables the root note of the scale.

The jack is normaled high, and

the root switch will invert the CV

when down.

DIRECTION: Change the direction

of the arpeggiation here. The

middle position of the switch is UP

and DOWN. When the CV jack is

used, the switch is disabled, and

direction is directly controlled by

the voltage on the jack. High for

UP, low for DOWN.

SCALE: Selects between 16 differ-

ent scales, beginning with major

and ending (all the way clockwise)

with chromatic.

NOTES: The Arpitecht features

64 note masks that allow you to

select which notes in the scale

will be incorporated into the

arpeggiation.

RHYTHM: The RHYTHM knob

selects between 32 built in gate

sequences. Together with SLIDE

RHYTHM, a world of rhythmic

variation is right at your ﬁngertips.

RANGE: The two RANGE buttons

select the overall octave spread

of the arpeggiation or quantized

CV, while the accompanying LEDs

display the current position (blue)

and range (red).

SLIDE TIME: Controls the rate of

the analog slide circuit when trig-

gered by either the internal SLIDE

RHYTHM or the SLIDE input.

SLIDE RHYTHM: Like RHYTHM,

this knob allows you to apply one

of 32 automatic slide rhythms to

your sequence. Instant acid.

NEW OUT: The NEW output deliv-

ers a trigger every time the note

changes.

RUN: This input allows the step input to

advance. It is normaled high.

STEP: A pulse here will advance

the arpeggio to the next step.

RANDOM: When high, the next step will

be randomized within the scale, mask,

and range.

INPUT: Quantize CV signals by

plugging in here. This also serves

as the arpeggio start note. Chang-

ing the voltage here alters the

note at which the arpeggio begins,

and resets step to zero. 0-5 Volts.

SLIDE OUT: Gate for when a slide is

active from SLIDE RHYTHM or SLIDE

input.

1V/OCT OUT: -1 to 6V compensated/

buffered output. GATE OUT: Output that combines

the RHYTHM PATTERN, pulse

width of the STEP input, and held

SLIDE gates.

ARPITECHT

RHYTHMIC ARPEGGIO GENERATOR AND QUANTIZER

Depth: 30mm (with cables)

Power: +70mA, -35mA (+84mA, -48mA with Triad)

All CV Inputs: 100k ohm impedance

CV Outputs: (including Triad): Buffered 100 ohm impedance

Automatic load compensation

Gate Inputs: 50k ohm Impedance

Gate Outputs: 10V, 470 ohm impedance

CV inputs sum with knobs. Full sweep is 5V

Input Range: 0-5V (Transpose: +-1V)

Gate/Logic Inputs: 2V threshold Schmitt Trigger

Output Range: -1 to 6V. 14 bit

Triad Note Output Range: 0-4V. 12 bit

Inversion CV Input Thresholds: 1.25V and 2.5V

Firmware upgradeable via USB

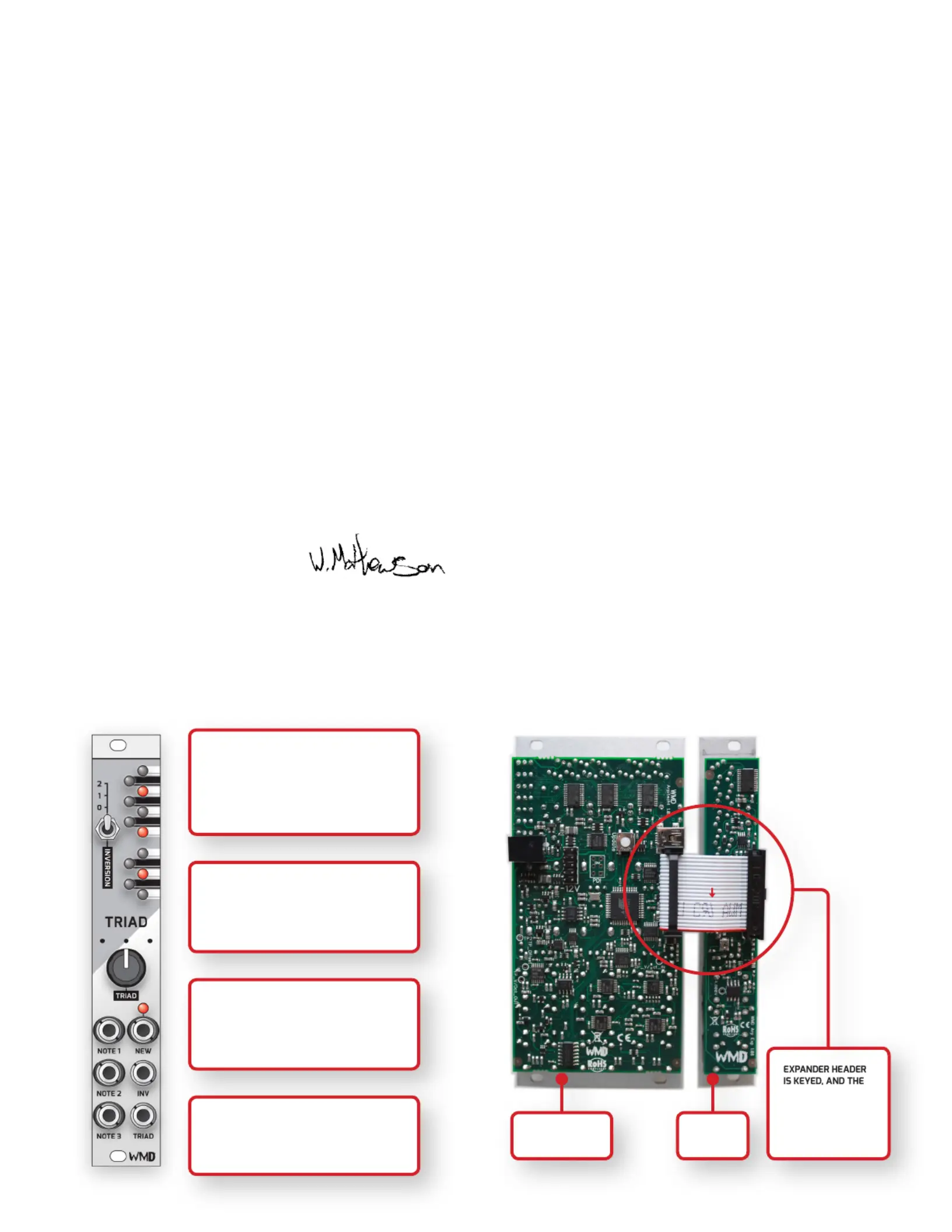

TRIAD EXPANDER

SPECSINTRODUCTION

INVERSION: Transposes the lowest

note up an octave.

0: No transposition.

1: Transpose note 1.

2: Transpose notes 1 and 2.

TRIAD: CV/Knob for selecting the

group of three notes from the

scale. Follows Scale and Transpose

on the Arpitecht.

NOTE 1-3: Buffered CV outputs for

each note in the triad. NOTE 1 is the

lowest note from the display.

NOTE 3 is the highest.

NEW: Trigger output when the

TRIAD is changed. No trigger for

inversion changes.

ARPITECHT TRIAD

RED STRIPE

The Arpitecht started as a quantizer that used only CV to determine

scales and notes. Immediately, it was super playable and fun to ex-

plore. But tying up a lane just for sequencing/quantizing seemed like

a waste of good space.

I added a clock input so the Arpitecht could step through its own

notes. This let us do nice changes with that same single-lane se-

quencer, running slower. The concept for the base module was 95%

done on the ﬁrst prototype. Reﬁnement took eight more revisions.

Coding and revisions took the better part of a year as I wrote and re-

wrote parts of the ﬁrmware to be faster and as I subtly improved

the interface. A couple full re-starts took place as well.

Then, once it was nearly done, I heard, “What if it could do chords?”

from the design room... Fortunately there was a single ADC input

left, and the Triad came to be after a few prototypes and lots of

coding.

Once the ﬁrst bit of code was running on the Arpitecht, it was in-

stant fun. Now that it’s ﬁnished, it’s instant techno, or avant garde

jazz, or chip-tune trill chords.

Thank you for purchasing an Arpitecht, I hope you enjoy it as much

as we do.

INCLUDED EXPANDER

CABLE SHIPS WITH

A DUMMY PIN TO

PREVENT REVERSED

CONNECTION
