HP/BP/LP (LEDs & BUTTON): Cycle

through the 4 POLE frequency re-

sponses. The LED changes imme-

diately but the audio will wait until

the user has made their selection.

Holding the button will delay the

audio change until release.

FM: Inverting attenuator for

scaling the signal at the FM input

jack. Input is exponential and

controls lter cutoff.

V/OCT: Calibrated exponential CV

input for controlling lter cutoff in

the classic keytracking style.

PING: Sending a gate or trigger

into ping generates a fast decay

envelope emulating the response

of a vactrol.

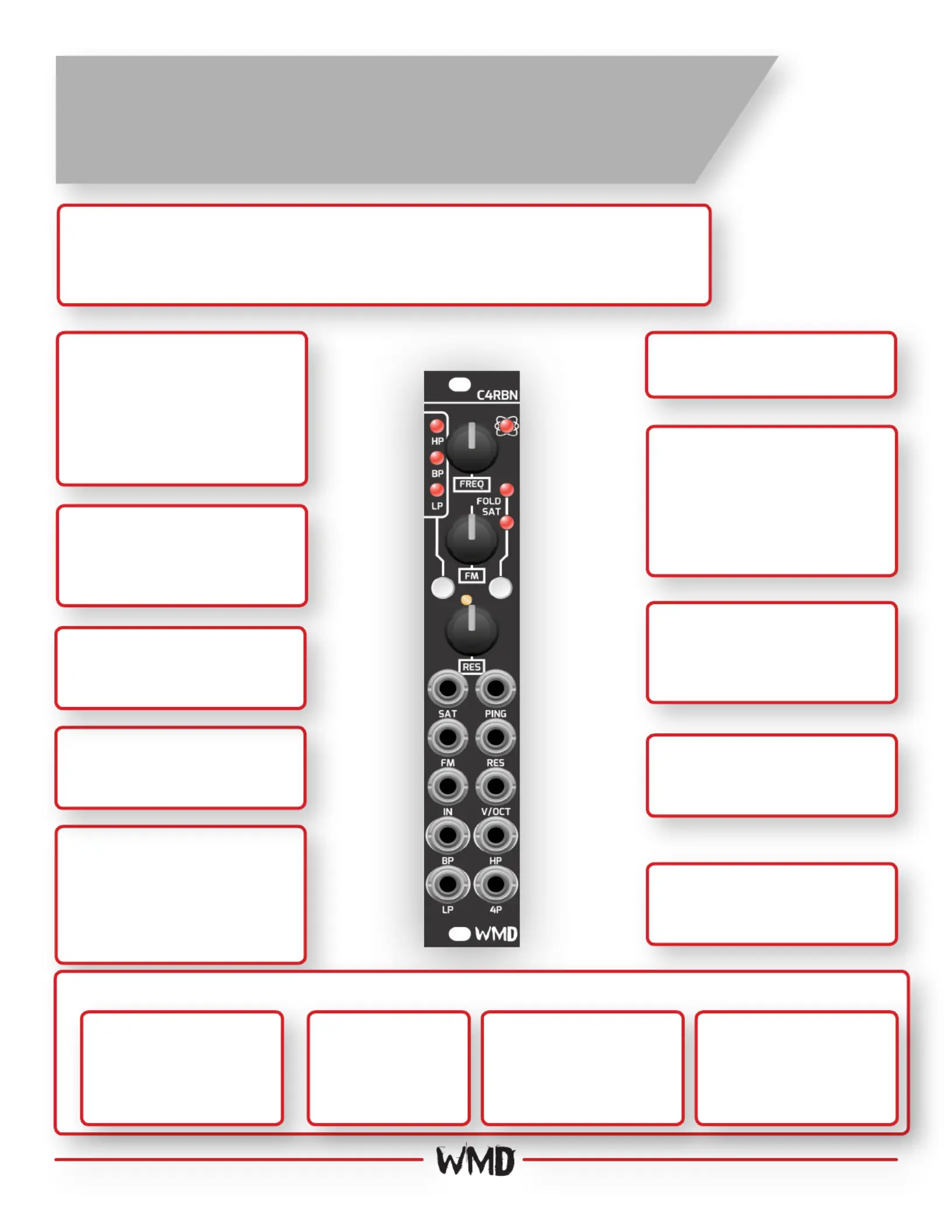

C4RBN

4/2-POLE STATE-VARIABLE FILTER W/ WAVEFOLDING

LP/BP/HP/4 POLE: LP, BP, and HP

are the respective outputs of the

rst 2-Pole lter. 4P is the output

of the 2nd, series, 2-Pole lter with

selectable frequency response and

output wavefolder.

FREQ: Manual lter cutoff

frequency control. 2.5Hz to 10kHz

FOLD/SAT (LEDs & BUTTON):

Press this button to toggle the 4P

output wavefolder. The FOLD LED

will be lit if it is enabled. Hold this

button to cycle through 4 levels of

input saturation. The current level

is indicated by the SAT LED.

RES: Manual and CV control of

lter’s resonance. Self oscillates

above 3’Oclock.

SAT: Analog CV input for the input

saturator. Offers greater control

over the saturation level.

C4RBN builds on WMD’s history with state-variable lters adding interface renements and

improved warm environment stability for live performance and beyond. A novel input saturation

circuit and the output wavefolder from WMD’s classic SYNCHRODYNE lter pair together to push

the timbral exibilty to the next level. C4RBN is the building block to life in your eurorack.

IN: Audio input passes through the

input saturator before entering the

rst 2-Pole lter.

SPECS:

Size: 4hp

PCB: 112mm

Depth: 38mm (with cables)

Power: +92mA, -82mA

Memory: 1 save / minute

Audio Input:

100k ohm impedance

20Vpp range

V/Oct Input:

82k ohm impedance

Temperature Compensated

CV Inputs:

>100k ohm impedance

Filter Outputs:

1k ohm impedance

20Vpp range
