CV INPUT SECTION - CV Inputs for

Level and Pan control over each

channel respectively.

LEVEL expects a unipolar (0-5V)

signal, the channel fader acts as an

attenuator.

PAN expects a bipolar signal (-5V

to +5V), the pan pot acts as an

offset.

OUT - Master stereo outputs. This

s where the entire mix comes

together. Level controlled by the

MASTER knob.

MONO OUTPUT - The entire mix is

summed to mono then sent out of

this output. This output is depen-

dent of the MASTER knob’s level.

Sum all inputs to mono to check

your mix or to simplify your out, or

to route to sub woofer amps.

CUE OUTPUT - Unity gain sum of

all cued channels. Not affected by

the CUE MIX knob.

PHONES OUTPUTS - Stereo output

with built in headphone ampliﬁer

n both 3.5mm and ¼” conﬁgura-

tions. No adapter? No problem.

Collaborating? Have no fear, both

outputs work simultaneously.

Output source is determined by the

CUE MIX knob, level from the CUE/

PHONES knob.

MONO AUDIO INPUTS - Channels 1-6 each feature two mono

inputs that can selected or summed via the 3-way toggle switch

(A/B) in the channel strip section.

STEREO AUDIO INPUTS - Channels 7 & 8 are both

true Stereo channels with two inputs each. Each

input is routed to the left and right master outputs.

Channels can be mono if only the left input is used.

AUX I/O SECTION -

AUX RETURN - Two mono, unity

gain inputs for returning signals

from the Auxiliary outputs or any

mono audio source. Sums to the

main mix at unity, mono to stereo.

AUX OUTS - Mono output for rout-

ing signals to external gear via the

AUX control for each channel.

AUX CV INPUTS - Control the mas-

ter level of the AUX outputs with

CV.

MIX IN - Stereo

unity gain inputs

for adding a sub-

mix from another

mixer or external

audio source.

SEND OUTPUTS - Stereo send for routing to external audio processors

such as a bus compressor.

RETURN INPUTS - Stereo unity gain inputs for returning audio signals from

external audio processors or any stereo external audio source. Plugging in

here will cut the main signal going to the outputs.

AUX SWITCH - Selects

which AUX to send to.

Middle position is off.

AUX KNOB - Attenuates

the amount of each

channel’s signal being

sent to the AUX out.

PAN KNOB - Left

or Right? The

decision is yours.

Pan position is

visually indicated

by PAN LEDs.

PRE I POST I X SWITCH - Select whether you’d like the chan-

nel to be sent to the aux before or after the position of the

fader. disregards fader level meaning the signal is sent PRE

to the aux attenuator at unity even if the fade is all the way

down. When switch is set to POST, the signal sent to the aux

is dependent of the fader’s position. The middle turns off the

AUX send for that channel. Why two ways to mute the AUX

for each channel? Set and forget one, perform with the other!

FADER - Level con-

trol from -inﬁnity

(symbol) to +5dB.

Below -30dB, the

signal is cut com-

pletely to eliminate

bleed from the

signal path.

DBU METER - Level of the internal

Mix bus. This is not affected by the

MASTER knob.

GAIN KNOB - Attenuate or boost

the incoming signal up to 12 dB.

A I AB I B SWITCH - Use this switch

to select which input you will hear

on that channel. AB Sums the two

inputs together at unity gain.

PM MUTES EXPANDER PM CHANNELS EXPANDER

SPECIFICATIONSWHAT DOES IT DO?

PM MUTES Allows you to directly

mute any channel or group of

channels instantly. It also adds

CV control over channel 1-4’s AUX

sends.

INPUTS - Two sets of

Left and Right inputs

for each stereo channel.

Use Left for mono.

A / B SWITCH - Use this

switch to select which

set of inputs you will

hear on that channel.

AB Sums both sets of

inputs together at unity

gain.

CV INPUTS - Voltage

Control over Gain, Level,

Pan, and the Aux Send

level for both channels

PERFORMANCE MIXER:

Size: 40HP wide, 45mm deep

Power consumption: +450mA, -430mA

Channel gain (1-6): +-12dB

Fader level: OFF to -30dB to +5dB gain

Headphones: 10dBV High Quality Stereo Output

PM MUTES EXPANDER:

Size: 6HP wide, 45mm deep

Power consumption: +20mA, -5mA

PM CHANNELS EXPANDER:

Size: 10HP wide, 45mm deep

Power consumption: +120mA, -120mA

With the renaissance of modular

in full swing, people are playing

out more and still lugging big

consoles to gigs. Most of these

boards are not ideal for modular,

let alone live patching.

The WMD PERFORMANCE MIXER

combines a traditional four bus

console with a DJ mixer and adds

CV over nearly everything. The

PM gives you fast control over

your signal ﬂow with an intuitive

interface to make live patching

on stage or in the studio predict-

able and on point.

The Cue system and selectable

input routing allow patches to be

tested before going to the mains

giving you conﬁdence during im-

provisation.

The signal path is extremely

clean and quiet, with VCAs that

close completely, and without

popping. The faders are like a

warped “S”, giving a natural re-

sponse. Panning is equal power

that fully closes on full rotation.

The inputs and gain circuit can

be overloaded nicely, without

fear of damage or bleed. You can

blast the main mix hard, it will

clip but doesn’t get nasty until

you really push.

The PM MUTES expander groups

the mute buttons for channels

1-8, 9-10 (channels expander),

and Aux 1 and 2. The expander

also provides Aux send level for

channels 1-4.

Eight channels (two stereo) pro-

vide enough room for drum mix-

es and multiple voices. If eight is

too few, you can sum another

mix directly with the PM’s main

mix. There is also a stereo PM

CHANNELS expander module.

AUX SEND CV - Independent CV

control over the aux send level of

the ﬁrst 4 channels on the mixer.

Aux knobs become offsets for CV.

MUTES - Push to mute. Button

turns red when channel is muted.

COMBO - Mute or unmute multiple

channels at once by holding this

button and selecting which chan-

nels you’d like to mute. Action will

occur on release of the COMBO

button.

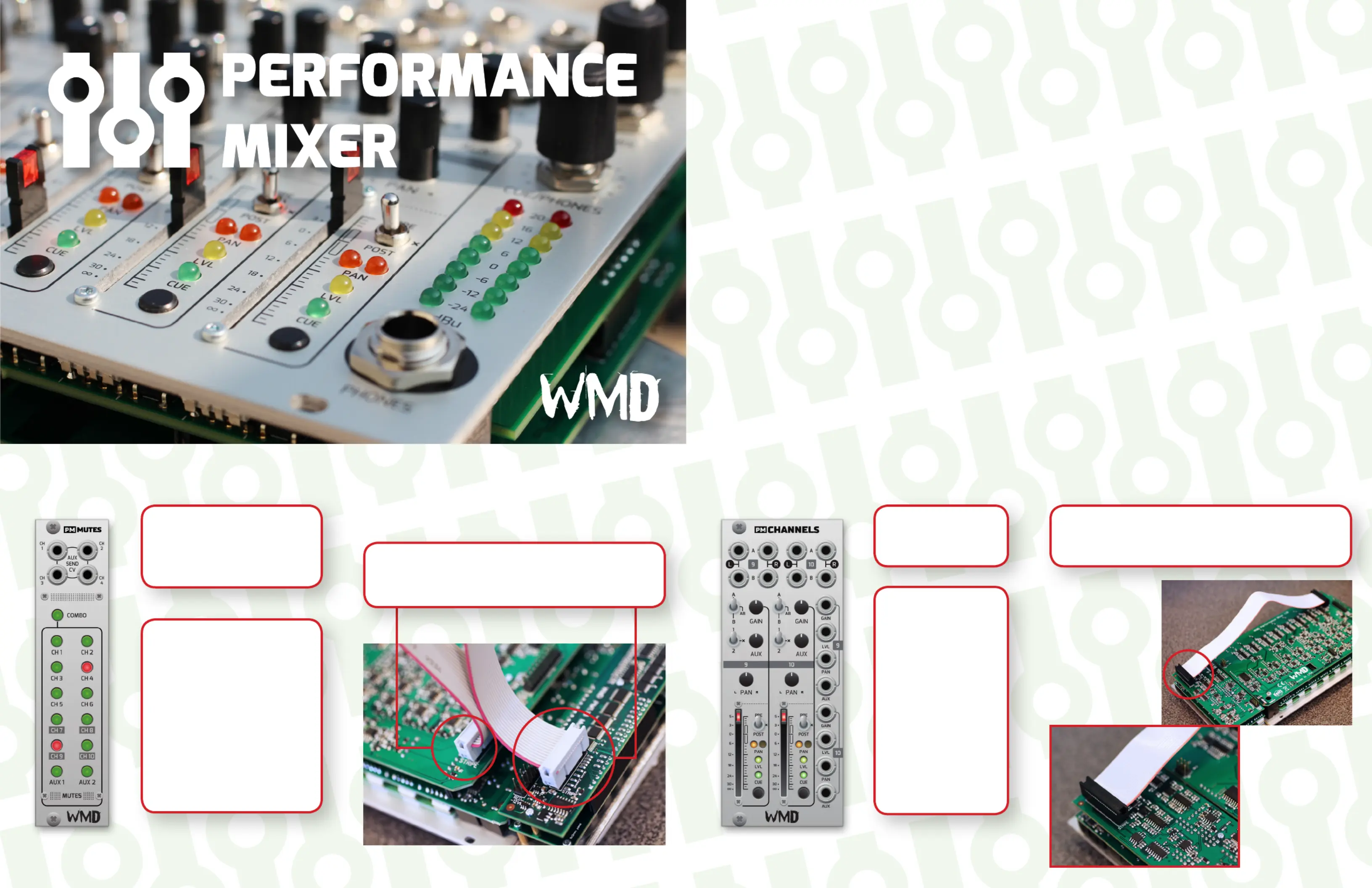

Simply attach the included cable to the 16-pin connectors

on the bottom of the PM MUTES and the bottom right of the

PERFORMANCE MIXER, keeping the red stripe down.

Simply attach the included cable to the 20-pin connectors

on the upper left of the PM CHANNELS and the top right of

the PERFORMANCE MIXER, keeping the red stripe down.

PM CHANNELS puts

two more stereo chan-

nels at your ﬁngertips.

Produkt Specifikationer

Mærke:	WMD
Kategori:	Ikke kategoriseret
Model:	Performance Mixer
